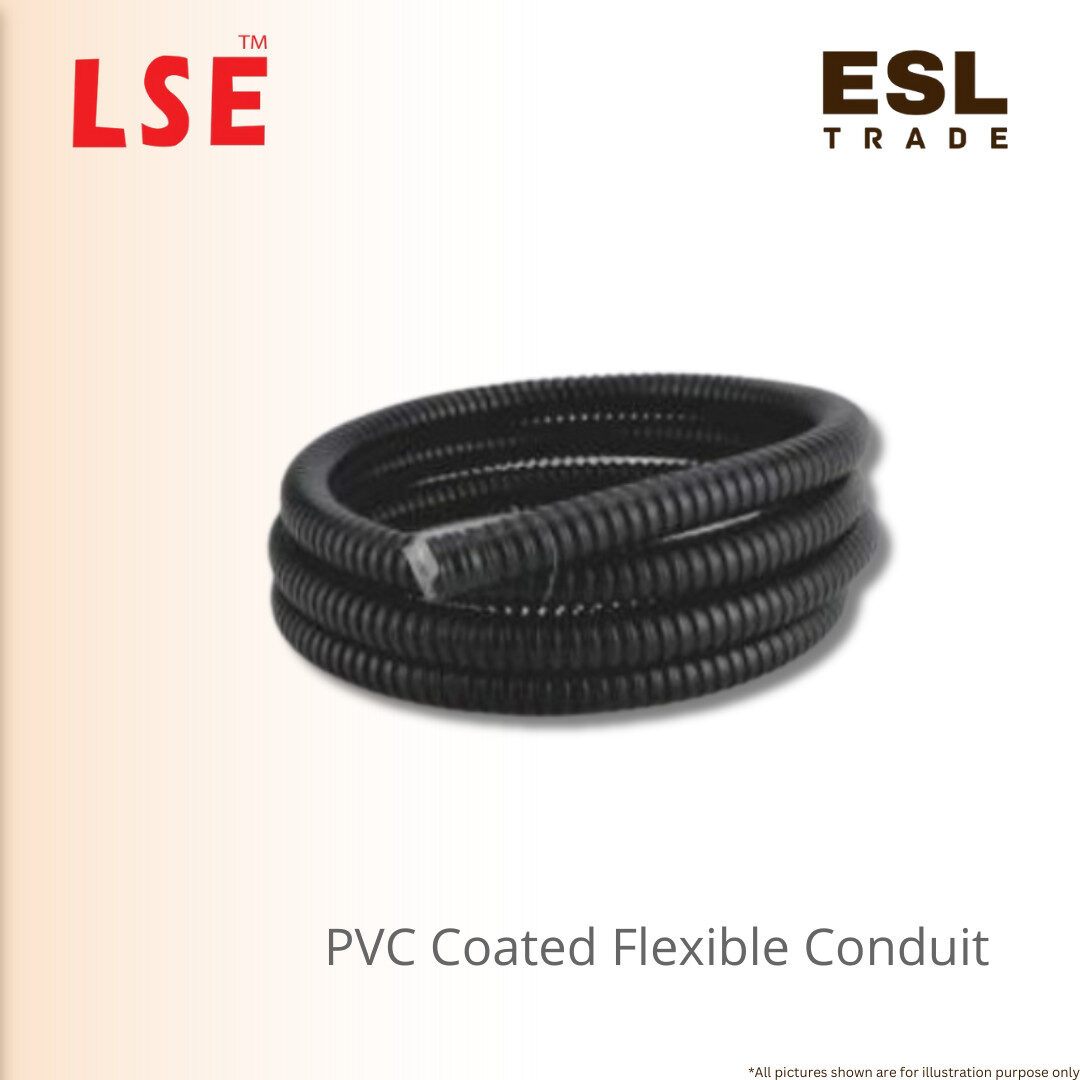

Flexible PVC Coated Steel Liquid Tight Conduit

Description

Flexible PVC Coated Steel Liquid Tight Conduit

Protect your electrical installations with our durable and flexible PVC Coated Steel Liquid Tight Conduit. Designed for superior performance in demanding environments, this conduit offers exceptional resistance to corrosion, water, and abrasion. Its flexible construction allows for easy routing around obstacles, while its robust design ensures long-lasting protection for wires and cables in industrial, outdoor, marine, and building applications. Easy to install and cost-effective, it’s the ideal solution for ensuring the safety and reliability of your electrical systems.

Application:

Electrical Installations in Buildings – Widely used in buildings to protect and route electrical wires and cables.

Industrial Environments – Well-suited for industrial settings where protection against harsh conditions, chemicals,and mechanical damage is essential.

Outdoor and Exposed Installations – Outdoor lighting systems, security camera installations and signage.

Marine and Offshore Applications – With corrosion resistance, PVC coated conduits are commonly used in marine and offshore environments to protect electrical wiring and cables on ships, oil rigs, and other marine structures.

Data Centers and Telecommunications – Use in data centers and telecommunication facilities to manage and protect the extensive network of cables and wires.

Product Features:

• Flexibility
• Corrosion Resistance
• Waterproof and Weatherproof
• Abrasion Resistance
• Temperature Tolerance
• Easy Installation
• Reduced Noise and Vibration
• Cost-Effective

Specification:

Item: LSE-13
Inch Size: 3/8″
Inside Diameter (mm)     Min: 12.30   Max: 12.80
Outside Diameter (mm)  Min: 16.70   Max: 17.20
Bending Radius (mm): 50
Length (meter): 15 / 30

Item: LSE-16
Inch Size: 1/2″
Inside Diameter (mm)     Min: 15.80   Max: 16.30
Outside Diameter (mm)  Min: 20.20   Max: 20.70
Bending Radius (mm): 65
Length (meter): 15 / 30

Item: LSE-20
Inch Size: 3/4″
Inside Diameter (mm)     Min: 20.70   Max: 21.20
Outside Diameter (mm)  Min: 25.50   Max: 26.10
Bending Radius (mm): 75
Length (meter): 15 / 30

Item: LSE-25
Inch Size: 1″
Inside Diameter (mm)     Min: 26.00   Max: 26.60
Outside Diameter (mm)  Min: 31.60   Max: 32.20.20
Bending Radius (mm): 100
Length (meter): 15 / 30

Item: LSE-32
Inch Size: 1-1/4″
Inside Diameter (mm)     Min: 34.70   Max: 35.40
Outside Diameter (mm)  Min: 40.80   Max: 41.50
Bending Radius (mm): 125
Length (meter): 15

Item: LSE-38
Inch Size: 1-1/2″
Inside Diameter (mm)     Min: 40.00   Max: 40.60
Outside Diameter (mm)  Min: 46.60   Max: 47.20
Bending Radius (mm): 150
Length (meter): 15

Item: LSE-51
Inch Size: 2″
Inside Diameter (mm)     Min: 51.30   Max: 51.90
Outside Diameter (mm)  Min: 58.10   Max: 58.70
Bending Radius (mm): 175
Length (meter): 15
