Description
HKW Aluminum PVC Cable 450/750V Single Core Aluminum PVC Excellent Fixed Wiring Cable
The HKW 450/750V Single Core Aluminum PVC Cable is a cost-effective and dependable solution for low voltage fixed installation and general electrical wiring projects.

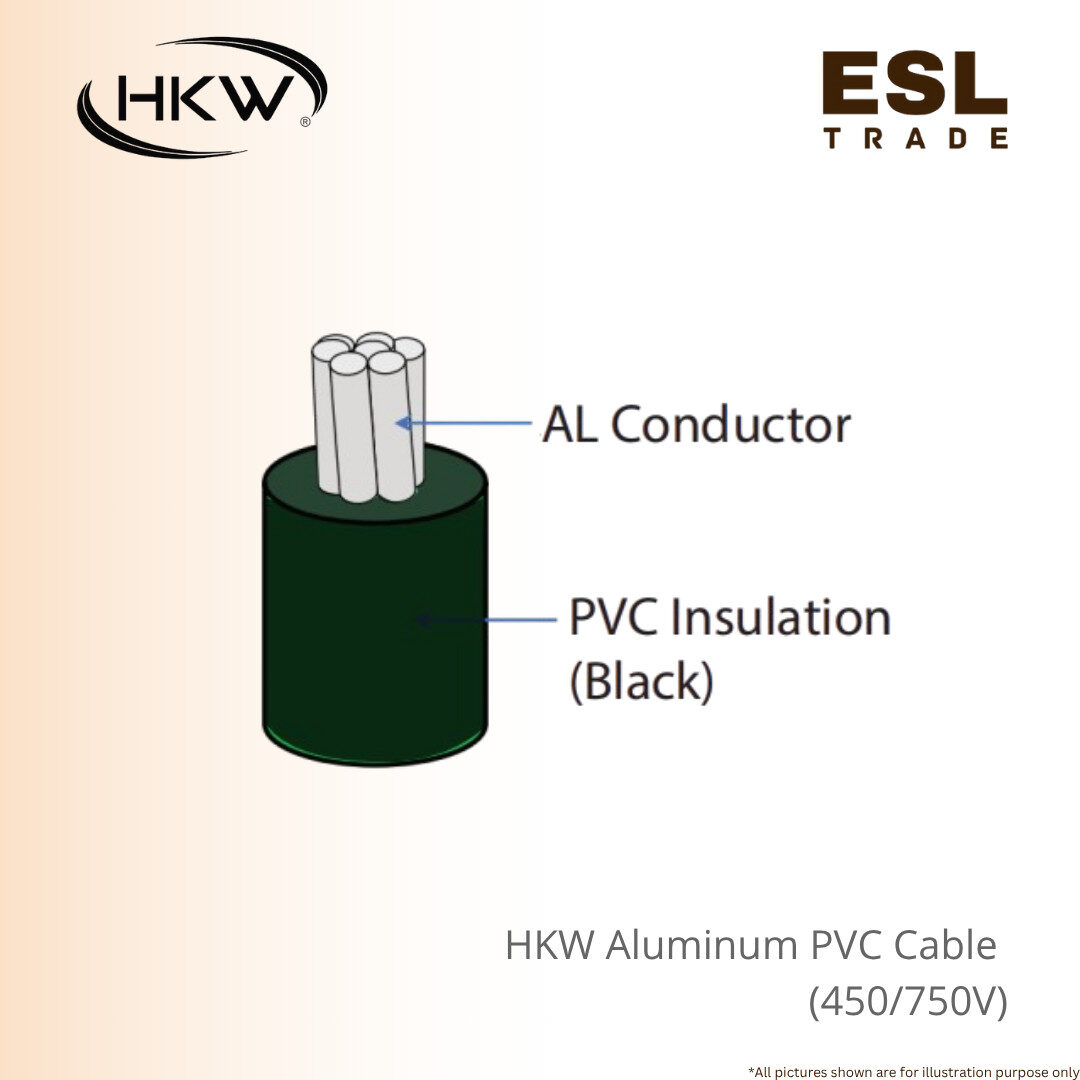

This essential cable features a high-quality, single Aluminum (AL) conductor encased in durable PVC insulation (typically black), designed to meet the rigorous demands of various power distribution applications.
Rated for a nominal voltage of 450/750V, this cable is specifically engineered for fixed routing in residential, commercial, and light industrial infrastructure, including installation within protective conduits, cable trunking systems, and general electrical ducts.
A key feature is the maximum conductor operating temperature of 70ºC, which ensures safe and stable performance even under high operating loads.
The robust single-core design is available in a comprehensive range of cross-sectional areas, from 2.5 mm² up to 70 mm², catering to diverse power requirements, including major circuits and sub-mains.
The use of an aluminum conductor offers significant weight savings and a competitive price point compared to equivalent copper cables, delivering a highly economical choice without compromising on the cable’s intended function and reliability.
Each cable is manufactured with clear markings to simplify installation and adherence to project specifications. Choose the HKW PVC-insulated aluminum wire for an economical, safe, and robust solution for your next fixed wiring cable requirement.
Application
- Fixed Installation
- Low voltage cable for general purposes
Other
- Cable tolerance ±10% if cable OD <20 mm
- Maximum conductor operating temperature : 70ºC
- With Cable Marking
Dimension :
| No. of Wires & Conductor Area (MM$^2$) | No./mm | Nom. Insulation Thickness (mm) | Overall Diameter (Approx) (mm) | Cable Weight (Approx) (kg/km) | Max. DC Resistance at 20掳C (惟/km) | Dielecing Withstand (AC) (KV/5min) | Rated Temperature (掳C) |
| 1c x 2.5 | 1/1.78 | 0.8 | 3.4 | 16.12 | 12.1 | 2.5 | 70 |
| 1c x 6 | 7/1.04 | 0.8 | 4.4 | 29.747 | 4.61 | 2.5 | 70 |
| 1c x 10 | 7/1.35 | 1 | 6.1 | 50.116 | 3.08 | 2.5 | 70 |
| 1c x 16 | 7/1.70 | 1 | 7.1 | 69.505 | 1.91 | 2.5 | 70 |
| 1c x 25 | 7/2.14 | 1.2 | 8.8 | 107.4 | 1.2 | 2.5 | 70 |
| 1c x 35 | 19/1.53 | 1.2 | 9.9 | 138.747 | 0.868 | 2.5 | 70 |
| 1c x 50 | 19/1.78 | 1.4 | 11.6 | 189.4 | 0.641 | 2.5 | 70 |
| 1c x 70 | 19/2.14 | 1.4 | 13.4 | 257.211 | 0.443 | 2.5 | 70 |
