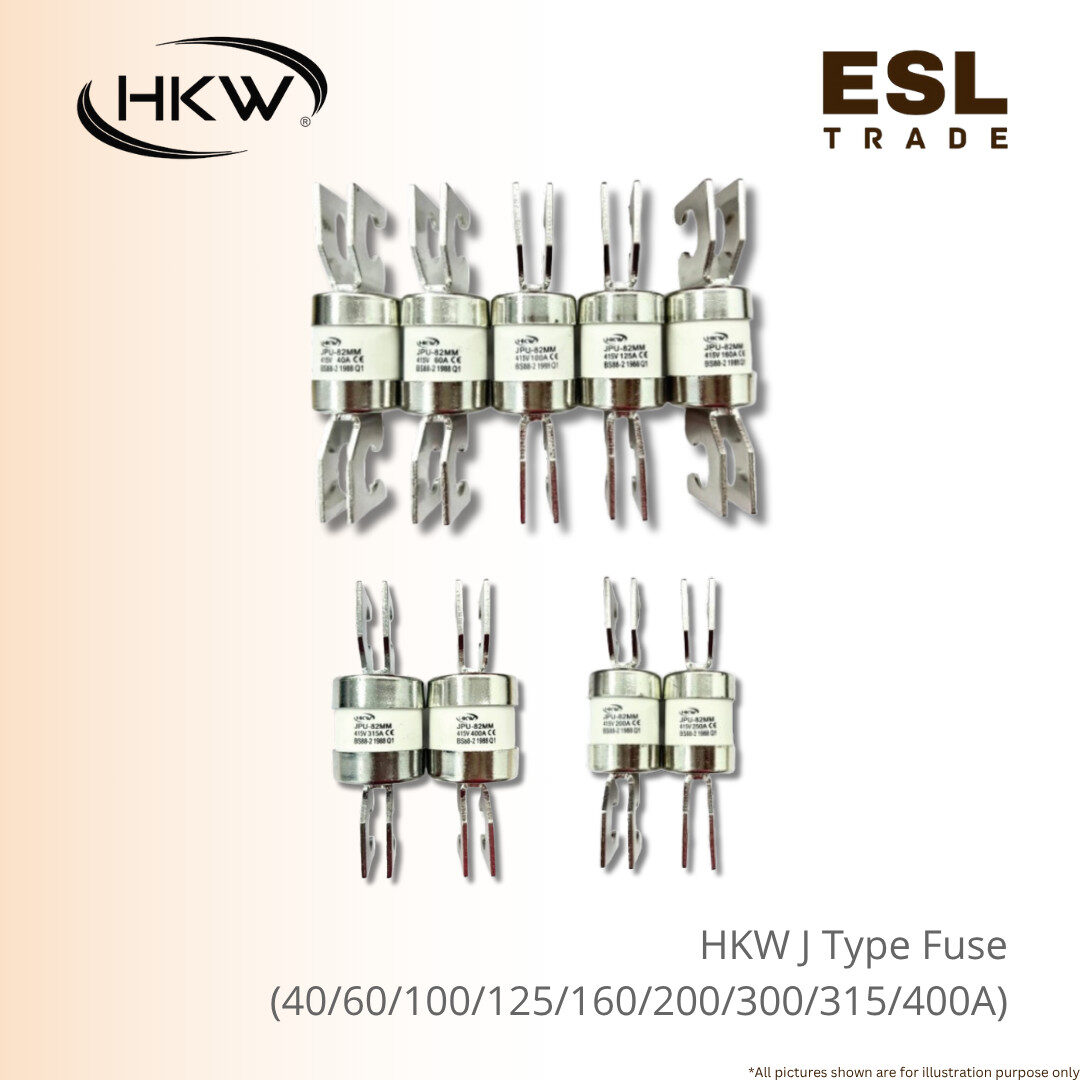

HWK J Type Fuse HRC Link 40A – 400A (82mm) – Excellent Feeder Pillar Fuse
The HWK J Type Fuse High Rupturing Capacity (HRC) Fuse Link is the professional choice for reliable, fast-acting overcurrent and short-circuit protection in low-voltage distribution networks.
Conforming to industry standards like BS88 and IEC 60269, this series is engineered for high-performance applications up to 415V AC.
Our comprehensive range includes all essential current ratings: 40A, 60A, 100A, 125A, 160A, 200A, 300A, 315A, and 400A, ensuring full coverage for light and heavy-duty circuits.
A key technical feature is the 82mm fixing center, which is the standard size for installation in most feeder pillars, distribution boards, pole-mounted cut-outs, and heavy-duty service intakes.
The robust construction is designed for wedge-type fuse carriers, offering a secure and reliable connection.1Utilizing the g/G utilization category, the HWK J Type fuse links provide general-purpose cable and equipment protection, clearing faults rapidly to minimize damage and system downtime.
Choose HWK for proven performance and a wide selection of ampere ratings to secure your industrial and commercial electrical infrastructure effectively.
Product Detail :
- Type : 40A/60A/100A/125A/160A/200A/300A
- Size : 82mm x 14.8mm
- Type : 315A/400A
- Size : 82mm x 14.4mm

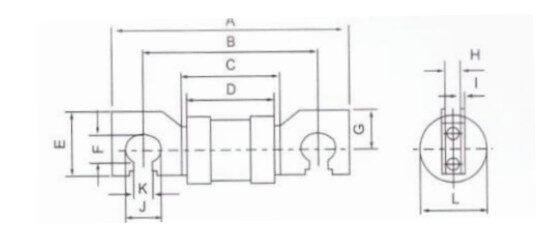

Dimension :
| SIZE | A | B | C | D | E | F | G | H | I | J | K | L |
| 82mm (<=300A) | 110 | 82 | 45.2 | 40.5 | 30 | 14.8 | 18 | 6.5 | 2.4 | 17.5 | 9.8 | 40 |
| 82mm (>300A) | 110 | 82 | 44.8 | 40 | 30 | 14.4 | 18 | 6.5 | 2.4 | 17.5 | 9.8 | 55 |
