MCB Copper Bus Bar for Distribution Board Panel

Description

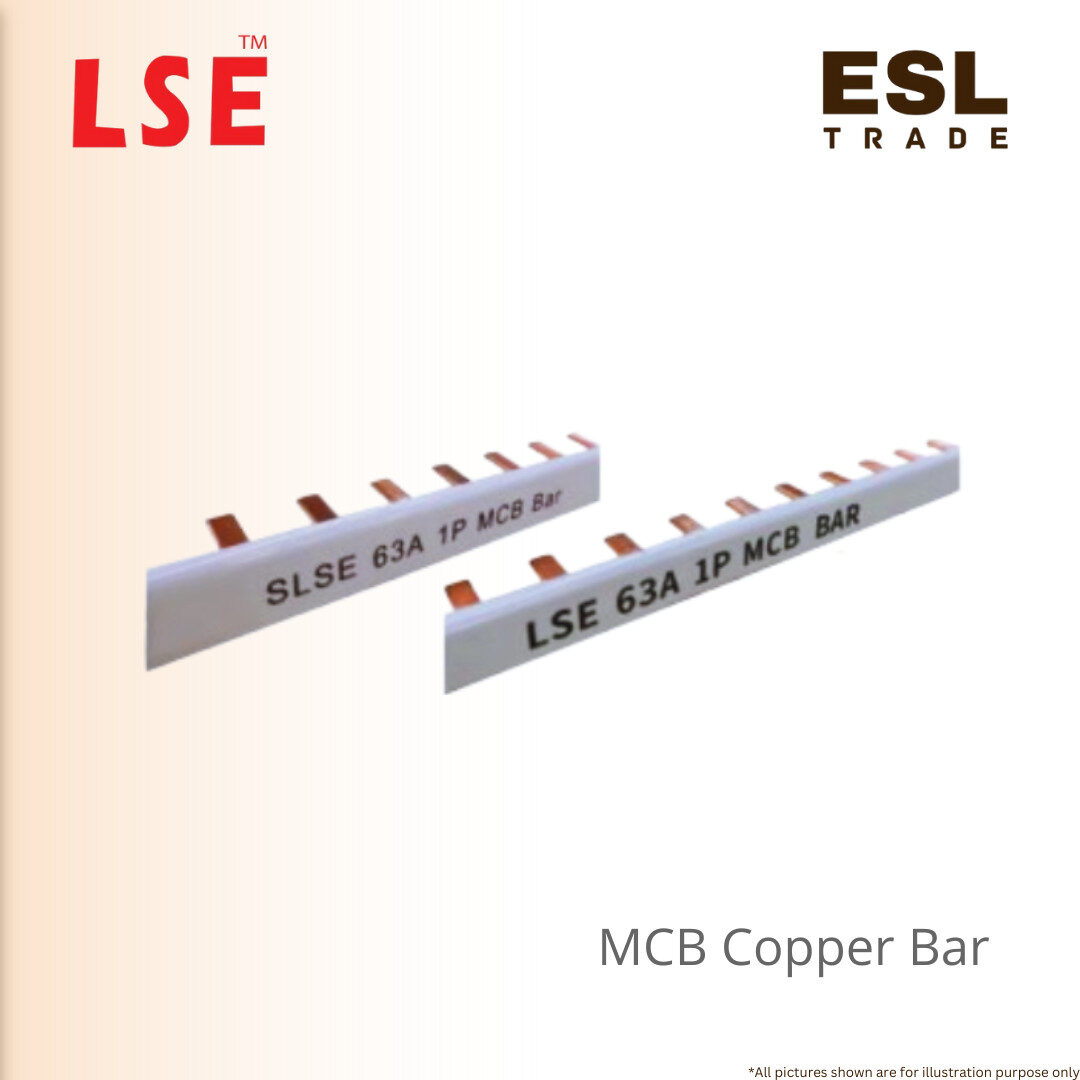

MCB Copper Bus Bar for Distribution Board Panel

This MCB Copper Bus Bar, also known as a comb busbar, is designed for efficient and safe electrical distribution. Made from pure, tinned copper with a protective PVC coating, it provides a superior connection for miniature circuit breakers (MCBs) in your distribution board panel. The innovative design offers a wider contact area, reducing power consumption and temperature rise compared to outdated connection methods. Choose from single-phase (1P) or three-phase (3P) options with varying current ratings (63A, 80A, 120A) and copper thicknesses (1.0mm, 1.2mm, 1.4mm, 2.0mm) to fit your specific needs. Ideal for both commercial and residential electrical installations.

Description:

MCB Copper Bar complete with PVC Coated
MCB Copper Fuse Bar complete with PVC Coated. Tinned Copper Bus Bar/MCB Copper Busbar/Comb Busbar for Distribution Board Panel.

Product Features

• Material: Pure Copper
• Finishing: Copper/PVC Smooth Surface
• Application: Conduct Electricity. The copper comb busbar changed the outdated connection ways of miniature circuit breaker (MCB) to a new connection way with the characteristics of wider contact area, low power consumption and low temperature-rise.

Product

Product Code: SLSE-MCB1P/63A
Description: SLSE 63A Single Phase MCB Bar c/w PVC Coated
Measurement (Thickness × Width × Length × Qty Strip) : 1.0mm x 9mm x 920mm x 50 way
Copper Thickness: 1.0mm

Product Code: LSE-MCB1P/63A
Description: LSE 63A Single Phase MCB Copper Fuse Bar c/w PVC Coated
Measurement (Thickness × Width × Length × Qty Strip) : 1.2mm x 9mm x 1000mm x 54 way
Copper Thickness: 1.2mm

Product Code: LSE-MCB3P/63A
Description: LSE 63A 3 Phase MCB Copper Fuse Bar c/w PVC Coated
Measurement (Thickness × Width × Length × Qty Strip) : 1.2mm x 10mm x 1000mm x 54 way
Copper Thickness: 1.2mm

Product Code: LSE-MCB3P/80A
Description: LSE 80A 3 Phase MCB Copper Fuse Bar c/w PVC Coated
Measurement (Thickness × Width × Length × Qty Strip) : 1.4mm x 10mm x 1000mm x 54 way
Copper Thickness: 1.4mm

Product Code: LSE-MCBSP/120A
Description: LSE 120A 3 Phase MCB Copper Fuse Bar c/w PVC Coated
Measurement (Thickness × Width × Length × Qty Strip) : 2.0mm x 10mm x 1000mm x 54 way
Copper Thickness: 2.0mm
