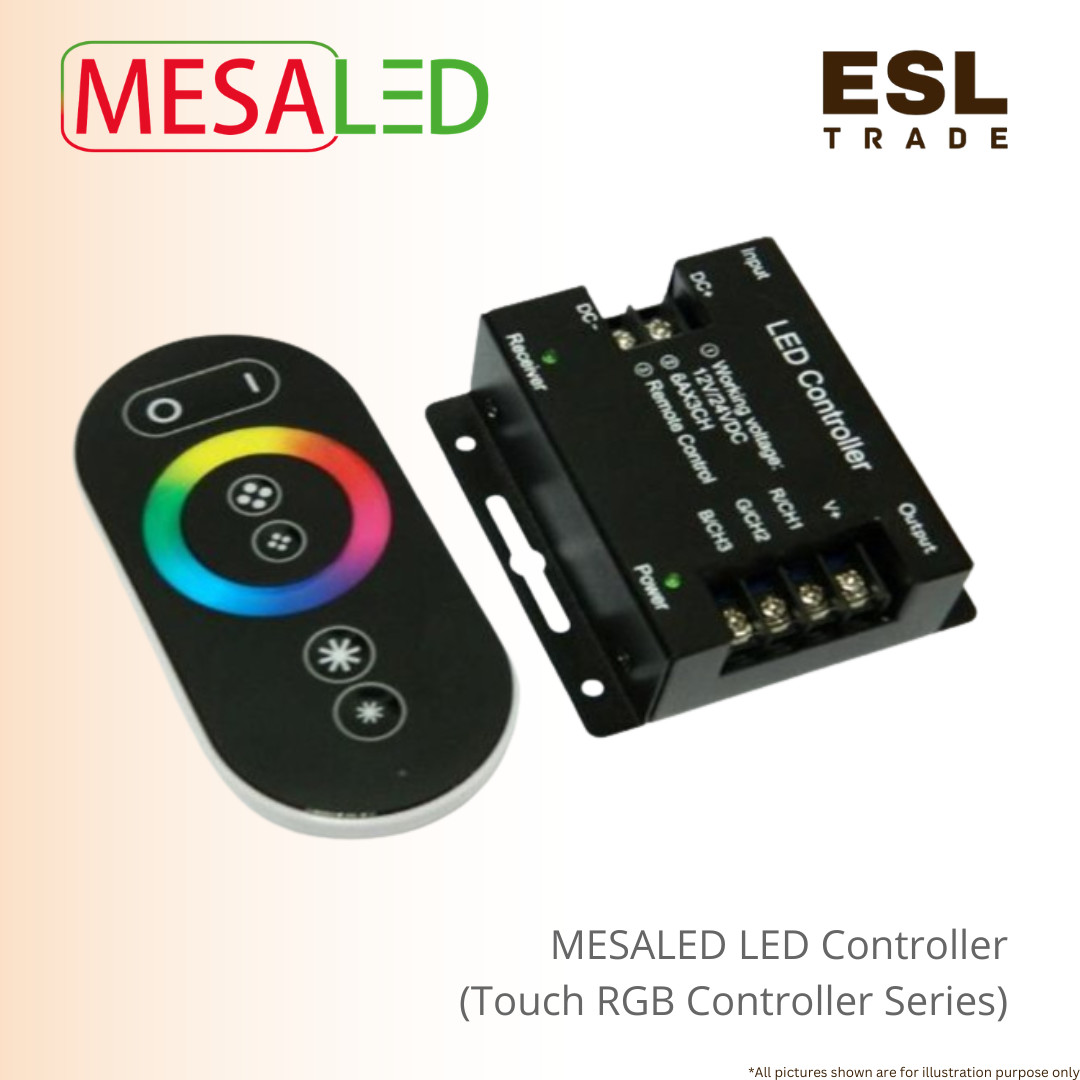

MESALED AC-1221-RGB Wireless Touch RF Remote Controller DC 12V-24V High-Power 3-Channel LED Strip Light Dimmer with Sensitive Color Wheel & 18 Dynamic Modes

Description

MESALED AC-1221-RGB Wireless Touch RF Remote Controller DC 12V-24V High-Power 3-Channel LED Strip Light Dimmer with Sensitive Color Wheel & 18 Dynamic Modes

The MESALED AC-1221-RGB Touch Controller is an advanced, high-performance solution for managing multi-color LED lighting systems with professional precision.

Engineered to support a wide input voltage range of DC 12V to 24V, this controller is capable of driving significant lighting loads, offering up to 216W at 12V or a massive 432W at 24V.

This power capacity makes it ideal for expansive residential accent lighting, commercial signage, and immersive architectural environments.

The standout feature of this system is its ultra-responsive RF Remote Control, which utilizes a sleek, touch-sensitive color wheel.

This interface allows users to select static colors instantly with a simple touch or toggle through 18 pre-programmed dynamic modes, including auto-changing sequences, jumps, and strobe-flash effects across various color combinations.

With a remote controlled distance of over 20 meters, you can manage your lighting atmosphere from across a large room without needing a direct line of sight.

Durability and ease of use are prioritized in the design of the AC-1221-RGB.

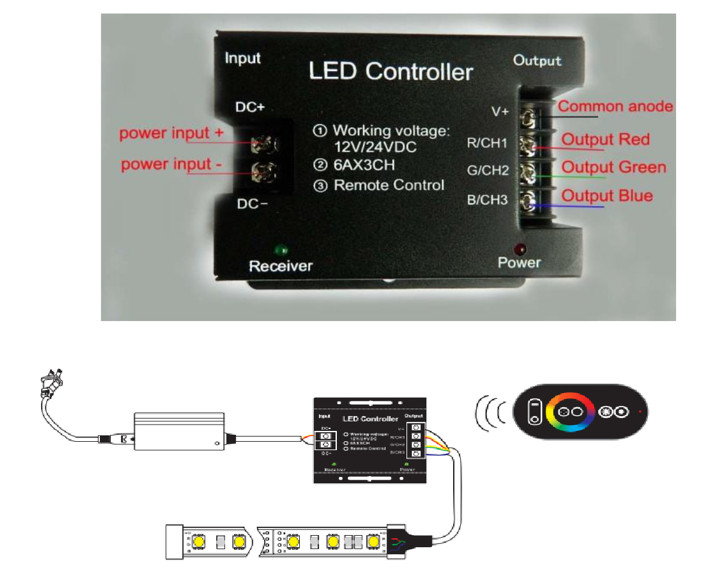

The receiver unit features clear terminal blocks for easy wiring of the common anode and three output channels (Red, Green, Blue).

It also includes smart memory functions that allow you to pause programs or adjust the speed and brightness of dynamic modes.

Backed by a 12-month warranty, this controller ensures long-term reliability for your RGB LED strip installations, providing a flicker-free and customizable lighting experience.

Product Features :

• Advanced Touch Interface: High-sensitivity RF remote featuring a full-color touch wheel for instant, intuitive color selection.

• High Power Capacity: Supports 3 channels with a total output power of up to 432W (at 24V) or 216W (at 12V).

• Wide Voltage Compatibility: Operates seamlessly on DC 12V-24V power systems.

• 18 Dynamic Modes: Includes a variety of changing models such as 7-color jumps, RGB general changing, and specialized strobe-flash effects.

• Long-Range RF Control: Reliable wireless operation with a remote-controlled distance of more than 20 meters.

• Adjustable Dynamics: Full control over brightness levels in static modes and speed rates in dynamic modes via dedicated buttons.

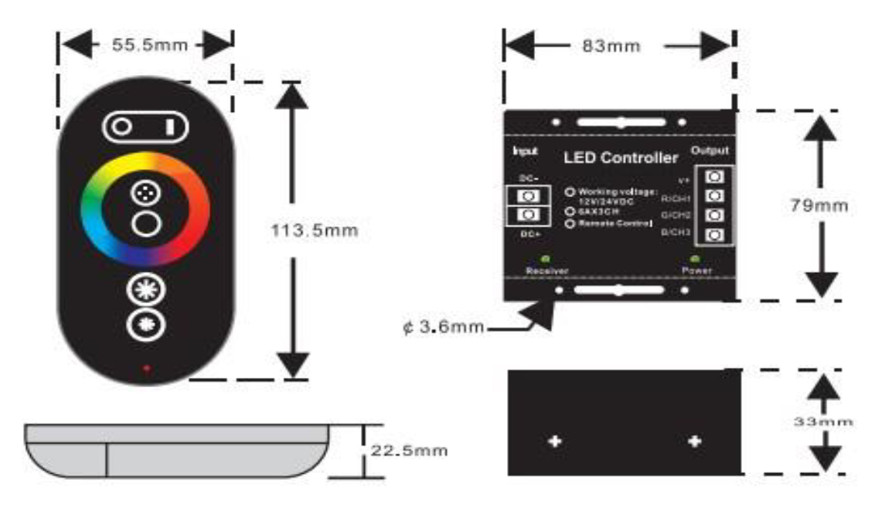

• Smart Design & Protection: Features a compact receiver (L84 x W82 x H33 mm) with clear terminal labeling and a low standby power consumption.

• Guaranteed Reliability: Includes a 12-month product warranty covering standard operational use.

Product Details :
