Description

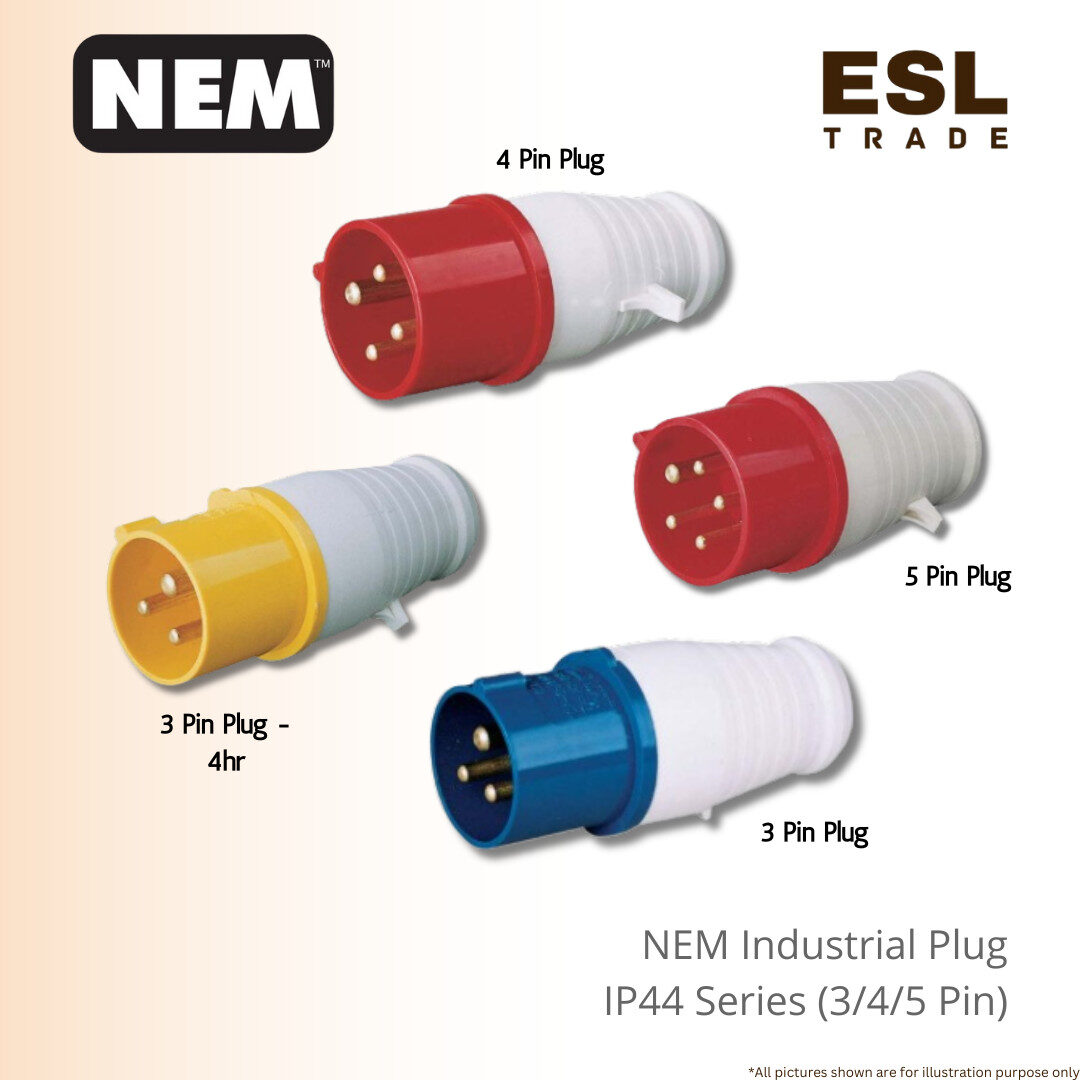

NEM Industrial Plug IP 44 Series Reliable Industrial Electrical Connectors
The NEM Industrial Plug IP44 Series is an essential component for secure and reliable power connections in demanding industrial and commercial environments.
These plugs are engineered to meet the international standard of IP44, offering protection against solid objects larger than 1mm and water splashes from any direction.
This makes them a durable and long-lasting choice for workshops, construction sites, and outdoor installations where equipment is exposed to dust and moisture.
The series is versatile, with plugs available in 3, 4, and 5-pin configurations to meet a wide range of electrical requirements, including 220-240V and 380-415V systems.
They are also designed to handle rated currents of both 16A and 32A. The plugs feature a designated earth contact position at 6h, ensuring safe and correct alignment with corresponding sockets.
With robust construction and a simple, effective design, the NEM Industrial Plug IP44 Series is a professional solution for ensuring the integrity and safety of your electrical connections.
Product Specification
| Parameter | Value |
| Model | P013-6 / P023-6 |
| Voltage (V) | 220–240V |
| Protection Degree | IP44 |
| Earth Contact Position | 6h |
| Rated Current (A) – 2 Pole | 16 / 32 |
| Dimension (mm) – a | 122 / 141 |
| Dimension (mm) – b | 59 / 77 |
| Dimension (mm) – c | 50 / 64 |
| Dimension (mm) – φ | 8-Jun |
| Cable Nominal Cross-Section Area (mm²) | 1–2.5 (for 16A) / 2.5–6 (for 32A) |

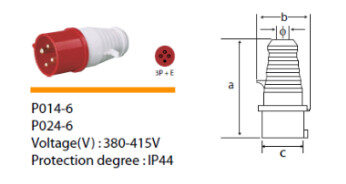

| Parameter | Value |
| Model | P014-6 / P024-6 |
| Voltage (V) | 380–415V |
| Protection Degree | IP44 |
| Earth Contact Position | 6h |
| Rated Current (A) – 3 Pole | 16 / 32 |
| Dimension (mm) – a | 122 / 141 |
| Dimension (mm) – b | 64 / 77 |
| Dimension (mm) – c | 50 / 64 |
| Dimension (mm) – φ | 8-Jun |
| Cable Nominal Cross-Section Area (mm²) | 1–2.5 (for 16A) / 2.5–6 (for 32A) |

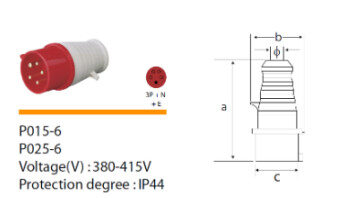

| Parameter | Value |
| Model | P015-6 / P025-6 |
| Voltage (V) | 380–415V |
| Protection Degree | IP44 |
| Earth Contact Position | 6h |
| Rated Current (A) – 4 Pole | 16 / 32 |
| Dimension (mm) – a | 130 / 144 |
| Dimension (mm) – b | 75 / 87 |
| Dimension (mm) – c | 64 / 70 |
| Dimension (mm) – φ | 8-Aug |
| Cable Nominal Cross-Section Area (mm²) | 1–2.5 (for 16A) / 2.5–6 (for 32A) |

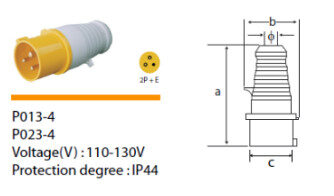

| Parameter | Value |
| Model | P013-4 / P023-4 |
| Voltage (V) | 110–130V |
| Protection Degree | IP44 |
| Earth Contact Position | 4h |
| Rated Current (A) – 2 Pole | 16 / 32 |
| Dimension (mm) – a | 122 / 141 |
| Dimension (mm) – b | 59 / 77 |
| Dimension (mm) – c | 50 / 64 |
| Dimension (mm) – φ | 8-Jun |
| Cable Nominal Cross-Section Area (mm²) | 1–2.5 (for 16A) / 2.5–6 (for 32A) |
