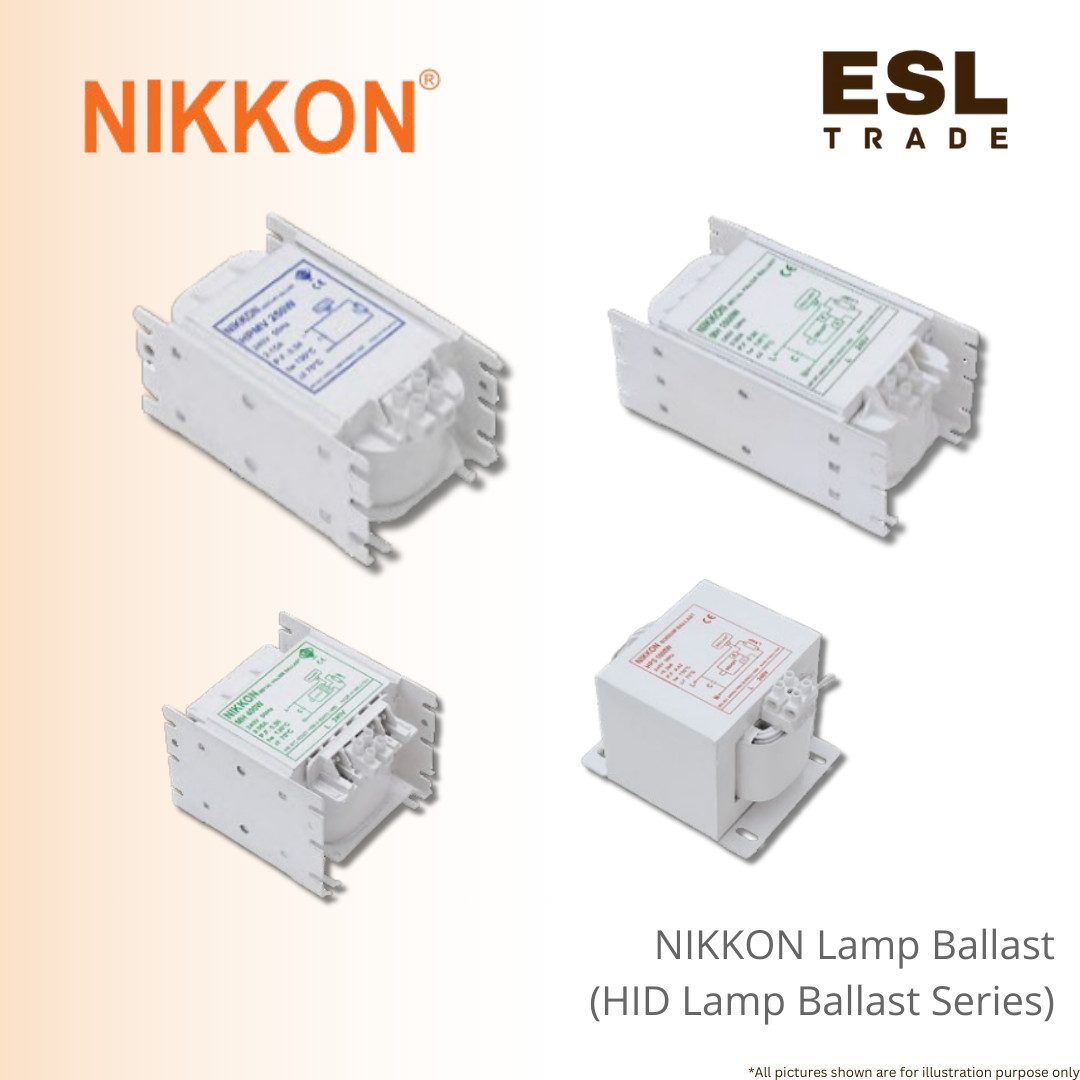

NIKKON High-Performance HID Lamp Ballast Excellent for Industrial Magnetic Ballast for 35W to 2000W Metal Halide, HPS, and Mercury Vapor Lamps, SIRIM & CE Certified with Class H Insulation

Description

NIKKON High-Performance HID Lamp Ballast Excellent for Industrial Magnetic Ballast for 35W to 2000W Metal Halide, HPS, and Mercury Vapor Lamps, SIRIM & CE Certified with Class H Insulation

The NIKKON HID Lamp Ballast is a heavy-duty, professional-grade electrical component designed to provide stable and efficient power regulation for a wide array of High-Intensity Discharge (HID) lighting systems.

This versatile Lamp Ballast series is engineered to support a massive range of capacities, from low-wattage 35W applications up to high-power 2000W stadium and industrial lighting.

It is fully compatible with Metal Halide (MH), High-Pressure Sodium (SON/HPS), and High-Pressure Mercury Vapor (HPMV) lamps, making it a universal solution for municipal, commercial, and industrial infrastructure.

Built for longevity in demanding environments, NIKKON ballasts feature premium insulation ratings, utilizing Class H insulation for copper windings and Class F for aluminium variants.

The technical design allows for a rated maximum operation temperature (tw) of 130°C, ensuring reliable performance even under high thermal stress.

Depending on the specific lighting setup, the series offers specialized configurations, including 2-terminal designs for HPMV and 3-terminal pulse ignitor versions for MH and SON systems.

Safety and quality are guaranteed through rigorous compliance with international and domestic standards, including IEC 61347 and IEC 60923.

The product is CE marked for international markets and holds prestigious domestic certifications from SIRIM, TNB, JKR, and SESCO.

With multiple physical mounting types (Type A, B, and C), these ballasts are designed for seamless integration into various luminaire gear compartments.

Product Features :

• Wide Power Compatibility: Supports a comprehensive range of lamp wattages from 35W up to 2000W.

• Multi-Lamp Support: Engineered for Metal Halide (MH), High-Pressure Sodium (SON), and Mercury Vapor (HPMV) lamps.

• Premium Insulation: Rated with Class H insulation for copper components and Class F for aluminium.

• High Thermal Tolerance: Rated for a maximum operation temperature (tw) of 130°C with a permissible temperature rise (Δt) of 70-85°C.

• Universal Voltage Input: Compatible with multiple supply voltages including 220V, 230V, 240V, 380V, 400V, and 415V at 50Hz/60Hz.

• Certified Quality: Holds international CE marking and domestic approvals from SIRIM, TNB, JKR, and SESCO.

• Manufacturing Standards: Built in compliance with IEC 61347-1, IEC 61347-2-9, and IEC 60923.

• Flexible Mounting Options: Available in three distinct physical dimensions and types (Type A, B, and C) to fit various fixture sizes.

• Specialized Ignition Systems: Includes configurations for both superimposed ignitors (2 & 3 terminal) and pulse ignitors (3 terminal).

• High Power Factor Options: Technical data includes optimized capacitor and load current specifications for maximum efficiency.


Dimension :

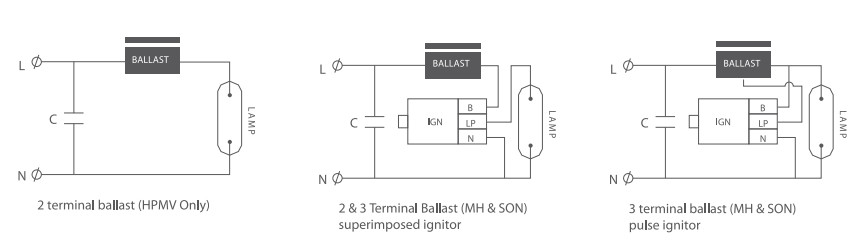

Wiring :
