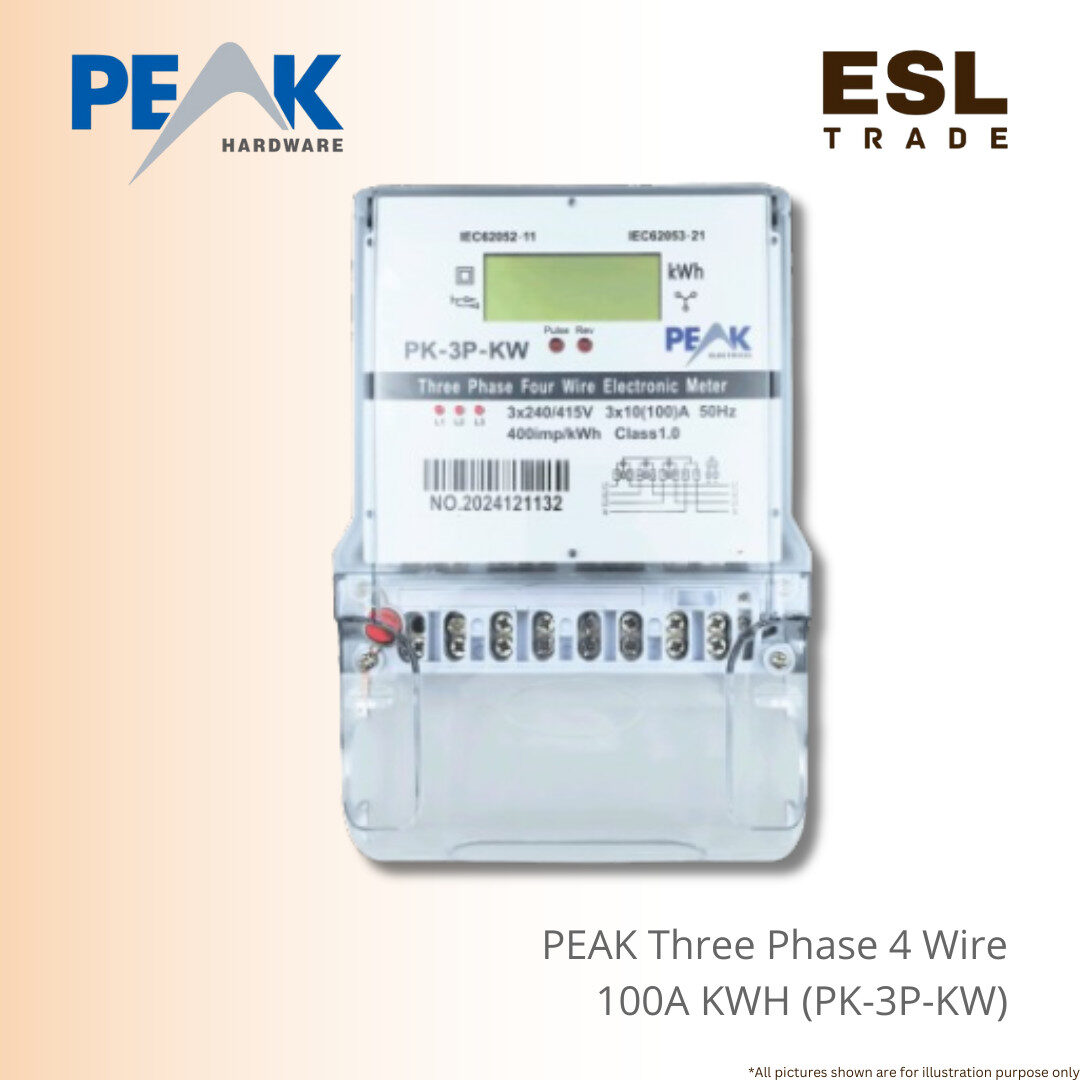

PEAK 3 Phase 4 Wire 100A KWH Meter – Wide Operating Temp IP54 Reliable Meter
The PEAK 3 Phase Energy Meter PK-3P-KW is a professional-grade solution engineered for accurate and reliable monitoring of three-phase electrical systems.
It operates on a rated voltage of AC: 3×220/380V∼3×240/415V and handles a substantial maximum current of 100A, making the unit ideal for heavy commercial and industrial applications.
Certified with an Active 1.0 Accuracy Class, this device guarantees precise measurement of energy consumption.
Its robust design includes IP54 ingress protection, providing excellent resistance against dust and moisture, and an exceptional operating temperature range of −40∘C to +70∘C.
This ensures durable performance even in extreme environments. Featuring an 8-digit LCD display and low power consumption (≤1.5W,10VA), the PEAK 3-Phase Energy Meter is the definitive choice for sophisticated and long-lasting power management.
Product Information
- Forward/reverse active and reactive energy
- Measure parameters like voltage, current , power, power factor.
- LCD alarms for current reversal, reverse phase sequence, phase fail, N line fail
- LED alarm.
Technical Parameter
| Feature | Detail | Sub-Feature | Value |
| Model | PK-3P-KW | ||
| Rated Voltage | AC:3×220/380V~3×240/415V | ||
| Current | Basic current | AC:10A | |
| Current | Maximum current | AC:100A | |
| Current | Starting current | AC:≤0.4% Ib | |
| Accuracy Class | Active 1.0 | ||
| Power consumption | Voltage circuit | ≤1.5W, 10VA | |
| Power consumption | Current circuit | ≤1VA | |
| Frequency | 50Hz | ||
| Impulse constant | AC:400imp/kWh | ||
| Display | LCD: 8 Digits | Register | 6 digits |
| Ingress protection | IP54 | ||
| Operating temperature | -40°C ~ +70°C | ||
| PCS/BOX | 10 | ||
| Measurements (cm) | 44 x 42 x 31 | ||
- Dimension :
