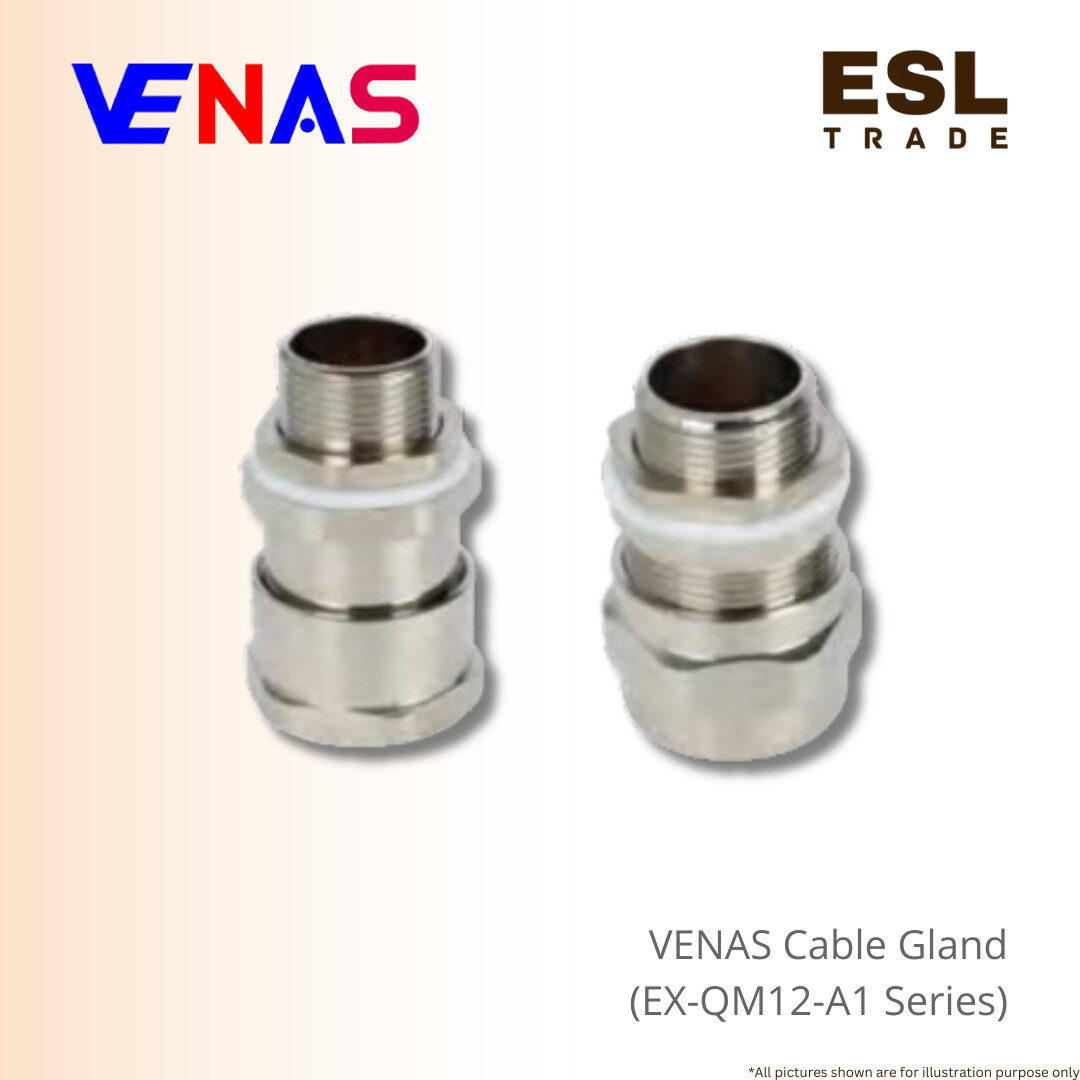

VENAS Cable Gland EX-QM12-A1 Series IP Rating IP66/IP68 Excellent Sealing Ring Cable Gland
The VENAS Ex-QM12-A1 Series Cable Gland is a high-specification solution designed for the safe and secure termination of unarmored electrical cables in hazardous locations.
Distinguished by its Ex e structure (Increased Safety) and sealing ring design, this gland is expertly engineered to prevent excessive heat and sparks, thereby mitigating the risk of ignition.
It is fully certified for use in Zone 1 (gas/vapor) and Zone 21 (combustible dust) areas.
Safety compliance is guaranteed by full ATEX (II2 GD) and IECEx certifications, offering global market acceptance and adherence to the strictest international safety standards.
The gland utilizes the protection concepts of Ex eb (Increased Safety) and Ex tb (Dust Ignition Protection), providing a dual layer of defense against both explosive gases and combustible dusts.
Built to withstand severe environmental exposure, the Ex-QM12-A1 boasts an exceptional IP66/IP68 ingress protection rating, ensuring long-term resistance to dust and prolonged water immersion.
Crucially, it maintains peak performance across a vast ambient temperature range, operating reliably from a punishing -50°C up to +80°C.
With support for both Metric Thread and NPT Thread connections, the VENAS Ex-QM12-A1 Series offers both versatility and uncompromising certified safety for all critical unarmored cable installations.
Product Features :
| Field | Value |
| Series | Ex-QM12-A1 Series |
| Description | Ex e structure. Sealing ring, suitable for unarmored cable. Degree of protection: IP66/IP68. |
| Model | Ex-QM12-A1 |
| Marking ATEX | (4) II2 GD Ex eb IIC Gb Ex tb IIIC Db IP66/IP68 |
| Marking IECEx | Ex eb IIC Gb Ex tb IIIC Db IP66/IP68 |
| Ambient Temperature | -50≤Tamb≤+80°C |
| Connection Thread | Metric Thread, NPT Thread |
| Standard | IEC60079-0:2017, IEC60079-1:2014, IEC60079-7:2017, IEC60079-31:2013, EN60079-0:2012+A11:2013, EN60079-1:2014, EN60079-7:2015, N60079-31:2014 |
| Rating | Zone 1, Zone 21 |
