Description

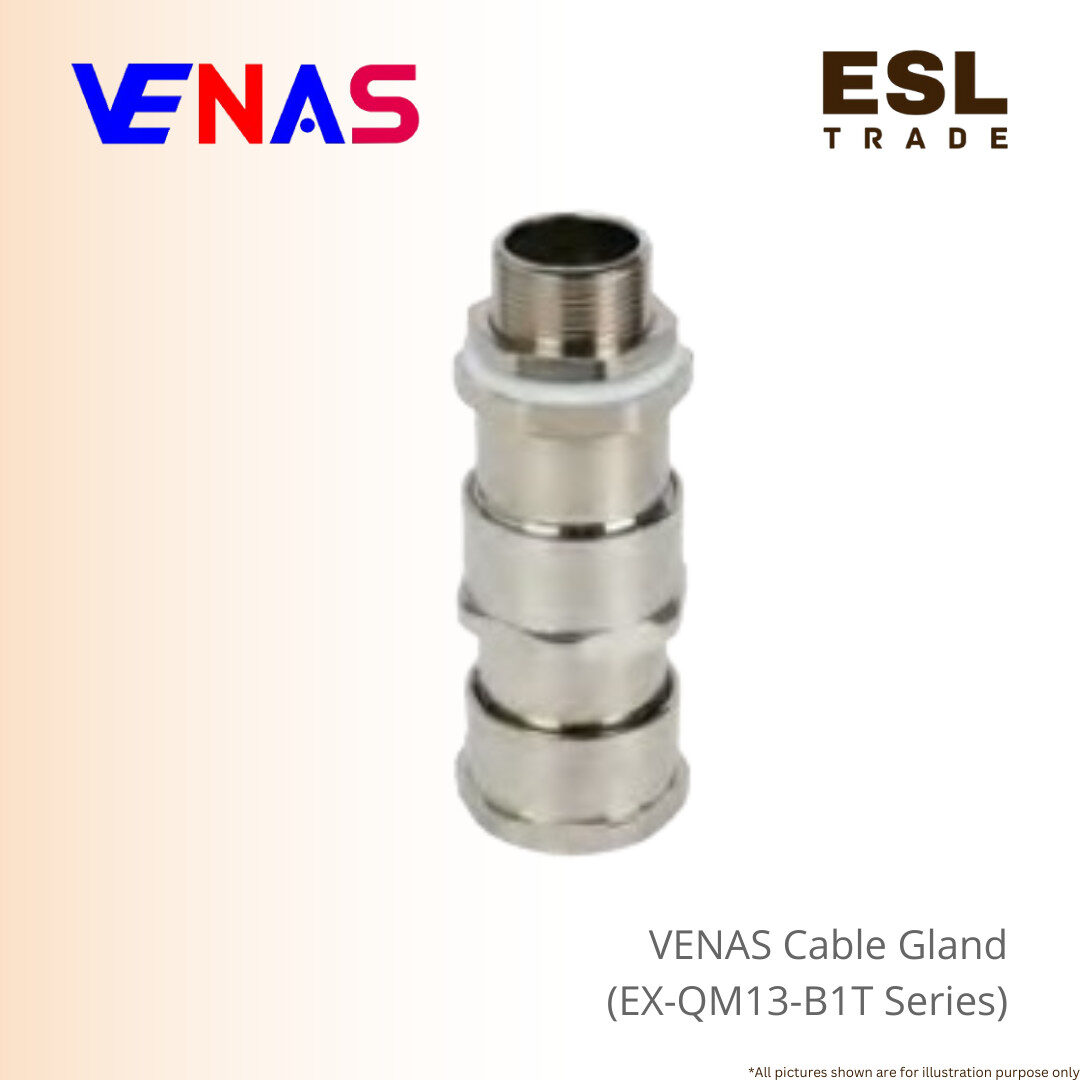

VENAS Cable Gland EX-QM13-B1T Series IP Rating IP66/IP68 Excellent for Dual Seal Unarmored Cable Gland
The VENAS Ex-QM13-B1T Series Cable Gland is a premium, high-performance solution specifically engineered for the safe and secure termination of unarmored electrical cables in extremely hazardous environments.
Characterized by its dual seal design, this gland ensures superior cable retention and maximum ingress protection for critical electrical connections.
It is fully certified for use in Zone 1 (flammable gas/vapor) and Zone 21 (combustible dust) areas.
Safety is rigorously verified by global certifications, including ATEX (II2 GD) and IECEx markings.
The gland incorporates the comprehensive multi-protection concepts of Ex db (Flameproof), Ex eb (Increased Safety), and Ex tb (Dust Ignition Protection).
This ensures the electrical system is safeguarded against all ignition risks, whether from sparks, excessive heat, or internal explosions.
Designed for peak durability and resilience, the Ex-QM13-B1T boasts an outstanding IP66/IP68 rating, providing a robust barrier against dust and total protection from water immersion.
Its functional operating range spans an impressive ambient temperature of -50°C to +80°C, guaranteeing reliability in diverse and extreme climates.
With compatibility for both Metric Thread and NPT Thread connections, the VENAS Ex-QM13-B1T Series offers both installation versatility and uncompromising, certified safety for unarmored cable applications.
Product Features
| Field | Value |
| Series | Ex-QM13-B1T Series |
| Description | Dual seal, suitable for unarmored cable. Degree of protection: IP66/IP68. |
| Model | Ex-QM13-B1T |
| Marking ATEX | (4) II2 GD Ex eb IIC Gb/Ex db IIC Gb Ex tb IIIC Db IP66/IP68 |
| Marking IECEx | Ex eb IIC Gb/Ex db IIC Gb Ex tb IIIC Db IP66/IP68 |
| Ambient Temperature | -50°C≤Tamb≤ +80°C |
| Connection Thread | Metric Thread, NPT Thread |
| Standard | IEC60079-0:2017, IEC60079-1:2014, IEC60079-7:2017, IEC60079-31:2013, EN60079-0:2012+A11:2013, EN60079-1:2014, EN60079-7:2015, N60079-31:2014 |
| Rating | Zone 1, Zone 21 |
