Description

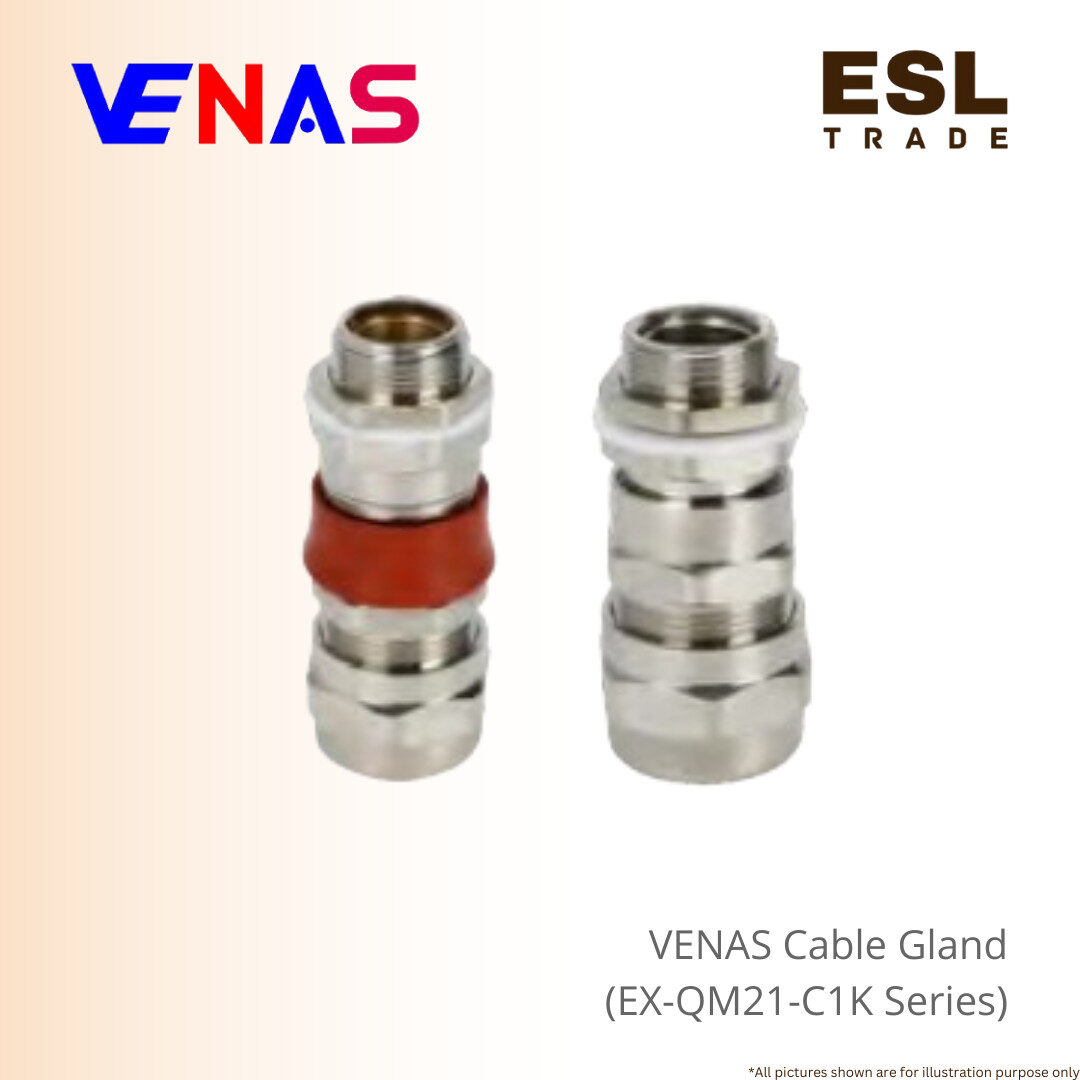

VENAS Cable Gland EX-QM21-C1K Series IP Rating IP66/IP68 Excellent Sealing Ring Cable Gland
The VENAS Ex-QM21-C1K Series Cable Gland is a high-specification, single-seal solution expertly designed for the secure and certified termination of armored electrical cables in extreme industrial environments.
This gland is fully compliant for critical applications in Zone 1 (flammable gas/vapor) and Zone 21 (combustible dust) hazardous locations.
Safety and global market acceptance are guaranteed through comprehensive ATEX (II2 GD) and IECEx certifications.
The gland incorporates an advanced multi-protection concept, featuring Ex db (Flameproof), Ex eb (Increased Safety), and Ex tb (Dust Ignition Protection).
This robust design ensures any internal explosion is safely contained, while simultaneously preventing the spread of flames, sparks, or dust ignition to the surrounding volatile atmosphere.
Built for unparalleled durability, the Ex-QM21-C1K boasts an outstanding IP66/IP68 ingress protection rating, offering a sealed barrier against the harshest environmental factors, including dust ingress and prolonged water immersion.
Its wide ambient temperature operating range, from a freezing -50°C up to a scorching+80°C, ensures dependable performance in virtually any climate.
Offering compatibility with both Metric Thread and NPT Thread connections, the VENAS Ex-QM21-C1K Series is the definitive choice for certified safety and long-term reliability in armored cable installations.
Product Features :
| Field | Value |
| Series | Ex-QM21-C1K Series |
| Description | Single seal, suitable for armored cable. Degree of protection: IP66/IP68. |
| Model | Ex-QM22-C1K |
| Marking ATEX | II2 GD Ex eb IIC Gb/ Ex db IIC Gb Ex tb IIIC Db IP66/IP68 |
| Marking IECEx | Ex eb IIC Gb/ Ex db IIC Gb Ex tb IIIC Db IP66/IP68 |
| Ambient Temperature | -50°C≤Tamb≤ +80°C |
| Connection Thread | Metric Thread, NPT Thread |
| Standard | IEC60079-0:2017, IEC60079-1:2014, IEC60079-7:2017, IEC60079-31:2013, EN60079-0:2012+A11:2013, EN60079-1:2014, EN60079-7:2015, N60079-31:2014 |
| Rating | Zone 1, Zone 21 |
