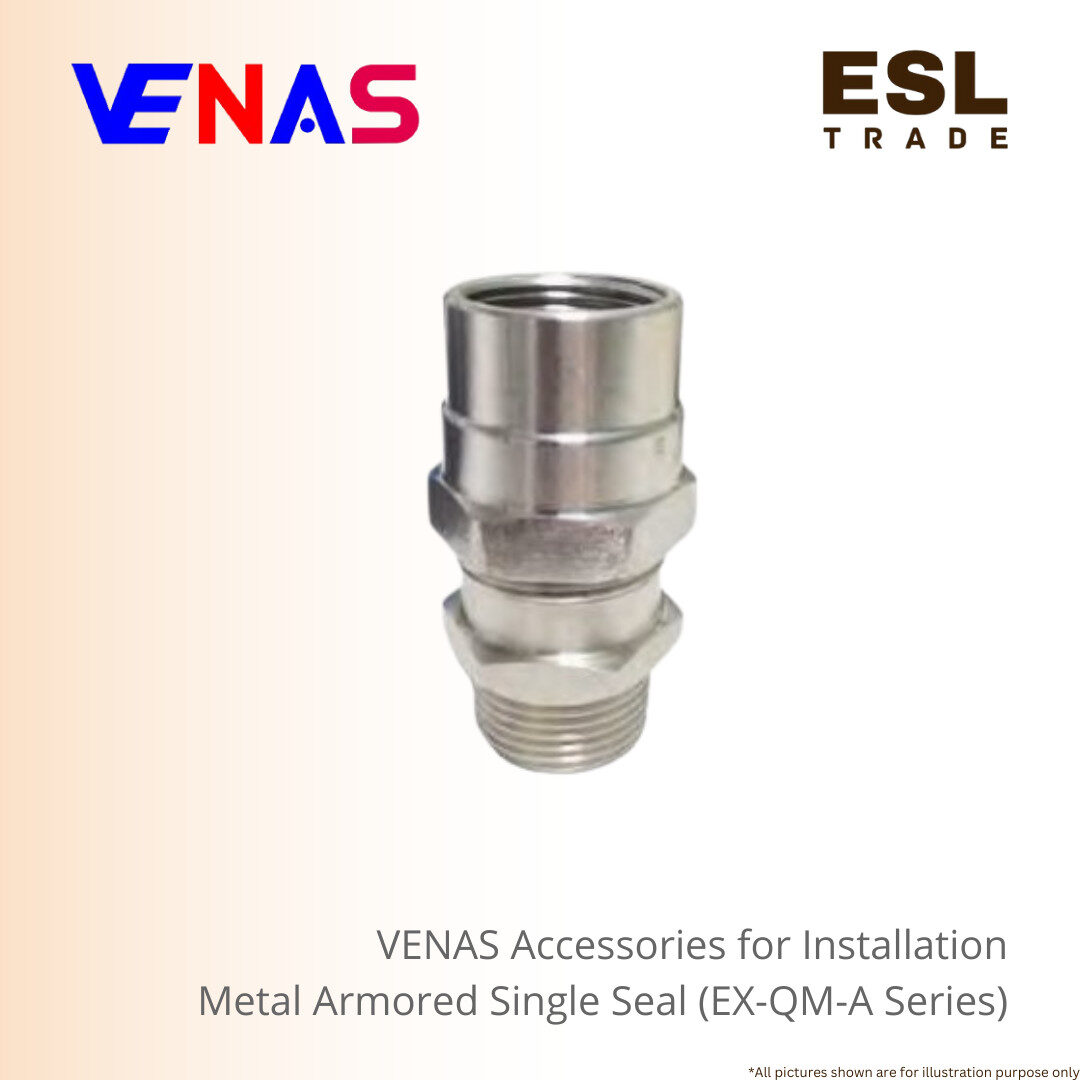

VENAS Metal Armored Cable Gland EX-QM-A Series IP Rating IP67 Excellent for Armored/Unarmored Cables

Description

VENAS Metal Armored Cable Gland EX-QM-A Series IP Rating IP67 Excellent for Armored/Unarmored Cables

The VENAS EX-QM-A Series is a Metal Armored Cable Gland is the professional choice for reliably terminating and sealing armored (and unarmored) cables in the most demanding and hazardous industrial locations.

Designed with the Ex e (Increased Safety) protection concept, this cable gland guarantees that no ignition source such as sparks, arcs, or excessive surface temperatures can occur, making it fully certified for Gas Zones 1 & 2 (Ex eb IIC Gb) and Dust Zones 21 & 22 (Ex tb IIIC Db).

Its robust construction utilizes high-strength metal (typically nickel-plated brass or stainless steel), providing superior mechanical retention for the cable armor and outstanding resistance against chemical exposure and corrosion.

The Single Seal design forms a primary environmental barrier at the cable jacket. Crucially, the gland provides reliable earthing/grounding through the armor clamp, ensuring electrical safety.

The EX-QM-A offers a high IP66/IP67 ingress protection rating, safeguarding the electrical integrity of the system against dust, water jets, and temporary submersion.

With an extensive operating ambient temperature range of -20°C to +100°C, it is suitable for diverse global applications, from cold storage facilities to high-heat process areas.

Available in both standard Metric and optional NPT thread options, the VENAS EX-QM-A ensures compliant, durable, and secure cable termination for all certified equipment.

Product Features :

• Series: EX-QM-A (Metal Armored Single Seal Cable Gland).

• Protection Method: Ex e (Increased Safety), certified for Ex eb IIC Gb (Gas) and Ex tb IIIC Db (Dust).

• Material: Metal construction (e.g., Nickel-Plated Brass) for high mechanical strength and corrosion resistance.

• Cable Type: Suitable for both Armored Cable and Unarmored Cable with a Single Seal design.

• Ingress Protection: IP66 to IP67 (Dust-tight, protected against powerful water jets and temporary immersion).

• Hazardous Location Ratings: Certified for Zone 1 & 2 (Gas) and Zone 21 & 22 (Dust).

• Ambient Temperature Range: -20°C to +100°C.

• Connection Thread: Metric Thread (Standard) and NPT Thread (Optional).

• Functionality: Provides a secure grip on the cable armor for mechanical retention and earth continuity (if applicable).
