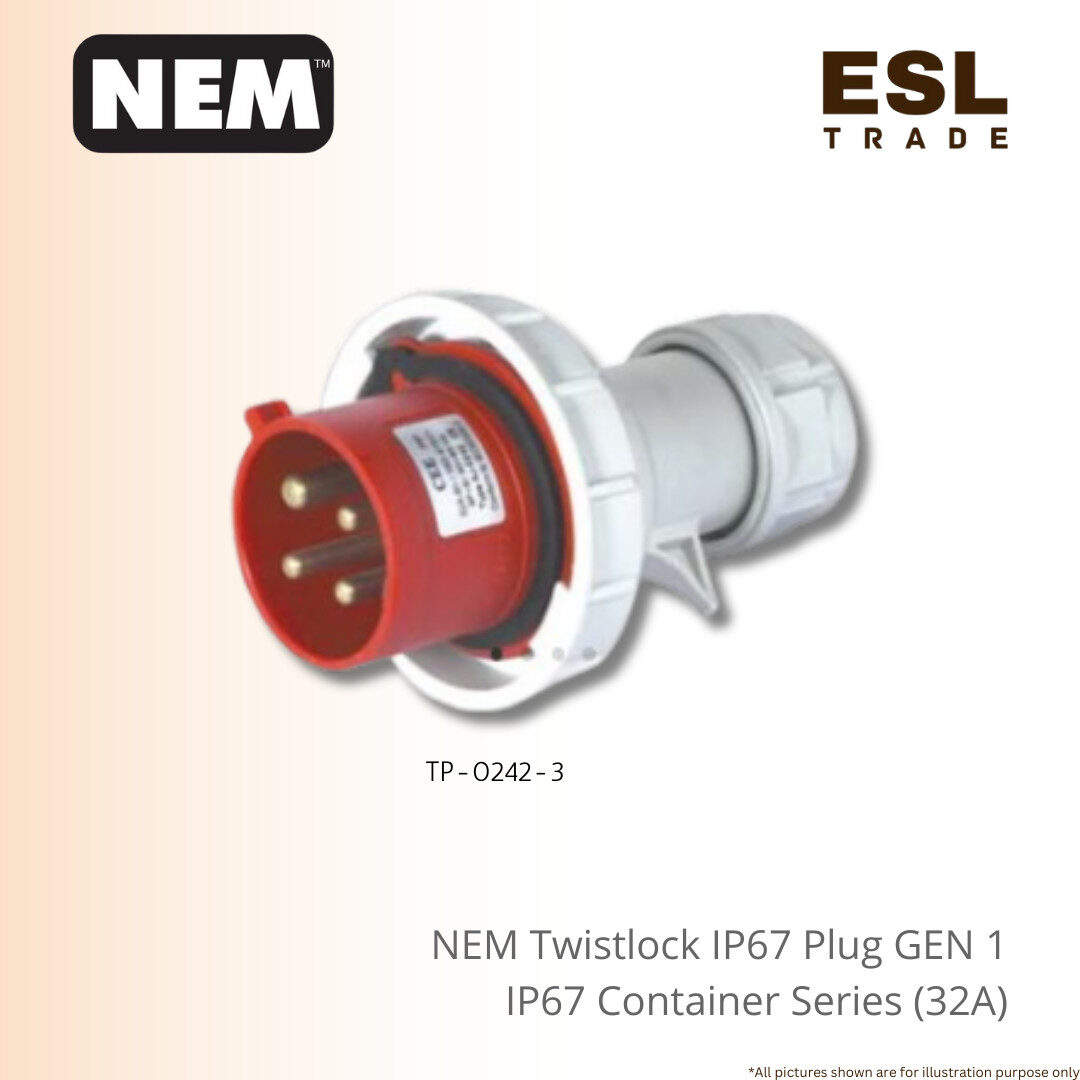

NEM Twistlock IP67 PIug GEN 1 Container IP Rating IP 67 34A Heavy Duty 32A 3-Phase Connector

Description

NEM Twistlock IP67 PIug GEN 1 Container IP Rating IP 67 34A Heavy Duty 32A 3-Phase Connector

The NEM Twistlock IP67 Container Plug is engineered to meet the stringent demands of container power applications.

Its IP67 waterproof rating provides uncompromising protection against water and dust, making it the ideal choice for use in wet, dusty, or exposed environments.

The durable twistlock mechanism ensures a secure and reliable connection that will not accidentally dislodge, a critical safety feature for high-vibration environments like on-board ships or at logistics hubs.

Designed as a professional-grade connector, this plug is rated for 32A and 380-415V, making it a powerful solution for a wide range of container applications.

Its construction is built to withstand heavy-duty use, with precise dimensions and robust materials that ensure a long service life. Whether for powering refrigerated containers, on-site offices, or temporary power distribution, the NEM Twistlock IP67 Container Plug is the definitive choice for professionals who need a secure, reliable, and waterproof power solution that is purpose-built for the job.

Product Specification :

• Model:  TP0242-3.
• Voltage (V):  380-415V
• Protection: IP67
• Application : Container use
• Earth Contact Position : 3h
• Rated Current (A) : 32
• Poles : 3

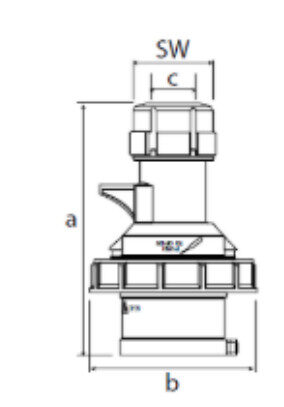

Dimension :

• a (mm) : 146
• b (mm) : 93
• c (mm) : 10-20
• SW (mm) : 50
• Cable Nominal CSA (mm) : 2.5-6
