Description

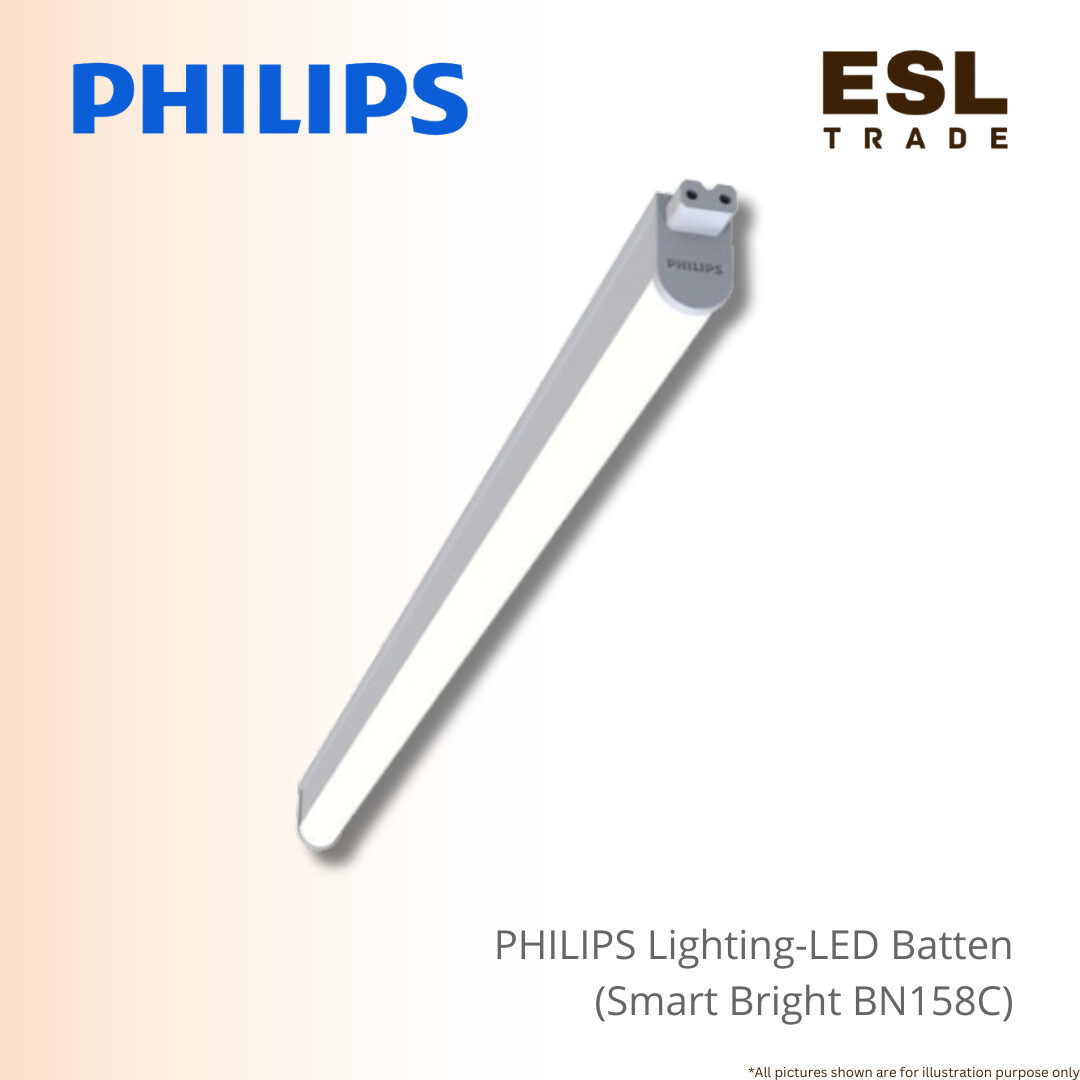

PHILIPS SmartBright LED Batten BN158C IP Rating IP20 Excellent High Efficacy Linear Light Fixture
The Philips SmartBright LED Batten BN158C is a premium, high-efficiency solution for general indoor lighting applications where reliability and bright, uniform illumination are essential.
This modern batten light delivers exceptional performance, boasting a leading Luminous Efficacy of 120 lm/W.
This high efficiency ensures minimum power consumption for maximum light output, resulting in significant energy cost reductions for offices, retail stores, workshops, and general utility areas.
Designed for convenience and aesthetic appeal, the Slim LED Batten features a clean, white (RAL 9003) housing and an opal polycarbonate cover that provides a wide 120° beam angle for uniform light distribution.
The fixture offers CCT flexibility (check specific variants for selectable or fixed CCT) and maintains a high CRI of 80 for natural and comfortable light quality.
Built to Safety Class II standards, the BN158C is robust (IK02) and safe for use in ambient temperatures from -20°C to +40°C.
This Non-Dimmable LED Batten is a highly durable and High Efficacy LED Linear Light that ensures hassle-free, long-lasting performance, featuring an integrated driver and is suitable for mounting on normally flammable surfaces.
Product Features
- General Information :
| Field | Value |
| Driver included | Yes |
| Gear | – |
| Number of gear units | 1 unit |
- Light Technical
| Field | Value |
| Beam angle of light source | 120 degree(s) |
| Correlated Color Temperature (Nom) | Selectable |
| Color rendering index (CRI) | 80 |
| Luminous Efficacy (rated) (Nom) | 120 lm/W |
| Number of light sources | 1 |
| Optic type | Opal |
- Operating and Electrical
| Field | Value |
| Protection class IEC | Safety class II |
| Input Voltage | 220 to 240 V |
| Line Frequency | 50 or 60 Hz |
| Suitable for random switching | Yes |
- Controls and Dimming
| Field | Value |
| Dimmable | No |
| Maximum dim level | Not applicable |
- Mechanical and Housing
| Field | Value |
| Optical cover type | Polycarbonate |
| Housing Color | White RAL 9003 |
| Mech. impact protection code | IK02 |
| Ingress protection code | IP20 |
- Approval and Application
| Field | Value |
| Ambient temperature range | -20 to +40°C |
| CE mark | Yes |
| ENEC mark | – |
| Flammability mark | For mounting on normally flammable surfaces |
| Glow-wire test | Temperature 650°C, duration 30 s |
