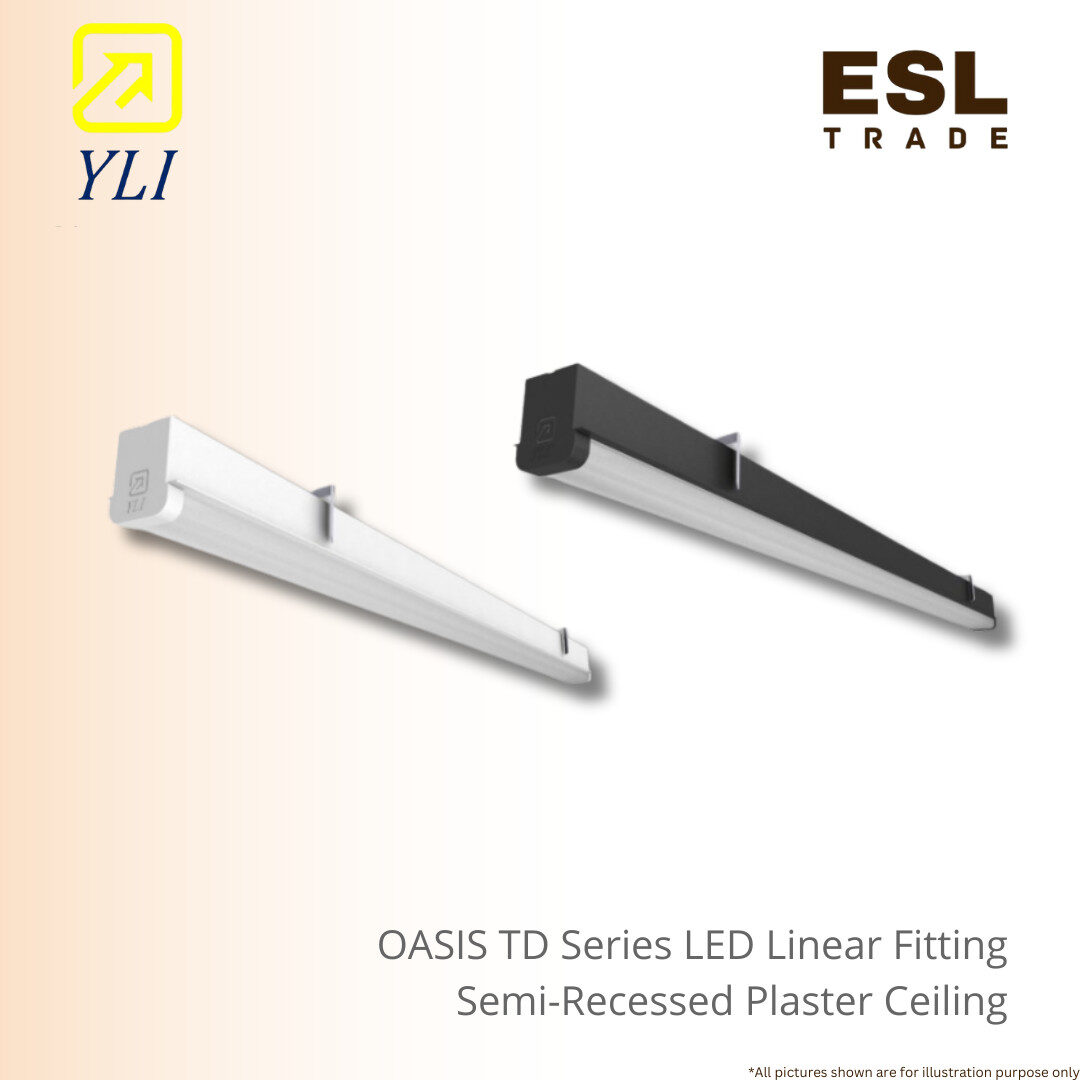

YLI OASIS TD Series LED Linear Fitting (Semi-Recessed Plaster Ceiling)

Description

YLI OASIS TD LED Semi-Recessed Plaster Ceiling Linear Fitting Light

Upgrade your space with the YLI OASIS TD Series LED Linear Plaster Ceiling Light. Designed for a clean, semi-recessed look, this high-performance linear fitting blends seamlessly into any plaster ceiling. Made with a durable extruded aluminum housing, it provides brilliant, long-lasting illumination for up to 50,000 hours.

Luminaires:
• Extruded Aluminium Housing
• Polycarbonate End Cap
• Polycarbonate Flat Diffuser (Opal & Linear)
• Mild Steel Gear Tray & Bracket
• EG Steel Mounting Bracket
• Stove-Coated With Polyester / Epoxy
• Nylon Connecting Devices
• Recessed Plaster Ceiling Mounted

Areas of Application:
Home, Hospitality, Hotels, Offices, Retail, Supermarkets, Restaurants, Public & Commercial Building

Available Colour:
• Black Texture
• White Texture

Model: OS TD-2/RP-SQ
System Lumens: 1100 lm
System Power: 10 W
System Current: 0.09A
CCT: 3000K, 4000K, 6500K
CRI: ≥ 80
Power Factor: 0.5
Lifespan: 50000hrs
Length: 580mm
Cut Out Size: 582mm x 60mm

Model: OS TD-4/RP-SQ
System Lumens: 2200 lm
System Power: 19 W
System Current: 0.08A
CCT: 3000K, 4000K, 6500K
CRI: ≥ 80
Power Factor: 0.9
Lifespan: 50000hrs
Length: 1150mm
Cut Out Size: 1152mm x 60mm

Model: OS TD-6/RP-SQ
System Lumens: 3300 lm
System Power: 29 W
System Current: 0.17A
CCT: 3000K, 4000K, 6500K
CRI: ≥ 80
Power Factor: 0.5/ 0.9
Lifespan: 50000hrs
Length: 1705mm
Cut Out Size: 1707mm x 60mm

Model: OS TD-8/RP-SQ
System Lumens: 4400 lm
System Power: 38 W
System Current: 0.16A
CCT: 3000K, 4000K, 6500K
CRI: ≥ 80
Power Factor: 0.9
Lifespan: 50000hrs
Length: 2270mm
Cut Out Size: 2272mm x 60mm

Model: OS TD-2/RP-SQ-HO
System Lumens: 1500 lm
System Power: 15 W
System Current: 0.12A
CCT: 3000K, 4000K, 6500K
CRI: ≥ 80
Power Factor: 0.5
Lifespan: 50000hrs
Length: 580mm
Cut Out Size: 582mm x 60mm

Model: OS TD-4/RP-SQ-HO
System Lumens: 3000 lm
System Power: 27 W
System Current: 0.12A
CCT: 3000K, 4000K, 6500K
CRI: ≥ 80
Power Factor: 0.9
Lifespan: 50000hrs
Length: 1150mm
Cut Out Size: 1152mm x 60mm

Model: OS TD-6/RP-SQ-HO
System Lumens: 4500 lm
System Power: 42 W
System Current: 0.24A
CCT: 3000K, 4000K, 6500K
CRI: ≥ 80
Power Factor: 0.5/ 0.9
Lifespan: 50000hrs
Length: 1705mm
Cut Out Size: 1707mm x 60mm

Model: OS TD-8/RP-SQ-HO
System Lumens: 6000 lm
System Power: 54 W
System Current: 0.24A
CCT: 3000K, 4000K, 6500K
CRI: ≥ 80
Power Factor: 0.9
Lifespan: 50000hrs
Length: 2270mm
Cut Out Size: 2272mm x 60mm
