Description

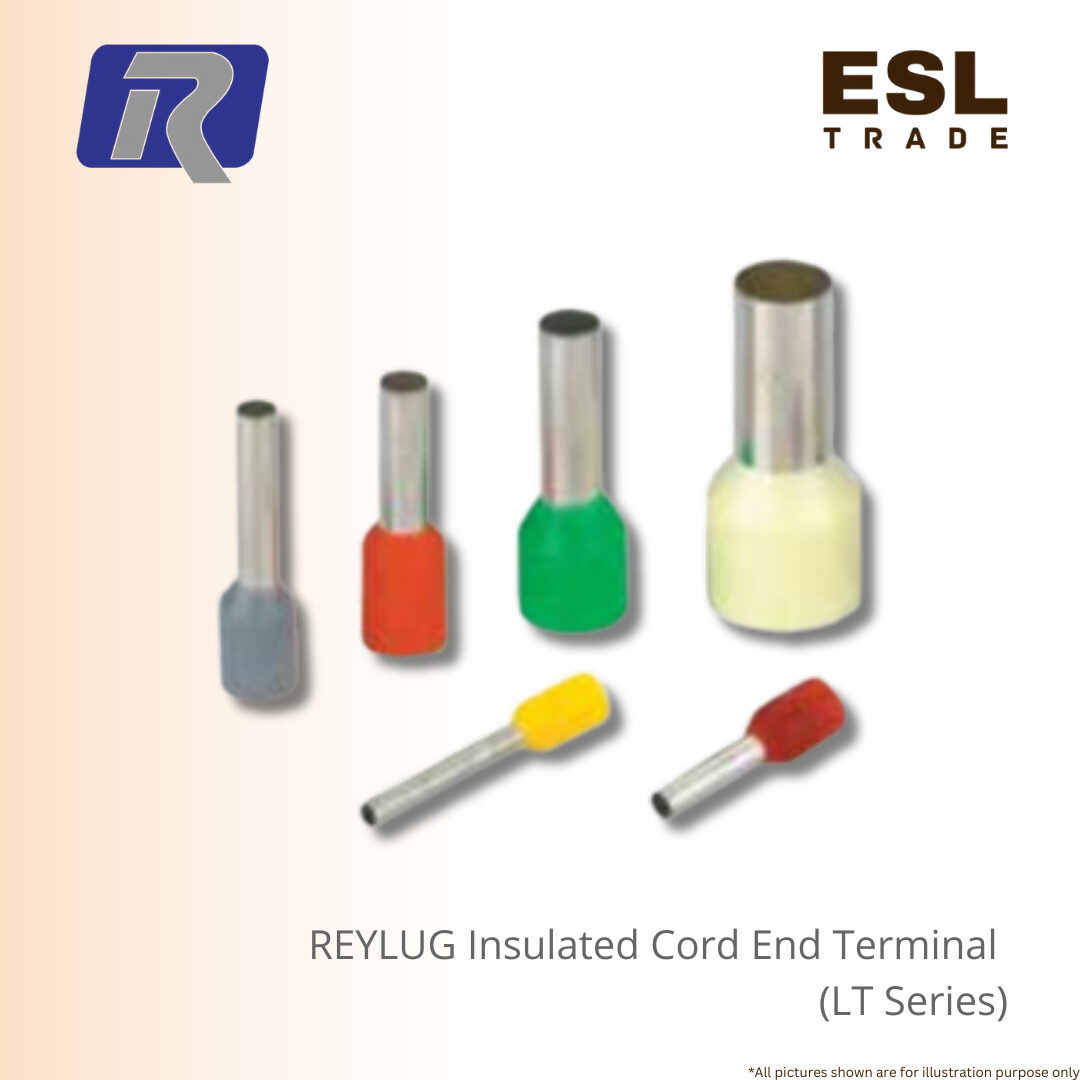

Reyluc Insulated Cord End Terminals [Cable size : 0.25-120mm²] LT Series – Good Security
The Reyluc Insulated Cord-End Terminals are the ultimate solution for achieving professional, secure, and reliable connections in any electrical application.
Designed to terminate the ends of stranded cables, these terminals prevent fraying and ensure optimal electrical contact when inserted into a terminal block, circuit breaker, or other connector.
The high-quality insulation on this cord-end terminal provides a crucial safety barrier, preventing short circuits and offering a clean, organized appearance.
The LT Series offers an unrivaled range of cable sizes, from a very small 0.25mm² all the way up to a heavy-duty 120mm², making it a versatile choice for professionals working across residential, commercial, and industrial projects.
The precision-engineered design allows for effortless insertion of the cable strands, saving valuable time and ensuring a consistent, high-quality termination every time.
By using Reyluc Insulated Cord-End Terminals, you eliminate the risks associated with bare wire ends, such as loose connections and poor conductivity.
For a durable and secure termination solution that you can trust, these terminals are the definitive choice.
Key Features:
- Insulated cord end terminal use to terminate the end of a cable and are widely used in electrical applications.
Specification :

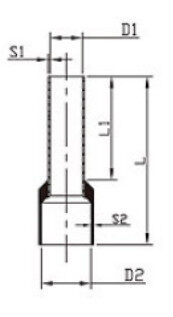

- Dimension : Refer Below
- Color : Refer Below
| Cable Size | F (mm) | C (mm) | Item Code | Colour |
| 0.25mm² | 8 | 0.75 | LT02508 | Light Blue |
| 0.5mm² | 6 | 1 | LT05006 | Orange |
| 0.5mm² | 8 | 1 | LT05008 | Orange |
| 0.5mm² | 10 | 1 | LT05010 | Orange |
| 0.5mm² | 12 | 1 | LT05012 | Orange |
| 0.75mm² | 8 | 1.2 | LT07508 | White |
| 0.75mm² | 10 | 1.2 | LT07510 | White |
| 0.75mm² | 12 | 1.2 | LT07512 | White |
| 1.0mm² | 8 | 1.4 | LT10008 | Red |
| 1.0mm² | 10 | 1.4 | LT10010 | Yellow |
| 1.0mm² | 12 | 1.4 | LT10012 | Yellow |
| 1.0mm² | 14 | 1.4 | LT10014 | Yellow |
| 1.5mm² | 8 | 1.7 | LT15008B | Black |
| 1.5mm² | 10 | 1.7 | LT15010 | Red |
| 1.5mm² | 12 | 1.7 | LT15012 | Red |
| 1.5mm² | 14 | 1.7 | LT15014 | Red |
| 2.5mm² | 10 | 2.2 | LT25010 | Blue |
| 2.5mm² | 12 | 2.2 | LT25012 | Blue |
| 4.0mm² | 10 | 2.8 | LT40010 | Grey |
| 6.0mm² | 12 | 3.6 | LT60012 | Black |
| 10mm² | 12 | 4.5 | LT100012 | Ivory |
| 16mm² | 16 | 5.8 | LT160016 | Green |
| 25mm² | 16 | 7.3 | LT250016 | Brown |
| 35mm² | 20 | 8.8 | LT350020 | Beige |
| 50mm² | 20 | 10.3 | LT500020 | Olive |
| 70mm² | 25 | 12 | LT700025 | Yellow |
| 95mm² | 25 | 13.5 | LT950025 | Red |
| 120mm² | 27 | 16.7 | LT1200027 | Blue |
