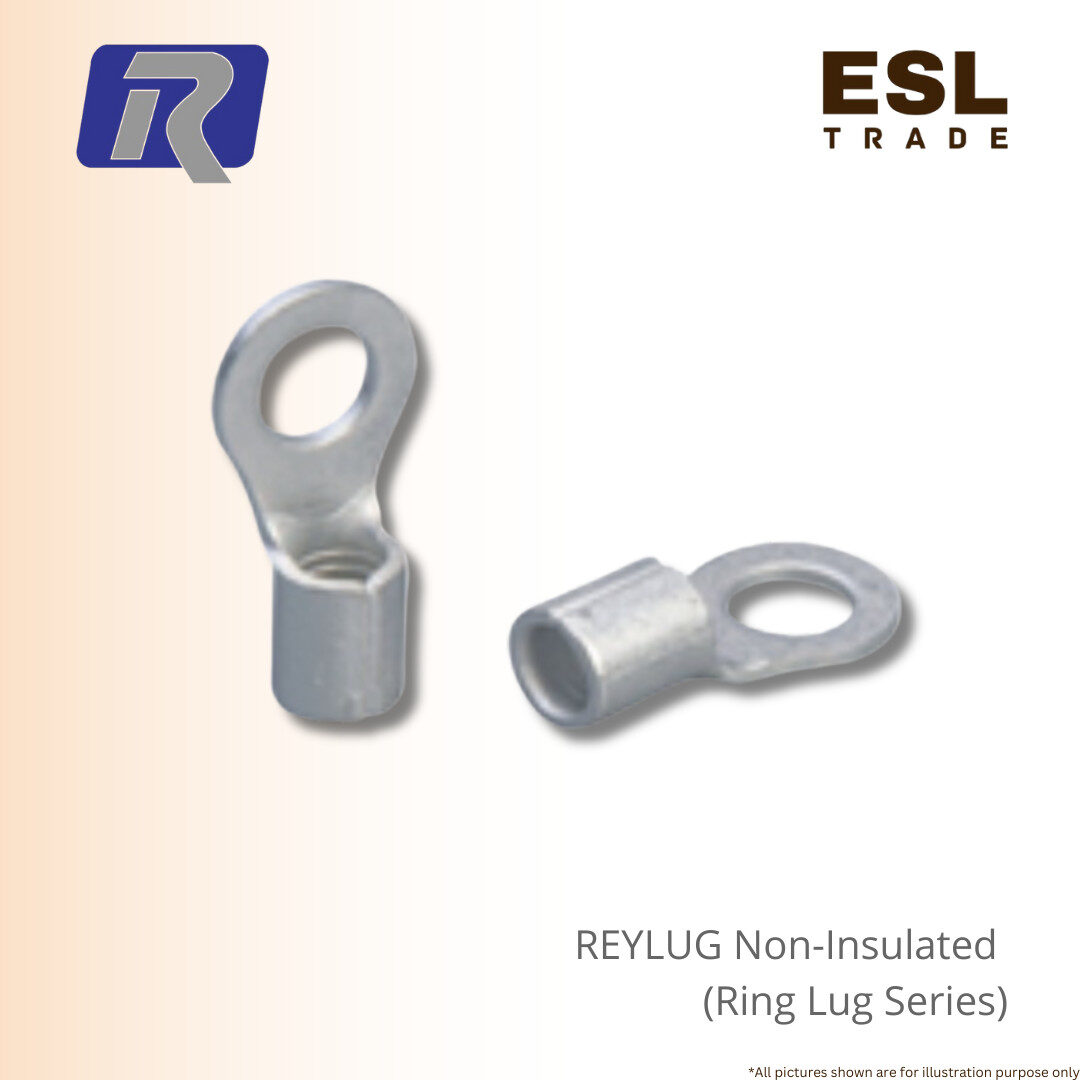

REYLUC Non-Insulated Ring Lug [0.25-42.42mm²] – Superior connector
The REYLUC Non-Insulated Ring Terminal is the ultimate choice for professionals demanding a robust and reliable connection.
Engineered for an exceptionally wide range of conductor sizes, from 0.25mm² to 42.42mm², this versatile electrical connector provides a secure, permanent connection to any terminal stud or post.
Each lug is meticulously crafted from electrolytic copper, then rolled, tin-plated, and brazed at the seams. This superior manufacturing process ensures excellent conductivity and uncompromising resistance to corrosion and wear, which is critical for long-term performance in demanding environments.
Unlike insulated terminals, the non-insulated design of this ring terminal is ideal for high-heat applications or situations where a direct, metal-to-metal connection is required for optimum electrical performance.
The terminal’s tapered ends are meticulously designed for an effortless and complete introduction of conductor strands, saving valuable installation time while guaranteeing a flawless fit.
For the best mechanical and electrical integrity, it is recommended that proper crimping dies and tools are used. By choosing the REYLUC ring terminal, you are selecting a product that offers unrivaled durability and a professional-grade connection you can trust.
Key Features:
- Meticulously designed to ensure complete and easy introduction of the conductor strands.
- For optimum electrical and mechanical performance, it is suggested that proper crimping dies and tools are used which cater to their specific uses.
Materials/Finish:
- Terminals are made from electrolytic copper, rolled tin-plated and brazed at the seams.
Specification :
- Dimension : Refer Below
| No | Cable Size | Dimension (W × d mm) | Item Code |
| 1 | 1.5mm² | 5.5 × 3.7 | 1.25-3 |
| 2 | 1.5mm² | 6.6 × 4.3 | 1.25-4M |
| 3 | 1.5mm² | 8.0 × 5.3 | 1.25-5 |
| 4 | 1.5mm² | 11.6 × 6.4 | 1.25-6 |
| 5 | 1.5mm² | 11.6 × 8.4 | 1.25-8 |
| 6 | 1.5mm² | 13.6 × 10.5 | 1.25-10 |
| 7 | 1.5mm² | 18.0 × 13.0 | 1.25-12 |
| 8 | 2.5mm² | 6.6 × 3.7 | 2-3M |
| 9 | 2.5mm² | 6.6 × 4.3 | 2-4M |
| 10 | 2.5mm² | 9.5 × 5.3 | 2-5′ |
| 11 | 2.5mm² | 12.0 × 6.4 | 2-6′ |
| 12 | 2.5mm² | 12.0 × 8.4 | 2-8′ |
| 13 | 2.5mm² | 13.6 × 10.5 | 2-10′ |
| 14 | 2.5mm² | 19.2 × 13.0 | 2-12′ |
| 15 | 4–6mm² | 7.2 × 3.7 | 5.5-3S |
| 16 | 4–6mm² | 7.2 × 4.3 | 5.5-4S |
| 17 | 4–6mm² | 9.5 × 4.3 | 5.5-4 |
| 18 | 4–6mm² | 9.5 × 5.3 | 5.5-5 |
| 19 | 4–6mm² | 12.0 × 6.4 | 5.5-6S |
| 20 | 4–6mm² | 15.0 × 8.4 | 5.5-8 |
| 21 | 4–6mm² | 15.0 × 10.5 | 5.5-10 |
| 22 | 4–6mm² | 19.2 × 13.0 | 5.5-12 |
| 23 | 10.0mm² | 10.0 × 4.3 | LY8-4 |
| 24 | 16.0mm² | 22.0 × 13.0 | LY12-16 |
