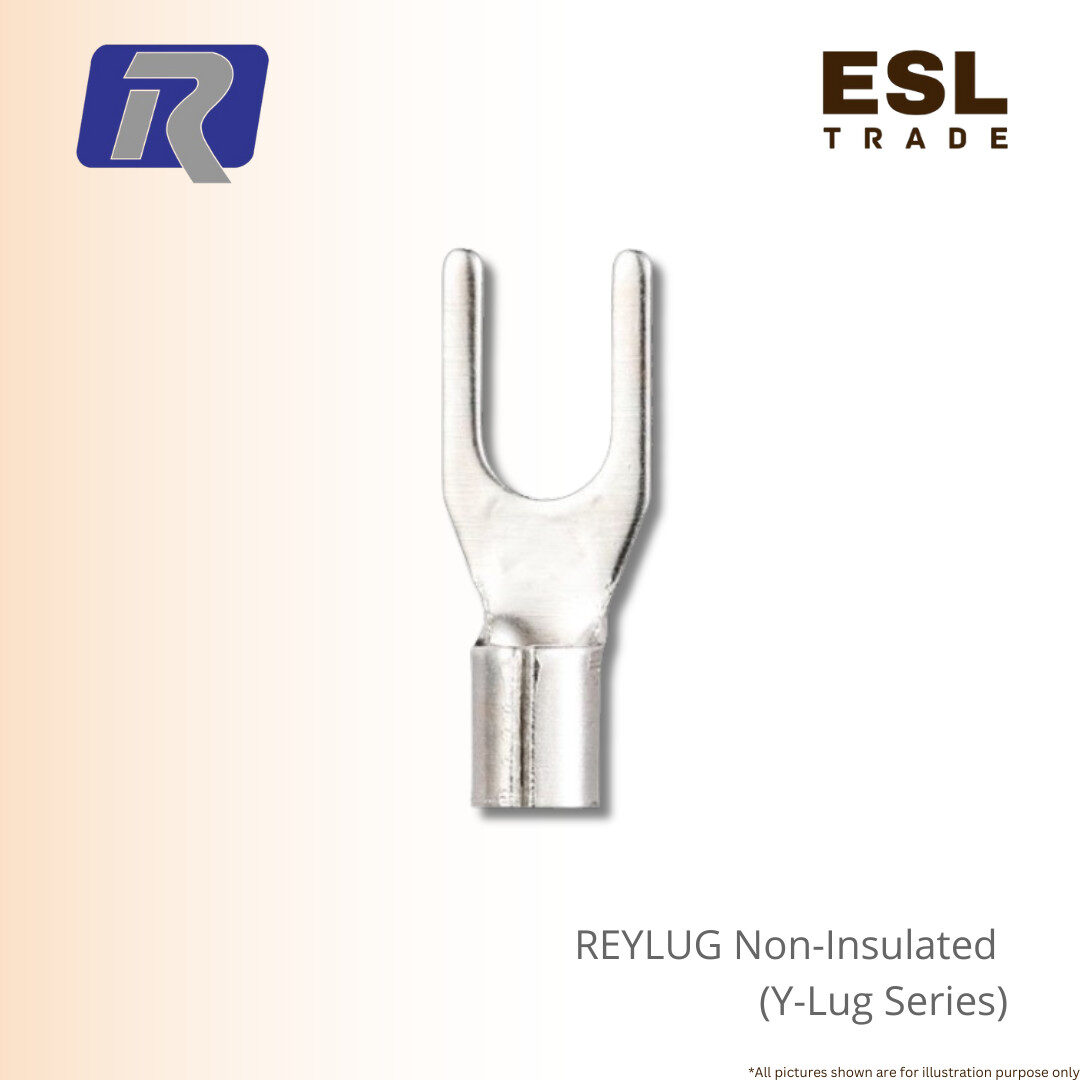

REYLUC Y-Lug Non-Insulated Spade Terminal [1.5-6.0mm²]-Premium Copper
The REYLUC Non-Insulated Y-Lug is an essential electrical component meticulously designed for optimal performance and reliability.
Made from premium electrolytic copper, these terminals offer superior conductivity and are rolled tin-plated for excellent corrosion resistance, ensuring a long-lasting and secure connection.
The seams are expertly brazed, providing a mechanically strong joint that can withstand demanding conditions. This durable construction is what sets the REYLUC Y-Lug apart, guaranteeing uncompromising performance.
Engineered with the user in mind, the terminals feature a design that allows for effortless and complete introduction of conductor strands, which is critical for achieving a perfect crimp.
To unlock the full electrical and mechanical benefits, it’s recommended to use the appropriate crimping tools. This precise joint ensures a secure connection that minimizes resistance, prevents heat buildup, and provides a flawless electrical pathway.
Suitable for wire sizes from 1.5mm² to 6.0mm², these versatile spade terminals are the definitive choice for professional electricians and technicians seeking a high-quality solution for jointing low-voltage conductors.
Key Features:
- Meticulously designed to ensure complete and easy introduction of the conductor strands.
- For optimum electrical and mechanical performance, it is suggested that proper crimping dies and tools are used which cater to their specific uses.
Materials/Finish:
- Terminals are made from electrolytic copper, rolled tin-plated and brazed at the seams.
Specification :

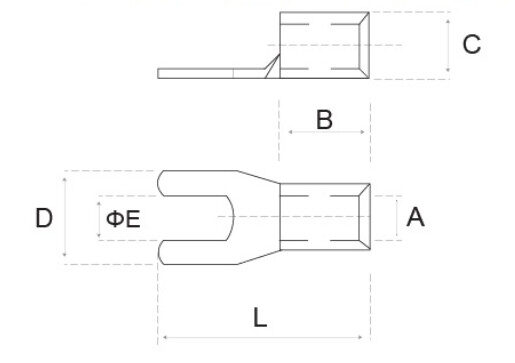

- Dimension : Refer Below
| No | Cable Size (mm²) | Item Code | Dimension (W × d) mm |
| 1 | 1.5mm² | 1.25-3YS | 5.7 × 3.7 |
| 2 | 1.5mm² | 1.25-4YS | 6.4 × 4.3 |
| 3 | 1.5mm² | 1.25-5Y | 8.0 × 5.3 |
| 4 | 1.5mm² | 1.25-6Y | 10.7 × 6.7 |
| 5 | 2.5mm² | 2-3YS | 5.7 × 3.7 |
| 6 | 2.5mm² | 2-4YS | 6.4 × 4.3 |
| 7 | 2.5mm² | 2-5Y | 8.0 × 5.3 |
| 8 | 2.5mm² | 2-6Y | 10.7 × 6.7 |
| 9 | 4–6mm² | 5.5-3Y | 5.7 × 3.7 |
| 10 | 4–6mm² | 5.5-4Y | 6.4 × 4.3 |
| 11 | 4–6mm² | 5.5-5Y | 9.0 × 5.3 |
| 12 | 4–6mm² | 5.5-6Y | 12.0 × 6.4 |
