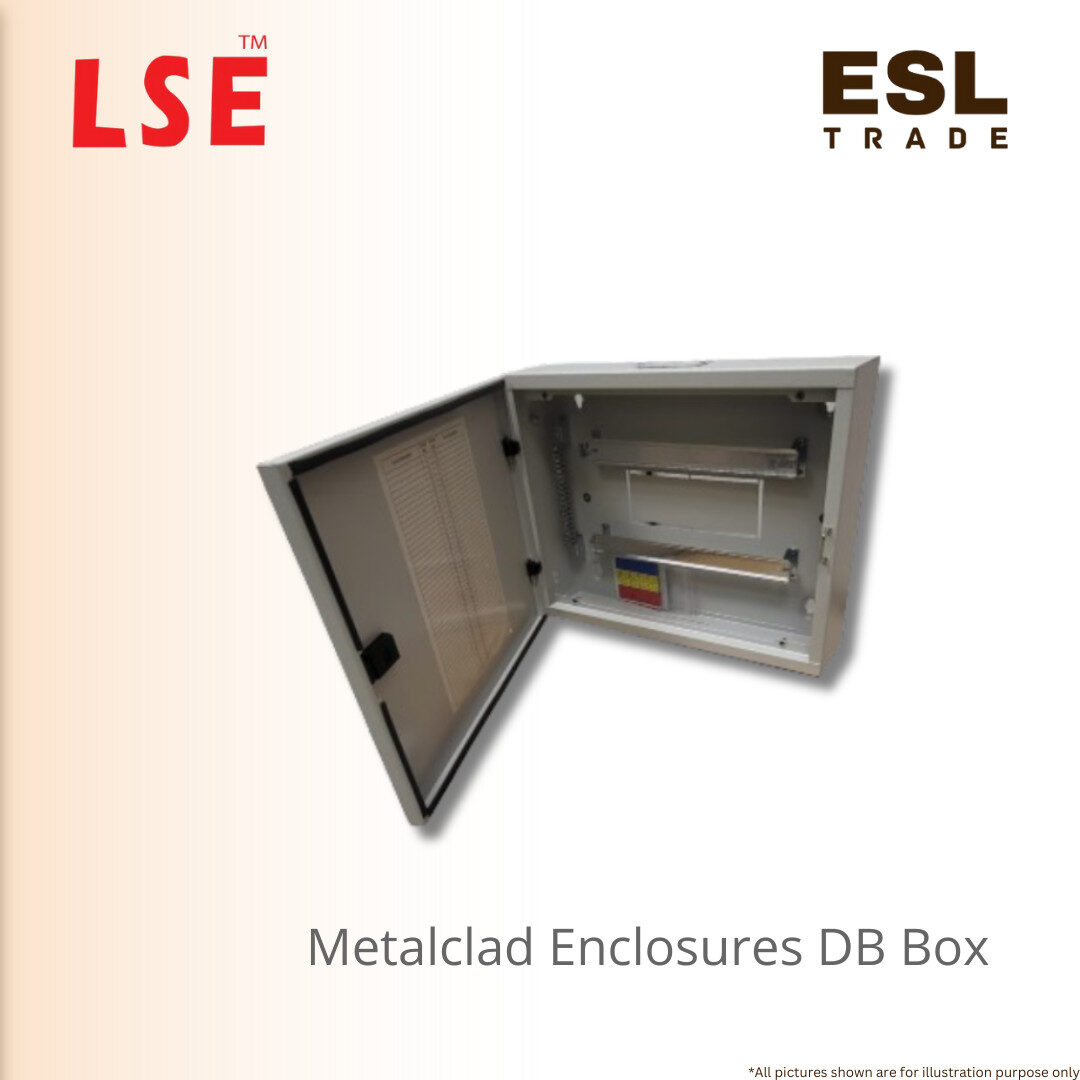

Modular Distribution Box for Circuit Protection

Description

Modular Distribution Box for Circuit Protection

Our modular distribution box is engineered for ultimate flexibility in arranging circuit protection devices. Its innovative design allows for easy attachment to other units, creating a customizable system that fits your specific needs. The matt surface finishing provides long-lasting protection against scratches and rust, ensuring durability. Featuring a double-cover system with a hinged primary main cover and a secondary cover plate, this box offers enhanced safety. Available in a wide range of standard sizes from 1 row 10 ways up to 6 rows 108 ways, this product complies with BS5486 part 12 (IEC 60439-3) standards for guaranteed quality.

Product Features:

• A modular system designed with flexibility in the arrangement of the various circuit protection devices.
• Matt surface finishing for long lasting protection against scratches and rust.
• Specially designed to suit the various types of incoming and outgoing configuration.
• Capable of attachment to each other at the top,bottom or side by side.
• Double cover protection using hinged primary main cover complete with a secondary cover plate to shield the components.
• Standard sizes available from 1 row 10 ways up to 6 rows 108 ways.
• Compliance to BS5486 part 12 (IEC 60439-3) standards.
• Installation of components is made simple with our latest concept in using removable Pan Assembly mounting base. This feature is provided only on project basis.

‘S’ Size Standard Range

Model: LSE-ES10
Descriptions: 1 row 10 ways
Dimension(mm) W×H×D : 300×218×95

Model: LSE-ES14
Descriptions: 1 row 14 ways
Dimension(mm) W×H×D : 370×218×95

Model: LSE-ES18
Descriptions: 1 row 18 ways
Dimension(mm) W×H×D : 430×218×95

Model: LSE-ES22
Descriptions: 1 row 22 ways
Dimension(mm) W×H×D : 490×218×95

‘M’ Size Standard Range

Model: LSE-EM2
Descriptions: 2 row 30 ways
Dimension(mm) W×H×D : 400×360×120

Model: LSE-EM2M
Descriptions: 2 row 18 ways
Dimension(mm) W×H×D : 400×360×120

Model: LSE-EM3
Descriptions: 3 row 45 ways
Dimension(mm) W×H×D : 400×610×120

Model: LSE-EM3M
Descriptions: 3 row 38 ways
Dimension(mm) W×H×D : 400×610×120

Model: LSE-EM4
Descriptions: 4 row 60 ways
Dimension(mm) W×H×D : 400×750×120

Model: LSE-EM4M
Descriptions: 4 row 53 ways
Dimension(mm) W×H×D : 400×750×120

‘L’ Size Standard Range

Model: LSE-EL2
Descriptions: 2 row 36 ways
Dimension(mm) W×H×D : 470×360×120

Model: LSE-EL3
Descriptions: 3 row 54 ways
Dimension(mm) W×H×D : 470×610×120

Model: LSE-EL4
Descriptions: 4 row 72 ways
Dimension(mm) W×H×D : 470×750×120

Model: LSE-EL2M
Descriptions: 2 row 24 ways
Dimension(mm) W×H×D : 470×360×120

Model: LSE-EL3M
Descriptions: 3 row 46 ways
Dimension(mm) W×H×D : 470×610×120

Model: LSE-EL4M
Descriptions: 4 row 64 ways
Dimension(mm) W×H×D : 470×750×120
