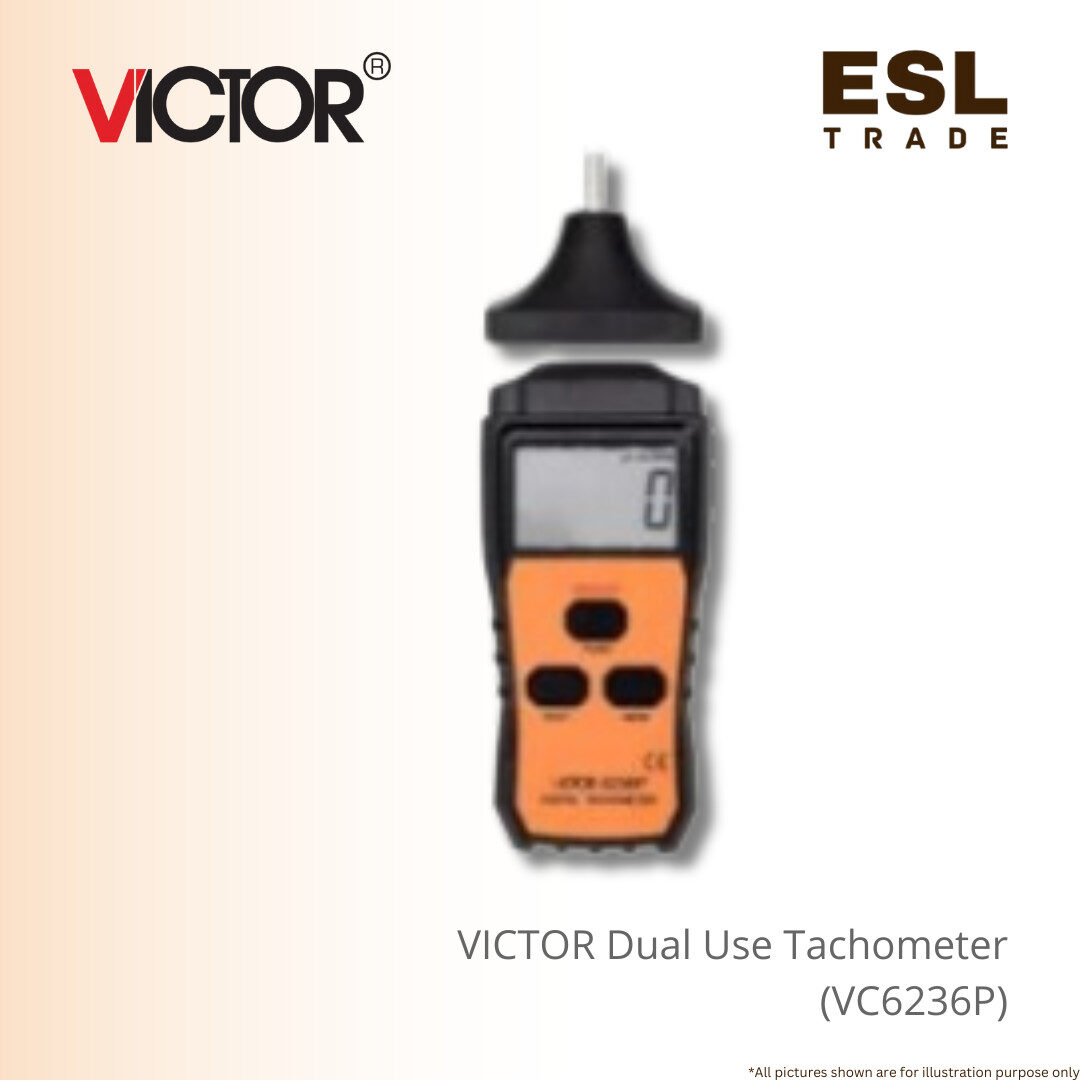

VICTOR Dual Use Tachometer VC6236P Series – Reliable Non Contact & Contact Tester
The VICTOR VC6236P Series Dual Use Tachometer is the ultimate 2-in-1 tool for speed measurement, offering the convenience of a laser tachometer with the superior precision of a contact tachometer.
This versatile device allows you to safely measure rotational speed (RPM) from a distance with its laser mode (up to 99999 RPM), which is ideal for dangerous or hard-to-reach applications.
For maximum accuracy, the contact mode provides direct measurements for both RPM (up to 19999 RPM) and linear speed (1.0–1999.9 m/min).
This professional instrument ensures reliable and precise performance with an accuracy of ±0.05% + 1 and a high 40000 max display count.
Its auto-ranging feature simplifies operation, while included accessories like the reflective tape for laser testing and the contact wheel and touch tips for contact measurement make it highly adaptable to various applications, including motors, fans, and conveyor belts.
With a data store function to track Max/Min values and an auto power-off feature, the VICTOR Dual Use Tachometer is an efficient and indispensable tool for industrial maintenance, HVAC, and automotive professionals.
Specification
| Specification | ||
| Type | Laser + Contact Type | |
| Display | 5 digits LCD display | |
| Range | Laser: 2.5–99999 RPM | |
| Surface Speed | (m/min) 1.0–1999.9 RPM | |
| Contact | 1.0–19999 RPM | |
| Resolution | RPM: 0.1 RPM | |
| Surface Speed | (m/min) 0.01 m/min | |
| Accuracy | ±0.05% + 1 | |
| Time Base | 4 MHz quartz crystal | |
| Features | ||
| Display | 5 digits LCD display | |
| Max. Display | 40000 | |
| Low Battery Indication | Yes | |
| Data Store | Yes | |
| Auto Range | Yes | |
| Auto Power Off | Yes | |
| Max/Min Value | Yes | |
| General Info | ||
| Power Supply | 4 × 1.5V AAA (Not Included) | |
| Product Size | 157 × 65 × 30 mm | |
| Product Weight | Approx 200 g | |
| Standard Accessories | Manual, Battery (Not included), Reflective tape, Contact wheel, Touch tips | |
