Description

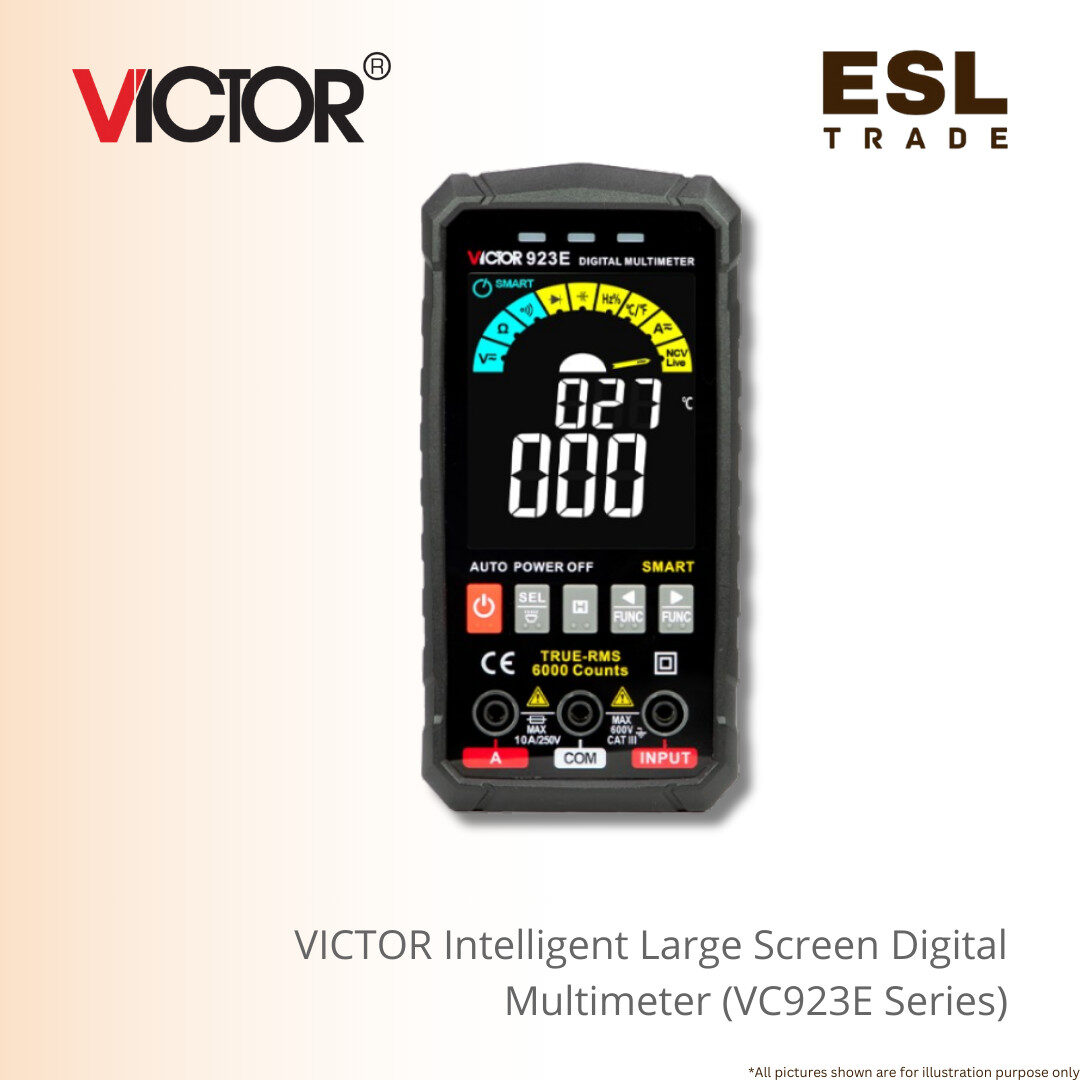

VICTOR Intelligent Large Screen Digital Multimeter VC923E – Intelligent All-in-One Tester
The VICTOR VC923E Intelligent Large Screen Digital Multimeter is a powerful and essential tool designed to simplify electrical diagnostics without sacrificing performance.
Its most striking feature is the prominent large display screen, which ensures clear, easily readable measurements from a distance and in various lighting conditions. This convenience is a major advantage for professionals working in busy or challenging environments.
The “intelligent” design of this versatile multimeter is reflected in its comprehensive range of functions, handling everything from basic AC/DC voltage and current to advanced measurements like capacitance (up to 60mF), frequency (up to 10MHz), and temperature.
With its professional-grade accuracy, the VICTOR VC923E provides reliable and precise readings, giving you the confidence needed for critical tasks.
It is an ideal all-in-one solution for electricians, engineers, and technicians who require a single tool for a wide array of applications.
The device’s functionality, combined with its user-friendly interface, makes it a flawless choice for troubleshooting circuits, diagnosing electronic components, and performing routine maintenance.
This powerful and intelligent multimeter is the definitive tool for anyone seeking a high-performance and efficient solution for their electrical testing needs.
Product Specification:
| Function | Range | Accuracy |
| DC Voltage | 600mV/6V/60V/600V | ±(0.5%+3) |
| AC Voltage | 6V/60V/600V | ±(1.0%+3) |
| DC Current | 600mA/6A/10A | ±(1.2%+3) |
| AC Current | 600mA/6A/10A | ±(1.2%+3) |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ | ±(1.0%+5) |
| Resistance | 60MΩ | ±(2%+10) |
| Capacitance | 6nF/60nF/600nF/6uF/
60uF/600uF |
±(4%+5) |
| Capacitance | 6mF | ±(5%+5) |
| Capacitance | 60mF | ±(10%+10) |
| Frequency | 6Hz/60Hz/600Hz/6kHz/60kHz/
600kHz/6MHz/10MHz |
±(1.0%+3) |
| Temperature | (-40~1000)°C or
(-40~1832)°F |
+3°F |
| General Information | ||
| LCD Display | 5999 max | |
| Overload | OL | |
| Alarm Signal | Audible and visual alarm | |
| Power | 1.5V AAA*4 | |
| Low Voltage | V | |
| Auto Shutdown | No operation for 15 minutes | |
| Size | 144*73*27 mm | |
| Weight | About 235g | |
| Work Environment | 0~40°C (<75%RH) | |
| Storage | -20~60°C (<85%RH) | |
| Jack Prompt | V | |
| NCV | V | |
| Flashlight | V | |
| Data Retention | V | |
| Diode | V | |
| On/Off Buzzer | V | |
