VITALITE Emergency Conversion Kit For T8 LED tube and LED module 4W VEL 120/ECK – High Performance conversion Kit

Description

VITALITE Emergency Conversion Kit For T8 LED tube and LED module 4W VEL 120/ECK – High Performance conversion Kit

The VITALITE VEL 120/ECK is an advanced, high-performance Emergency Conversion Kit engineered to seamlessly integrate with and convert a wide range of standard LED light fittings into compliant emergency luminaires.

This versatile emergency conversion kit is uniquely designed to provide standby power for both T8 LED tubes with built-in drivers and DC LED modules with external drivers.

Its operational flexibility is ensured by supporting both Maintained and Non-Maintained modes, allowing it to meet diverse safety requirements.

The core of its reliability lies in the use of a cutting-edge Lithium Iron Phosphate (LiFePO4) 6.4V/3.3Ah battery, which offers enhanced safety and an extended lifespan compared to older chemistries.

The unit features built-in protection mechanisms, including Constant Power Output and Deep Discharge Protection, which guarantees light levels remain consistent throughout the critical 3 hours of emergency duration.

Housed within a low-profile EG Steel Casing for discreet installation, the VEL 120/ECK is compatible with DC LED modules running between 12V and 54V and AC T8 LED Tubes up to Max. 150V.

With a low maximum power consumption of 4W and a quick 15-hour recharge period, this kit is an efficient

Specification :

• Low Profile EG Steel Casing
• Suitable For LED Module with External Driver or LED T8 Tube With Built-In Driver
• Maintain and Non-Maintain Operation
• Used With Lithium Iron Phosphate
• Battery (LiFePO4)
• Constant Power Output
• Deep Discharge Protection

Usage Application :

• (DC) LED Module with External Driver

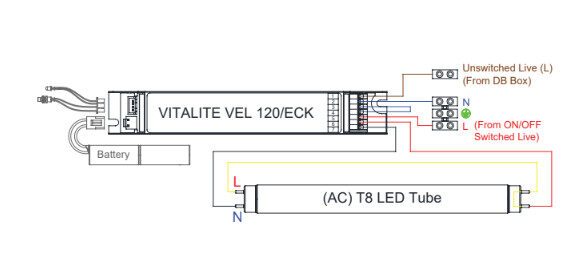

• (AC) LED T8 Tube with Built-In Driver
• (AC) LED A Bulb
• (AC) LED T Stick
• (AC) LED GU10
