VITALITE LED Emergency light – Surface type [3000K, 4000K, 6500K] VEL 120M/BC – Excellent Lighting
The VITALITE VEL 120/M/BC Series is a versatile and high-performance LED Emergency Light specifically designed for Surface Type installations.
This fixture operates in Maintained mode, offering continuous illumination that seamlessly transitions to emergency power upon mains failure.
It is suitable for both Surface Ceiling Mounted and Wall Mounted applications, providing flexibility for commercial and industrial settings.
A key feature of this model is its compatibility with standard Toshiba T8 LED Tube Pro lamps , allowing for flexible lighting designs across various Color Correlated Temperatures (CCT).
Depending on the configuration (up to 2x1200mm tubes) , the fixture can deliver up to a bright 4200 lumens in normal operation , and a clear 750 lumens in emergency mode.
Built for reliability, the VEL 120/M/BC features a sturdy Mild Steel Housing and is rated Class I/IP 20. It guarantees a minimum of 3 hours of emergency duration and utilizes a long-life VLFP 6.4V LiFePO4 battery (Lithium Iron Phosphate).
Adhering to strict compliance standards like MS 619-2-22:2005 , this emergency light is recommended for a minimum mounting height of 3m, ensuring safety and compliance across your entire facility.
Specification :
- Mild Steel Housing
- Polycarbonate Lamp holder
- Toshiba T8 LED Tube
Mounting Method :
- Surface Ceiling Mounted
- Wall Mounted
Model :
| Feature | VEL 120/M/BC 1x 600mm | VEL 120/M/BC 2x 600mm | VEL 120/M/BC 1x 1200mm | VEL 120/M/BC 2x 1200mm |
| Mains Supply | 220−240V 50/60Hz | |||
| Mode of Operation | Maintained | |||
| Lamp | Toshiba T8 LED Tube Pro 600mm 8W | Toshiba T8 LED Tube Pro 600mm 8W | Toshiba T8 LED Tube Pro 1200mm 14W | Toshiba T8 LED Tube Pro 1200mm 14W |
| CCT | 3000K,4000K,6500K | |||
| Emergency Conversion Kit | VEL 120/ECK | |||
| Battery | VLFP 6.4 / 3.3 / 26650 / S | |||
| Emergency Duration | 3 Hours | |||
| Recharge Period | 15 Hours | |||
| Rating | 0.06A/12W/0.89PF | 0.09A/20W/0.91PF | 0.08A/18W/0.90PF | 0.15A/33W/0.91PF |
| Rated Lumen (Normal Mode) | 1100lm | 2200lm | 2100lm | 4200lm |
| Rated Lumen (Emergency Mode) | 650lm | 650lm | 750lm | 750lm |
| Classification/Degree of Protection | Class I / IP 20 | |||
| Max. Operating Temperature (ta) | 40∘C | |||
| Recommended Mounting Height | Min. 3m | |||
| Weight | 0.83 KG | 0.93 KG | 1.13 KG | 1.27 KG |

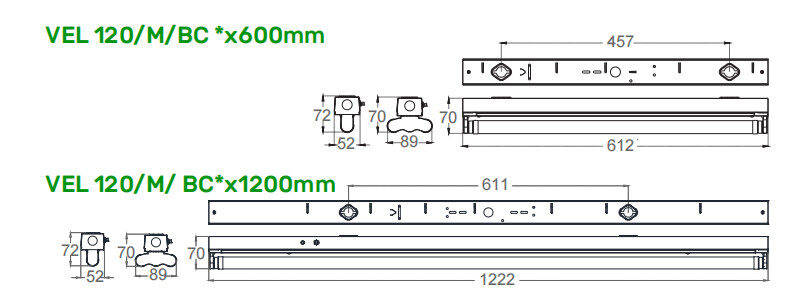

Dimension :
