Description
VITALITE LED Emergency Light Surface Type [3000K, 4000K, 6500K] VEL 120M/D – Excellent Emergency Light
The VITALITE VEL 120/M/D Series is a robust and high-output LED Emergency Light designed for reliable, permanent safety illumination in commercial and industrial settings.
This fixture is a versatile Surface Type unit, suitable for both Surface Ceiling Mounted and Wall Mounted installation.
It operates in Maintained mode, ensuring the light strip remains on continuously, providing both general and emergency lighting from a single fixture.
Engineered for durability, the light features a Mild Steel Housing, an Aluminium Inner Base for effective heat dissipation, and a Polycarbonate Linear Diffuser.
It is powered by a high-specification VLFP 6.4V/3.3Ah LiFePO4 battery, a modern, safer battery chemistry that offers enhanced performance and longevity.
Available in various lengths (2ft and 4ft), the light delivers powerful illumination, with the 4ft models offering up to 3700 lumens in normal operation.
In an emergency, it guarantees 3 hours of continuous operation at a constant 300 lumens. Its Class I, IP20-rated construction and adherence to MS standards make the VEL 120/M/D Series a certified, high-quality solution for minimum 3m mounting heights.
Specification :
- Mild Steel Housing
- Inner Base Is Extruded From Aluminium
- Polycarbonate Linear Diffusser
- Polycarboante End Cap
Mounting Method :
- Surface Ceiling Mounted
- Wall Mounted
Specification :
Feature | VEL 120/M/D2-1 | VEL 120/M/D4-1 | VEL 120/M/D2-2 | VEL 120/M/D4-2 |
Mains Supply | 220−240V 50/60Hz | |||
Mode of Operation | maintance | |||
Lamp | 1x LED-2FT-STRIP-72-G3 | 1x LED-4FT-STRIP-144-G3 | 2x LED-2FT-STRIP-72-G3 | 2x LED-4FT-STRIP-144-G3 |
CCT | 3000K,4000K,6500K | |||
LED Driver | VLD 15/350/43 | VLD 25/500/50 | VLD 25/500/50 | VLD 35/700/50 |
Emergency Conversion Kit | VEL 120/ECK | |||
Battery | VLFP 6.4 / 3.3 / 26650 / S | |||
Emergency Duration | 3 Hours | |||
Recharge Period | 15 Hours | |||
Rating | 0.13A/18W/0.70PF | 0.10A/23W/0.95PF | 0.10A/23W/0.95PF | 0.13A/31W/0.95PF |
Rated Lumen (Normal Mode) | 1800lm | 2700lm | 2500lm | 3700lm |
Rated Lumen (Emergency Mode) | 300lm | 300lm | 300lm | 300lm |
Classification/Degree of Protection | Class I / IP 20 | |||
Max. Operating Temperature (ta) | 40∘C | |||
Recommended Mounting Height | Min. 3m | |||
Weight | 0.82 KG | 1.35 KG | 1.05 KG | 1.68 KG |

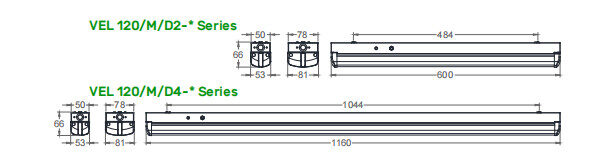

Dimension :
