Description
VITALITE LED Emergency Light – Recessed Type 1.2W VEL 360/RT Series SIRIM Certified, JKR and BOMBA Approve – Excellent Emergency Light
The VITALITE VEL 360/RT is a dedicated recessed LED emergency light designed for concealed installation in modern commercial environments.
This fixture is specifically engineered for a recessed plaster ceiling fit, requiring a neat hole cut of L350mm x W125mm.
Its robust construction features a Mild Steel Housing and is secured by Stainless Steel Spring Clips. The visible component utilizes a Prismatic Diffuser for optimal light distribution.
Operating in Non-Maintained mode, the VEL 360/RT remains off during normal power conditions and activates instantly during a power outage to clearly illuminate escape routes.
Equipped with 20 pieces of LED 2835 lamps , it provides a rated lumen output of 75lm. The unit’s internal NiCd battery is capable of delivering an essential 3 hours of emergency duration.
With a low power rating of 1.2W and an IP20 degree of protection , this LED emergency luminaire is suitable for indoor applications with a minimum recommended mounting height of 3 meters.
The VEL 360/RT is an approved and compliant solution, designed to offer discreet, high-performance safety lighting
Specification :
- Mild Steel Housing
- Prismatic Diffuser
- Stainless Steel Spring Clips
Mounting Method :
- Recessed Plaster Ceiling (Hole Cut L350mm x W125mm)
Product Detail :
- Mains Supply : 220 – 240V 50/60Hz
- Rating : 0.005A / 1.2W / 0.91PF
- Mode of Operation : Non-Maintained
- Rated Lumen : 75lm
- Lamp : LED 2835 (20 PCS)
- Classification / Deg of Protection : Class 1 / IP 20
- Battery : Ni-Cd AA 3.6V 900mAh
- Max. Operating Temperature (ta) : 35°C
- Emergency Duration : 3 Hours
- Recommended Mounting Height : Min. 3m
- Recharge Period : 24 Hours
- Weight : 1.05 KG

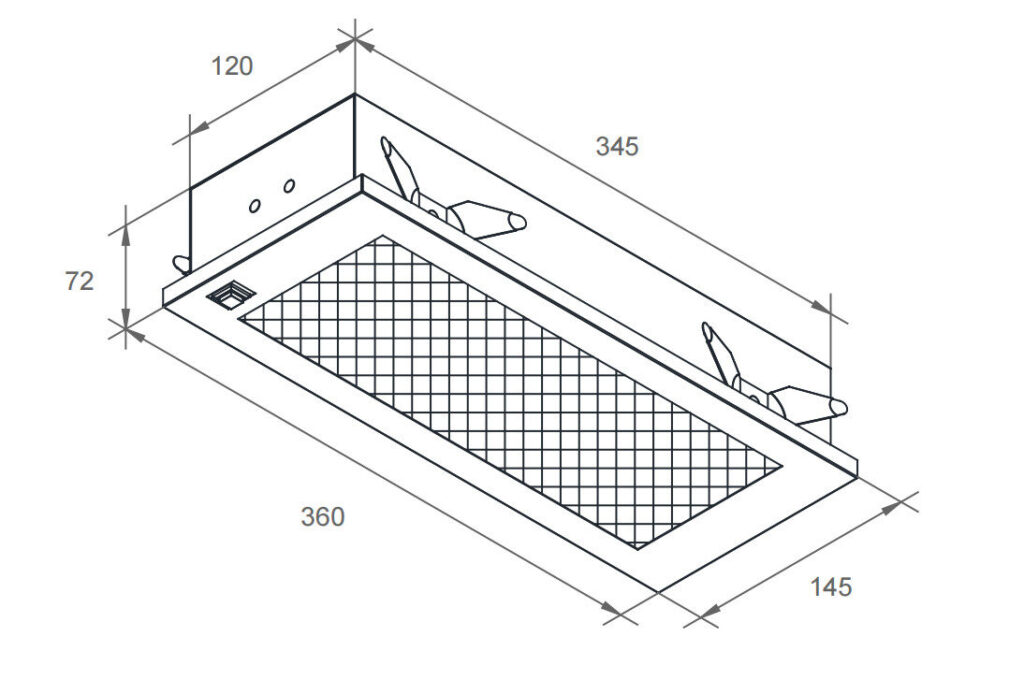

Dimension :
