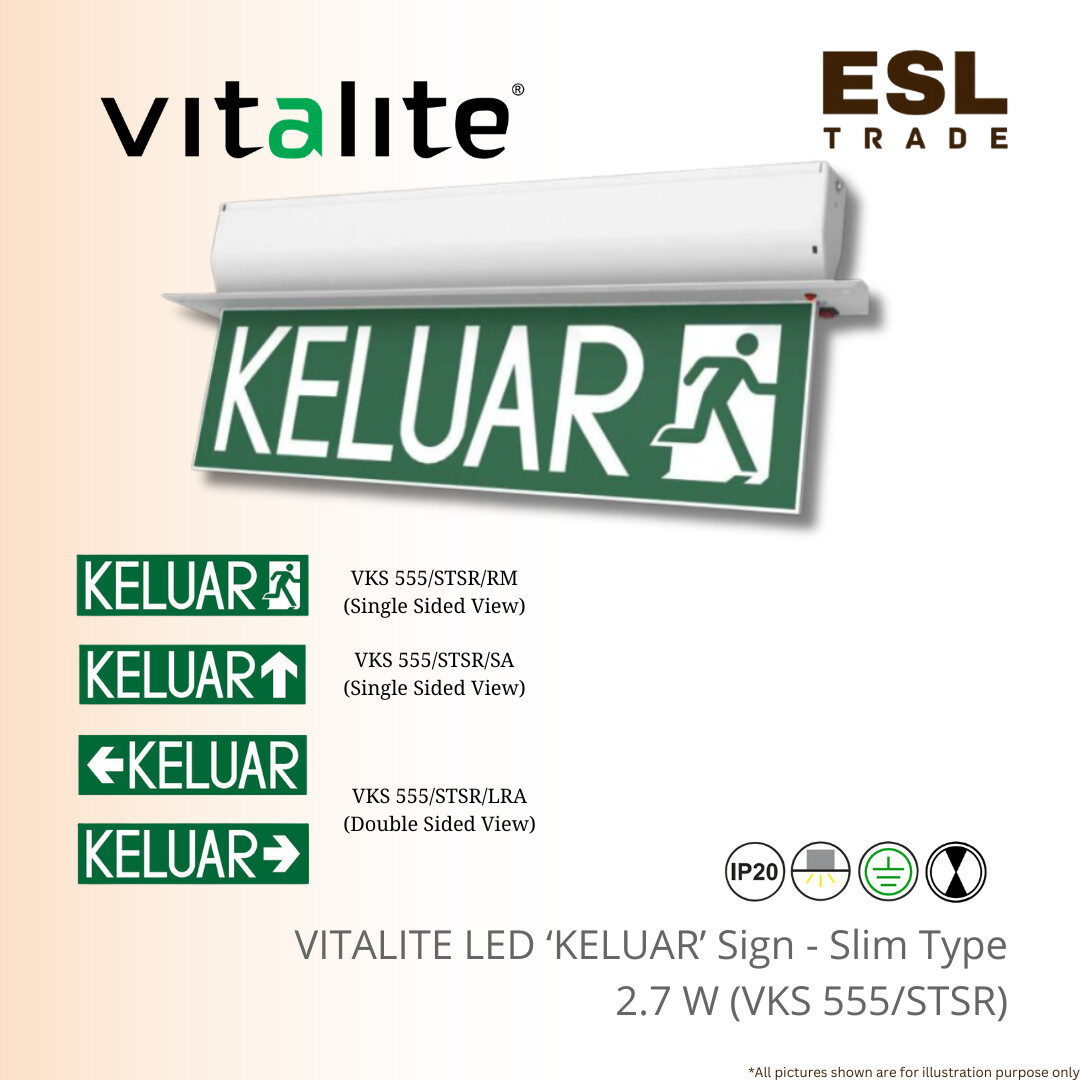

VITALITE LED Keluar Sign – Slim Type (Semi-Recessed) 2.7W VKS 555/STSR SIRIM Certified & Bomba Approved – Excellent signage
The VKS 555/STSR Slim LED KELUAR Sign is an essential safety fixture, engineered for discreet and compliant emergency lighting in commercial spaces.
Designed for a Recessed Plaster Ceiling installation , it features a minimal aesthetic with a required cut-out size of L570mm x W60mm. Its slim profile and overall dimensions (approx. 621mm wide ) make it ideal for modern interiors where a flush finish is desired.
Operating in the Maintained Mode , the sign utilizes 28 pieces of high-efficiency LED 2835 lamps, ensuring the “KELUAR” legend is always clearly visible.
In the event of a power failure, the internal NiCd -AA 3.6V 900mAh battery delivers a robust 3 Hours Emergency Duration. The housing is constructed from resilient Aluminium Extruded Housing , offering durability while keeping the unit’s weight at 2.12 KG.
Crucially, the VKS 555/STSR holds certifications from BOMBA and SIRIM , meeting critical Malaysian safety standards, including MS 983:2004 and MS IEC 60598-1:2012. It accepts a standard Mains Supply of 220-240V 50/60Hz and has a recharge period of 24 hours.
Various legend configurations are available for single or double-sided viewing, such as VKS 555/STSR/RM and VKS 555/STSR/LRA.
Specification :
- Mains Supply : 220 – 240V 50/60Hz
- Rating : 0.01A / 2.7W / 0.85PF
- Mode of Operation Maintained
- Classified : Class 1
- Lamp : LED 2835 (28 PCS)
- Degree of Protection : IP 20
- Battery : Ni-Cd AA 3.6V 900mAh
- Max. Operating Temperature (ta) : 40°C
- Emergency Duration : 3 Hours
- Recommended Mounting Height : Min. 2.3m
- Recharge Period : 24 Hours
- Weight : 2.12 KG
Dimension :
