Description
VITALITE LED DRIVER (Constant Current) 5~35W – VLD Series SIRIM Certified
The VITALITE VLD Series LED Driver is a high-performance, constant current power supply designed to ensure optimal and reliable operation for a wide range of LED modules.
Engineered for versatility, this series supports output power from as low as 5W up to 35W and adjustable output currents spanning 250mA to 700mA across its different models.
This makes the VLD driver an ideal and flexible choice for powering various indoor lighting applications.
The driver is built for durability with a robust Polycarbonate Casing and features an IP20 degree of protection.
It operates efficiently on a standard AC 220-240V, 50/60Hz input supply , delivering high efficiency (up to ≥88%) and a strong power factor (up to ≥0.90) depending on the specific model.

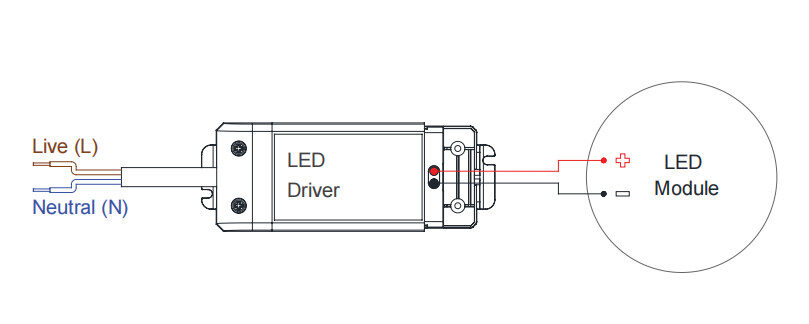

Installation is designed to be straightforward, utilizing a secure screw-type terminal block for easy connection.
The VLD series boasts a long lifespan of up to 30,000 hours and is officially certified by leading regulatory bodies, including SIRIM and Suruhanjaya Tenaga.
Specification :
| Model | Output Current | Forward Voltage | Output Power | Power Factor | Efficiency | THD | Max. Temperature (tc / ta) | Dimension (mm) L1 | Dimension (mm) L2 | Dimension (mm) W | Dimension (mm) H |
| VLD 10/250/40 | 250mA | 20−40V | 5−10W | ≥0.50 | ≥82% | ≤150% | 75∘C/45∘C | 96 | 89 | 33 | 22 |
| VLD 15/350/43 | 350mA | 20−43V | 7−15W | ≥0.50 | ≥84% | ≤150% | 75∘C/45∘C | 109 | 103 | 41 | 24 |
| VLD 25/500/50 | 500mA | 30−50V | 15−25W | ≥0.90 | ≥88% | ≤15% | 75∘C/45∘C | 120 | 115 | 41 | 24 |
| VLD 35/700/50 | 700mA | 30−50V | 20−35W | ≥0.90 | ≥88% | ≤15% | 75∘C/45∘C | 123 | 118 | 46 | 23 |
Specification :
- Polycarbonate Casing
- 2 Core x 0.75mm2 PVC Cable Include
- For Incoming Supply
Input Voltage :
- AC 220-240V, 50/60Hz
Lifespan :
- Up to 30000 Hours (at ta 40°C)
Terminal Block :
- Screw Type (Terminal for leads: 0.5mm² – 1.0mm²)
