VITALITE LED Emergency Light – Recessed Type 13/19W VEL 120/M/427 & VEL 120/M/727 Excellent Emergency Light

Description

VITALITE LED Emergency Light – Recessed Type 13/19W VEL 120/M/427 & VEL 120/M/727 Excellent Emergency Light

The VITALITE VEL 120/M series is a premium recessed LED emergency light designed for seamless integration into false or plaster ceilings. This fixture operates in maintained mode, ensuring the light is used for general illumination during normal power conditions (up to 1500 lumens for VEL 120/M/727) while simultaneously providing crucial emergency lighting.

Engineered for safety and compliance, the unit features a reliable 3-hour emergency duration utilizing an advanced Lithium Iron Phosphate (LiFePO₄) battery. This type of battery (VLFP 6.4/3.3/26650/S) offers superior longevity and thermal stability compared to older chemistries. The light is suitable for a minimum mounting height of 3 meters.

With two available power ratings (13W and 19W) and corresponding normal mode outputs (700lm and 1500lm), you can select the perfect brightness for any interior commercial or public space. The light offers color temperature options of 3000K, 4000K, and 6500K for versatile application matching. Encased in a mild steel housing with an IP20 rating, the VEL 120/M provides a subtle, aesthetic, and high-performance safety solution, ensuring peace of mind and regulatory compliance.

Specification

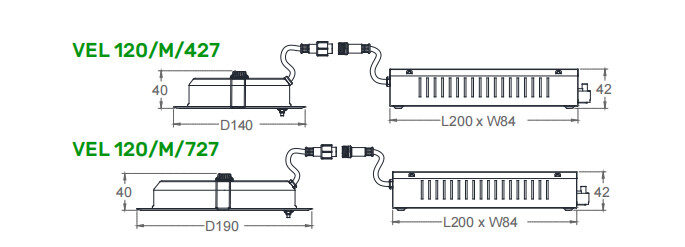

Model : VEL 120/M/427

• Mains Supply : 220-240V 50/60Hz
• Mode of Operation: Maintained
• Lamp : OS 302-R-30-xxxxK-G2,
• CCT : 3000K, 4000K, 6500K
• LED Driver : VLD 10/250/40
• Emergency Conversion Kit: VEL 120/ECK
• Battery : VLFP 6.4 / 3.3 / 26650 / S
• Emergency Duration: 3 Hours
  Recharge Period : 15 Hours
• Rating : 0.09A / 13W / 0.58PF
• Rated Lumen Normal Mode : 700lm
• Rated Lumen Emergency Mode : 150lm
• Classification/Degree of Protection : Class I / IP 20
• Max. Operating Temperature (ta) : 40°C
• Recommended Mounting Height : Min. 3m
• Weight: 0.81 KG

Model : VEL 120/M/727

• Mains Supply : 220-240V 50/60Hz
• Mode of Operation : Maintained
• Lamp : OS 602-R-48-xxxxK-G2
• CCT : 3000K, 4000K, 6500K
• LED Driver : VLD 15/350/43
• Emergency Conversion Kit : VEL 120/ECK
• Battery : VLFP 6.4 / 3.3 / 26650 / S
• Emergency Duration : 3 Hours
• Recharge Period : 15 Hours
• Rating : 0.13A / 19W / 0.58PF
• Rated Lumen Normal Mode : 1500lm
• Rated Lumen Emergency Mode : 200lm
• Classification/Degree of Protection : Class I / IP 20
• Max. Operating Temperature (ta) : 40°C
• Recommended Mounting Height : Min. 3m
• Weight : 0.96 KG
