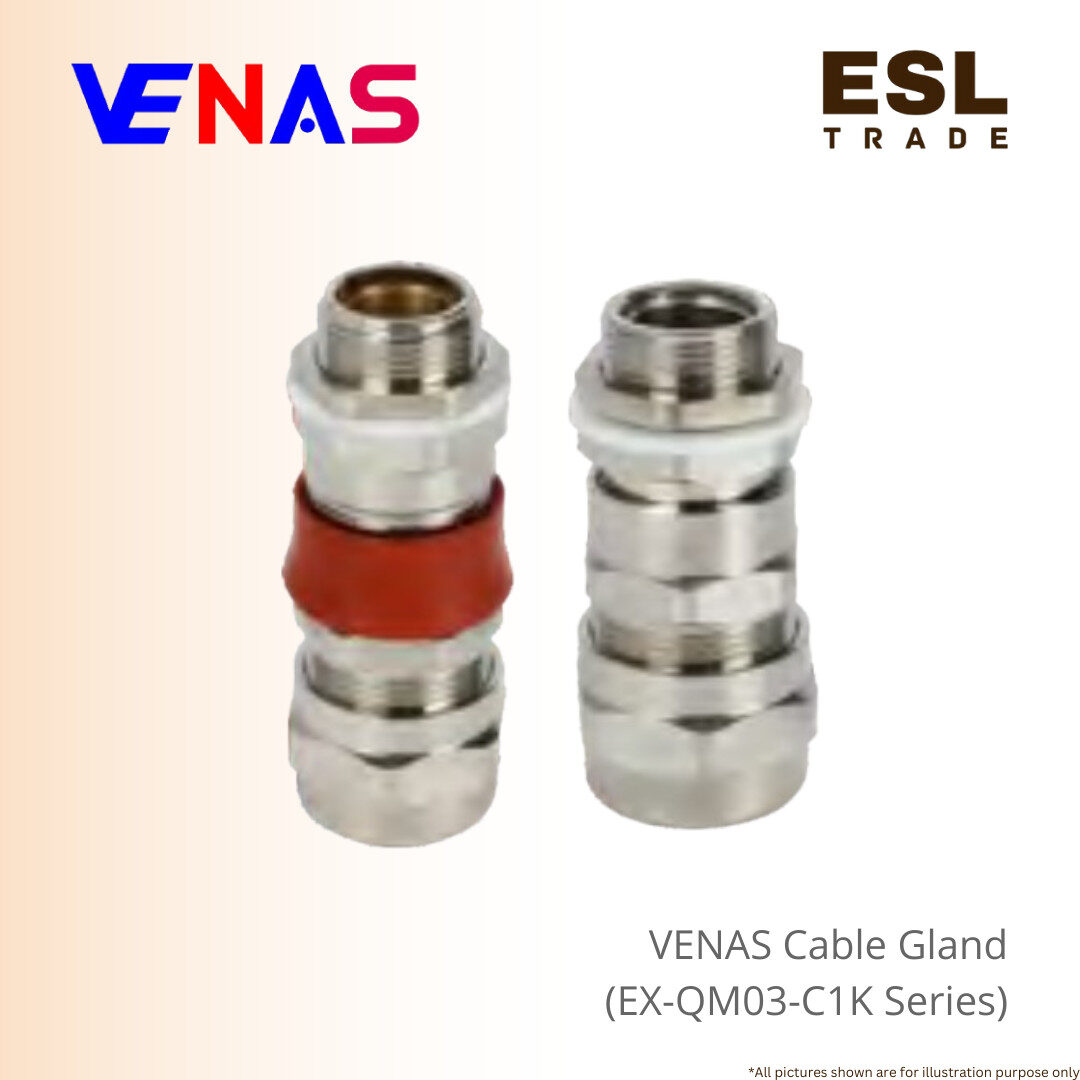

VENAS Cable Gland EX-QM03-C1K Series IP Rating IP66/IP68 Excellent for Explosion-Proof Cable Gland
The VENAS Ex-QM03-C1K Series Cable Gland is a premium, robust solution designed to secure electrical cables entering enclosures in the world’s harshest industrial environments.
This series is engineered for complete safety and regulatory compliance in Zone 1, 2, 21, and 22 hazardous locations, which include areas with high concentrations of flammable gases, vapors, or combustible dusts.
Safety is confirmed by comprehensive global certifications: the gland carries both ATEX (II2 GD) and IECEx markings.
It utilizes a sophisticated multi-protection concept, offering Ex eb (Increased Safety), Ex db (Flameproof), and Ex tb (Dust Ignition Protection), guaranteeing that any internal sparks are contained and external explosive atmospheres are prevented from ignition.
Constructed for extreme durability, the Ex-QM03-C1K is rated at an exceptional IP66/IP68.
This superior ingress protection ensures the cable gland is completely sealed against fine dust particles and protected from long-term water immersion, making it ideal for marine, offshore, and harsh processing plants.
Its functional range is outstanding, operating reliably in ambient temperatures from a very low -50°C to a high +80°C.
Furthermore, the design flexibility allows for easy integration into existing infrastructure, supporting both Metric and NPT connection threads.
The VENAS Ex-QM03-C1K Series is the definitive choice for uncompromising safety and long-term performance in hazardous area electrical installations.
Product Features :
| Field | Value |
| Model | Ex-QM03-C1K |
| Marking ATEX | II2 GD Ex eb IIC Gb/ Ex db IIC Gb Ex tb IIIC Db IP66/IP68 |
| Marking IECEx | Ex eb IIC Gb/ Ex db IIC Gb Ex tb IIIC Db IP66/IP68 |
| Ambient Temperature | -50°C≤Tamb≤+80°C |
| Connection Thread | Metric Thread, NPT Thread |
| Standard | IEC60079-0:2017, IEC60079-1:2014, IEC60079-7:2017, IEC60079-31:2013, EN60079-0:2012+A11:2013, EN60079-1:2014, EN60079-7:2015, N60079-31:2014 |
| Rating | Zone 1&2, Zone 21&22 |
