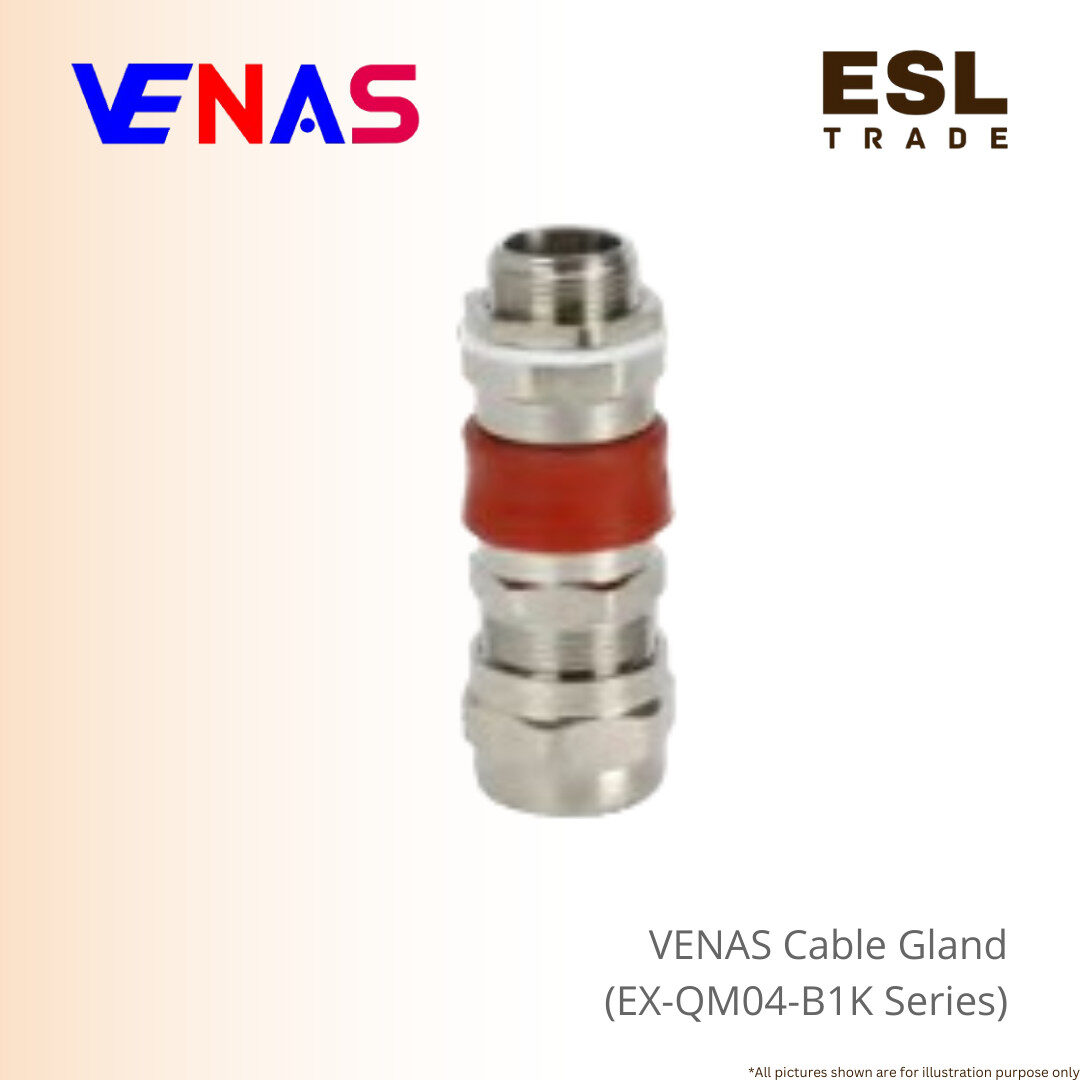

VENAS Cable Gland EX-QM04-B1K Series IP Rating IP66/IP68 Excellent for Heavy-Duty Explosion-Proof Armored Cable Gland
The VENAS Ex-QM04-B1K Series Cable Gland is engineered as the definitive solution for terminating armored cables in the most volatile hazardous environments.
Designed with a robust dual seal, this gland guarantees optimal cable retention and maximum sealing integrity, which is essential for long-term safety and performance.
Fully compliant with global safety mandates, the gland holds ATEX (II2 GD) and IECEx certifications, making it universally approved for Zone 1 & 2 (gas) and Zone 21 & 22 (dust) classified areas.
The multi-protection design, incorporating Ex db (Flameproof), Ex eb (Increased Safety), and Ex tb (Dust Ignition Protection), ensures comprehensive protection against all ignition risks.
Durability is a key feature, highlighted by the superior IP66/IP68 rating, which provides complete sealing against dust and prolonged water immersion.
Built to withstand extreme climatic conditions, the Ex-QM04-B1K operates reliably across a remarkable ambient temperature range from a freezing-50°C up to a high +80°C.
Its versatile design supports seamless installation into diverse systems, thanks to compatibility with both Metric Thread and NPT Thread connections.
Choose the Ex-QM04-B1K for uncompromising safety, durability, and certification when terminating armored cables in critical hazardous location applications.
Product Features :
| Field | Value |
| Series | Ex-QM04-B1K Series |
| Description | Dual seal, suitable for armored cable. Degree of protection: IP66/IP68. |
| Model | Ex-QM04-B1K |
| Marking ATEX | (4) II2 GD Ex eb IIC Gb/ Ex db IIC Gb Ex tb IIIC Db IP66/IP68 |
| Marking IECEx | Ex eb IIC Gb/ Ex db IIC Gb Ex tb IIIC Db IP66/IP68 |
| Ambient Temperature | $-50^{\circ}\text{C} \leq \text{Tamb} \leq +80^{\circ}\text{C}$ |
| Connection Thread | Metric Thread, NPT Thread |
| Standard | IEC60079-0:2017, IEC60079-1:2014, IEC60079-7:2017, IEC60079-31:2013, EN60079-0:2012+A11:2013, EN60079-1:2014, EN60079-7:2015, N60079-31:2014 |
| Rating | Zone 1&2, Zone 21&22 |
