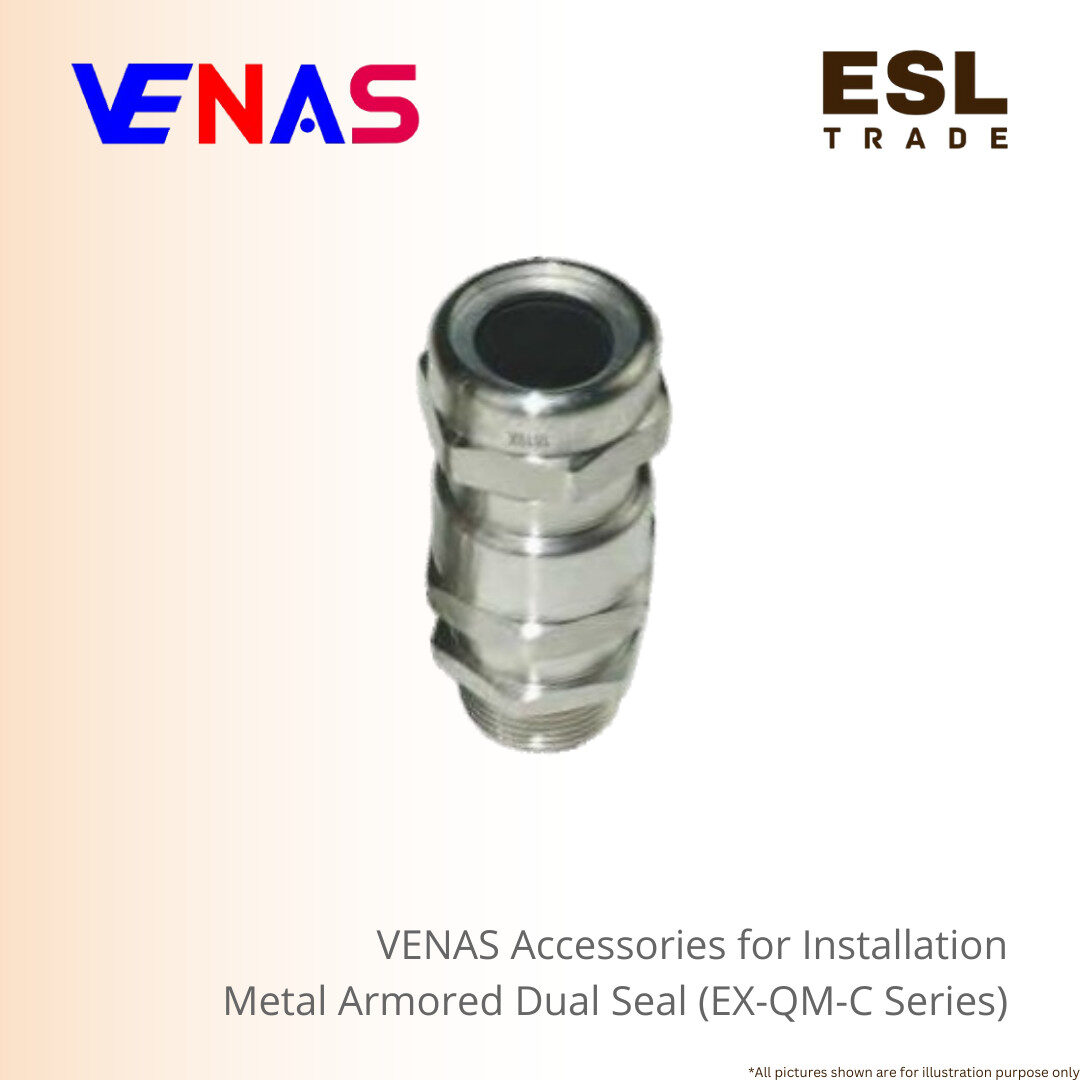

VENAS Metal Armored Dual Seal Cable Gland EX-QM-C Series IP RatingIP66/IP67 Excellent Flameproof Barrier Gland for Armored Cables

Description

VENAS Metal Armored Dual Seal Cable Gland EX-QM-C Series IP RatingIP66/IP67 Excellent Flameproof Barrier Gland for Armored Cables

The VENAS EX-QM-C Series Metal Armored Dual Seal Cable Gland is a premium, high-integrity cable entry solution specifically designed for Ex d (Flameproof) enclosures in Gas Zones 1 & 2 and Dust Zones 21 & 22.

This cable gland incorporates a barrier seal achieved through the use of a sealing compound, which hardens in place.

This compound forms a reliable, gas-tight seal around the individual insulated conductors, preventing the passage of explosive gases or flames into the associated flameproof enclosure, thereby maintaining its Ex d integrity.

Constructed from robust metal (e.g., nickel-plated brass), the EX-QM-C is built to provide exceptional mechanical retention for armored cables while resisting severe industrial corrosion and impact.

The Dual Seal design features two independent sealing points the barrier seal at the conductors and a separate seal on the outer cable sheath offering maximum redundancy and environmental protection.

The gland boasts a best-in-class ingress protection rating of IP66-IP68, ensuring total defense against dust, powerful water jets, and prolonged submersion.

Furthermore, its extreme operational temperature range of -60°C to +100°C ensures reliable performance across the globe’s harshest environments.

Available with both standard Metric and optional NPT threads, the VENAS EX-QM-C is the definitive, certified accessory for power and control armored cables requiring a positive barrier seal into flameproof equipment.

Product Features :

• Series: EX-QM-C (Metal Armored Dual Seal Cable Gland).

• Protection Method: Dual Certification for Ex d (Flameproof) and Ex e (Increased Safety), marked as Ex de IIC Gb and Ex tb IIIC Db.

• Sealing Method: Barrier Seal (requires sealing compound to encapsulate conductors), achieving a gas/flame-tight seal.

• Material: Metal construction (e.g., Nickel-Plated Brass) for high mechanical strength and corrosion resistance.

• Cable Type: Suitable for Armored Cable with a Dual Seal design (inner barrier and outer environmental seal).

• Ingress Protection: IP66 to IP68 (Dust-tight, protected against powerful water jets and continuous submersion).

• Hazardous Location Ratings: Certified for Zone 1 & 2 (Gas) and Zone 21 & 22 (Dust).

• Ambient Temperature Range: Extreme range from -60°C to +100°C.

• Connection Thread: Metric Thread (Standard) and NPT Thread (Optional).

• Functionality: Provides a flameproof barrier, armor clamping, and dual environmental sealing.
