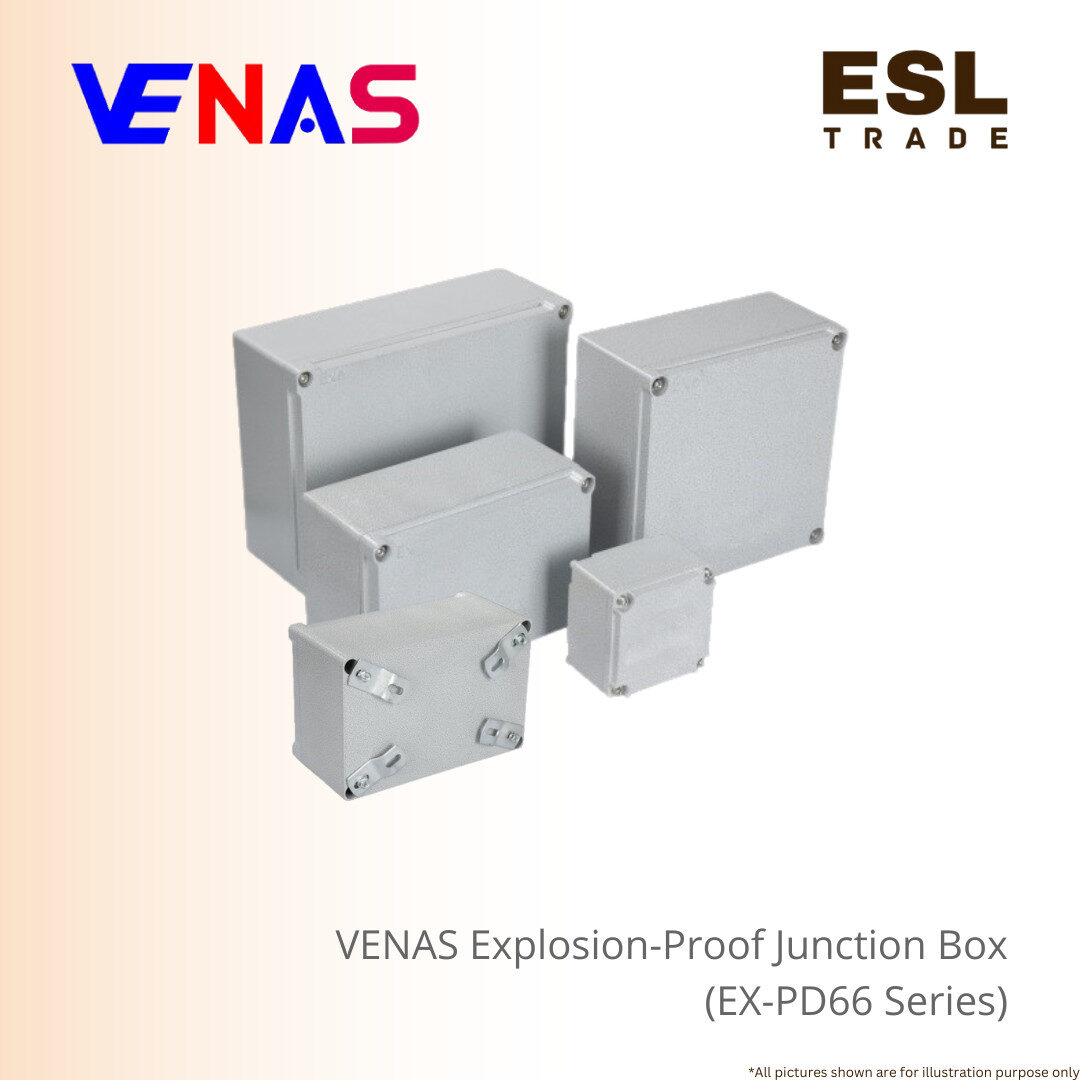

VENAS Explosion Proof Junction Box IP Rating IP66 EX-PD66 Excellent Explosion Proof Junction Box
The VENAS EX-PD66 Series Explosion-Proof Junction Box is the robust, reliable solution for electrical distribution and cable management in hazardous industrial environments.
Constructed from high-quality aluminum alloy with exposed stainless steel fasteners, the PD66 series offers excellent ruggedness and is specifically designed for locations where combustible gases and explosive dusts are present.
The EX-PD66 is compliant with stringent international safety standards, including ATEX (Pending) and IECEx (Pending) certifications.
It carries high protection ratings such as Ex eb IIC T6…T4 Gb for gas and Ex tb IIIC T80ºC… T130°C Db IP66 for dust, ensuring protection against ignition and ingress.
Highly versatile, the box is available in seven shape codes (Type A through G) and supports a maximum rated voltage of 690VAC.
The maximum rated current reaches 115A for 35 mm² cable connections. With a broad ambient temperature range (down to -60ºC, the EX-PD66 is ideal for severe applications, including Petrochemical Processing Facilities, Power Plants, and Heavy Industrials.
Choose the EX-PD66 for superior safety, compliance, and long-term
Product Features :
-
Construction Material: High-quality Aluminum alloy enclosure with stainless steel exposed fasteners.
-
Protection Rating: Explosion-proof, designed to be dust-tight and water-tight.
-
Ingress Protection: Rated at IP66.
-
Certifications (Pending): ATEX and IECEx.
-
Gas Protection Marking: II 2 G Ex eb IIC T6…T4 Gb.
-
Dust Protection Marking: II 2 D Ex tb IIIC $T80°C… T130°C Db IP66.
-
Rated Voltage: Maximum 690 VAC.
-
Rated Current: Up to 115A for 35 mm² wire.
-
Ambient Temperature Range: Operates down to -60ºC.
-
Available Shapes: Comes in seven design/shape codes (A, B, C, D, E, F, G).
Product Dimension :
