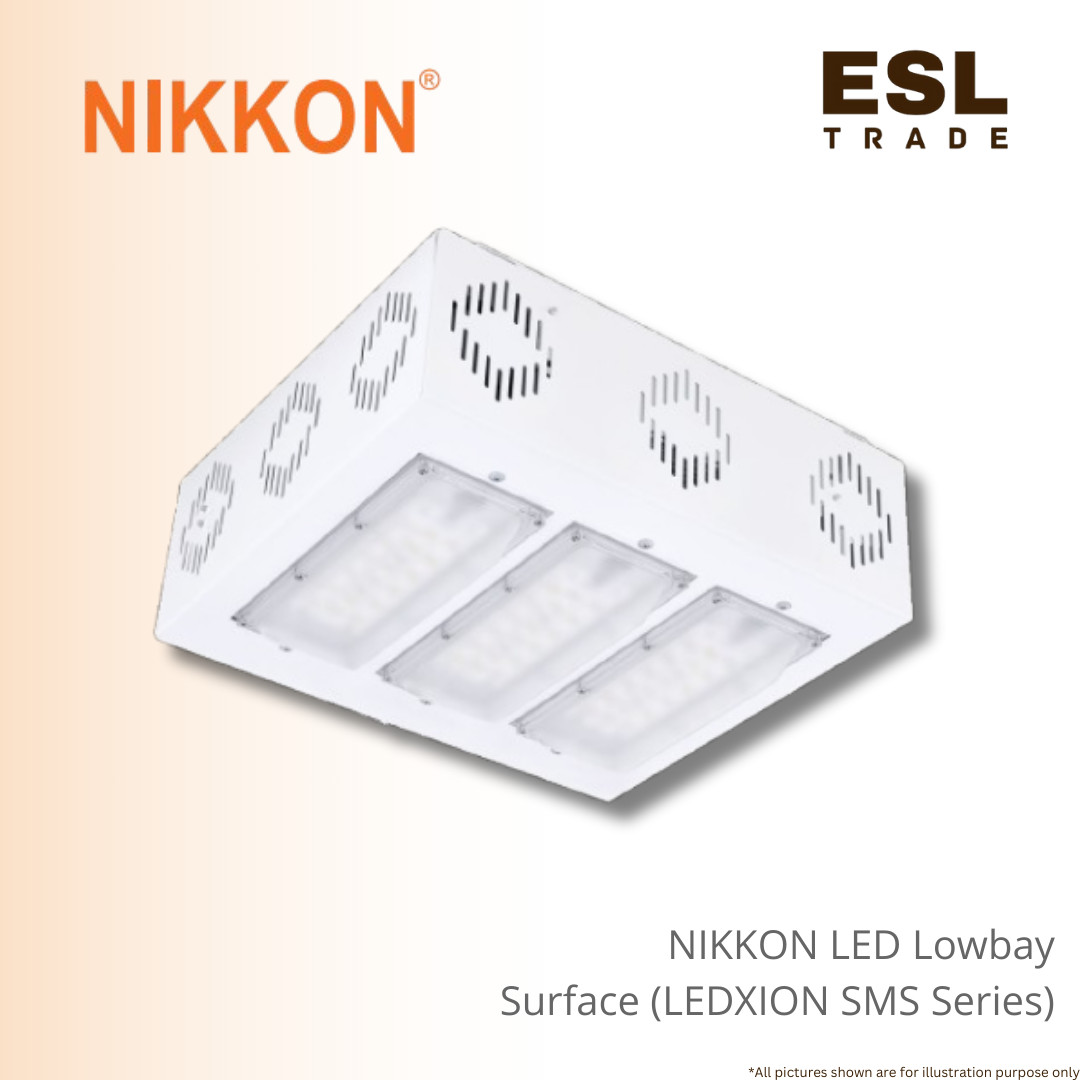

NIKKON LEDXION SMS Surface LED Lowbay High-Efficiency 40W-160W Canopy Light with Anti-Glare Diffuser IK08 Impact Resistance Excellent for Petrol Kiosks & Warehouses

Description

NIKKON LEDXION SMS Surface LED Lowbay High-Efficiency 40W-160W Canopy Light with Anti-Glare Diffuser IK08 Impact Resistance Excellent for Petrol Kiosks & Warehouses

The NIKKON LEDXION SMS LOWBAY (SURFACE) is a high-performance industrial lighting solution specifically engineered for surface-mounted applications in commercial and industrial settings.

This luminaire is an ideal choice for petrol kiosks, toll plazas, and canopy lightings, where durable and reliable illumination is paramount.

Constructed with a robust cold roll steel fitting and finished in White Akzo Nobel RAL9016 epoxy powder coating, it offers exceptional longevity and a clean, professional aesthetic.

A standout feature of the SMS series is its anti-glare frosted polycarbonate diffuser, which ensures soft, uniform light distribution while maintaining high visual comfort.

The series is highly versatile, offering four distinct power configurations 40W, 80W, 120W, and 160W delivering a typical luminous flux of up to 20,800 lumens.

For advanced energy management, the fixture supports optional features such as 1-10V dimming, time control, and constant current drivers.

Engineered for the most demanding environments, the LEDXION SMS boasts an industry-leading L70 lifespan of 100,000 hours at 25°C.

It utilizes high-quality LEDs mounted on a ceramic alumina substrate PCB with silver conductors and WAGO 2060 Series SMD connectors for superior thermal management and reliability.

With IK08 impact protection and 10KV/20KA surge protection, this luminaire ensures continuous operation even in harsh conditions.

Fully compliant with international standards like CE, LM80, and EN60598, the NIKKON LEDXION SMS is the ultimate sustainable lighting upgrade for warehouses, gymnasiums, and exhibition halls.

Product Features :

• Surface Mounting Versatility: Designed for easy surface-mounted installation in various industrial and commercial environments.

• Multiple Wattage Options: Available in 40W, 80W, 120W, and 160W models to accommodate different ceiling heights and lighting needs.

• High Luminous Output: Capable of delivering up to 20,800 typical lumens for high-intensity illumination.

• Visual Comfort Optics: Features an anti-glare frosted polycarbonate diffuser for soft and uniform light distribution.

• Advanced Thermal Management: Utilizes a ceramic (alumina substrate) PCB with silver (Ag) conductors for superior heat dissipation.

• Durable Construction: Built with a cold roll steel fitting and finished in high-quality White Akzo Nobel RAL9016.

• Heavy-Duty Protection: Equipped with IK08 impact protection and integrated 10KV, 20KA surge protection.

• Extended Lifespan: Rated for a long-life L70 of 100,000 hours at 25°C, significantly reducing maintenance costs.

• Smart Control Compatibility: Optional support for 1-10V dimming, time control, and constant current drivers.

• Wide Application Range: Ideal for petrol kiosks, toll plazas, canopy lightings, warehouses, gymnasiums, and exhibition halls.

• Compliance Certified: Fully meets international standards including CE, LM80, EN60598-1, and IEC62262

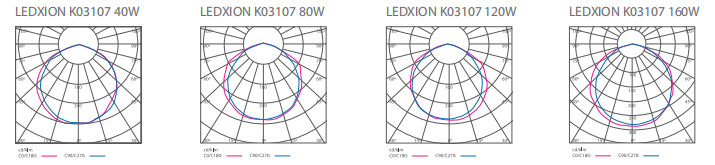

Photometric :

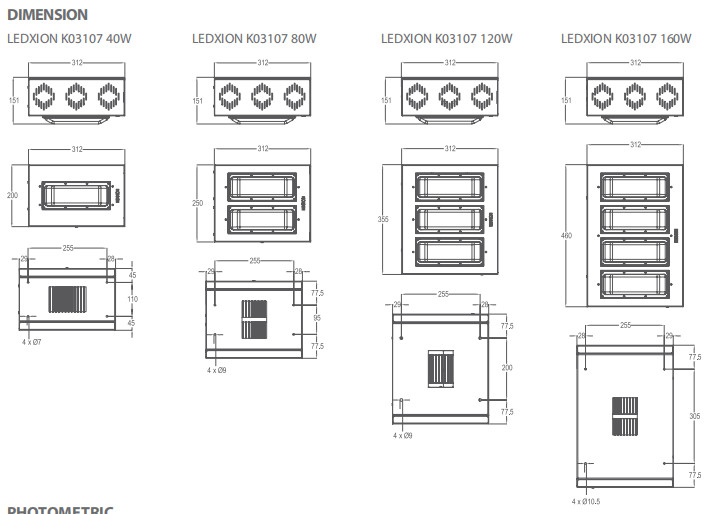

Dimension :
