Description

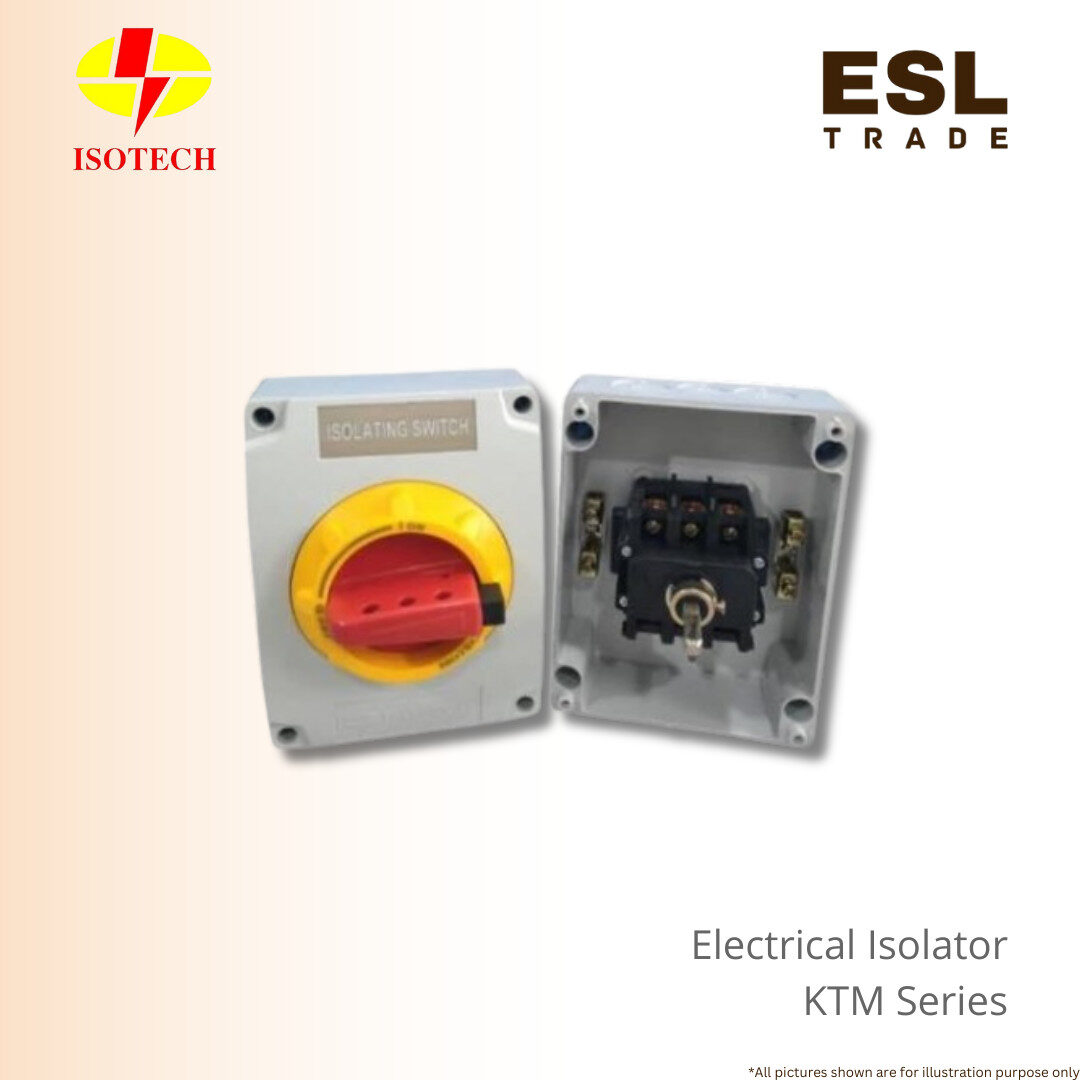

The ISOTECH KTM Series Electrical Isolator Switch is a robust and reliable solution designed for superior safety and performance. This 3-pole + neutral (3P+N) switch is engineered to meet IEC60947-3 standards, ensuring high-quality operation. With its IP65 rating, the isolator provides excellent protection against dust and water ingress, making it suitable for a variety of challenging environments. Key safety features include a pad-lockable handle and an interlocking system with a defeat mechanism for secure power isolation. Constructed from premium, UV-resistant molding materials, it offers excellent chemical resistance and durability. Proudly made in Malaysia, this product guarantees extra safety with its sealing features and is an ideal choice for industrial and commercial applications.
- Q: What does IP65 mean on an electrical isolator? A: IP65 is a protection rating that signifies the device is completely protected against dust ingress and can withstand low-pressure water jets from any direction.
- Q: Can this isolator be used outdoors? A: Yes, with its IP65 rating and good UV resistance, the ISOTECH KTM series is well-suited for both indoor and outdoor applications where protection from dust and water is essential.
Product Specifications
| Model | Number of Poles | Rated Voltage Ue | Rated Current Ie | Max. Cable | Dimension W x H x D (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| KTM316 | 3+N | 440V | 16A | 16mm² | 116 x 157 x 133 | 0.6 |
| KTM325 | 3+N | 440V | 25A | 16mm² | 116 x 157 x 133 | 0.6 |
| KTM340 | 3+N | 440V | 40A | 16mm² | 116 x 157 x 133 | 0.6 |
| KTM363 | 3+N | 440V | 63A | 35mm² | 116 x 157 x 133 | 0.7 |
| KTM363B | 3+N | 440V | 63A | 35mm² | 175 x 213 x 147 | 1.1 |
| KTM375 | 3+N | 440V | 75A | 35mm² | 175 x 213 x 147 | 1.1 |
| KTM3100 | 3+N | 440V | 100A | 35mm² | 175 x 213 x 147 | 1.1 |
| KTM3100B | 3+N | 440V | 100A | 95mm² | 175 x 213 x 147 | 1.5 |
| KTM3125 | 3+N | 440V | 125A | 95mm² | 175 x 213 x 147 | 1.5 |
| KTM3160 | 3+N | 440V | 160A | 95mm² | 175 x 213 x 147 | 1.5 |
| KTM3200 | 3+N | 440V | 200A | 95mm² | 175 x 213 x 147 | 1.5 |
