ABB Residual Current Circuit Breaker (RCCB) F 200 series AC w type – Protection Against Sinusoidal Earth Faults

Description

ABB Residual Current Circuit Breaker (RCCB) F 200 series AC w type – Protection Against Sinusoidal Earth Faults

The ABB F200 Series AC Residual Current Device (RCD) is a professional-grade solution providing comprehensive earth fault protection. This Type AC device protects against the most common type of fault—the sinusoidal alternating earth fault current.

The F200 RCD is versatile, offering a wide array of specifications to suit different installation requirements:

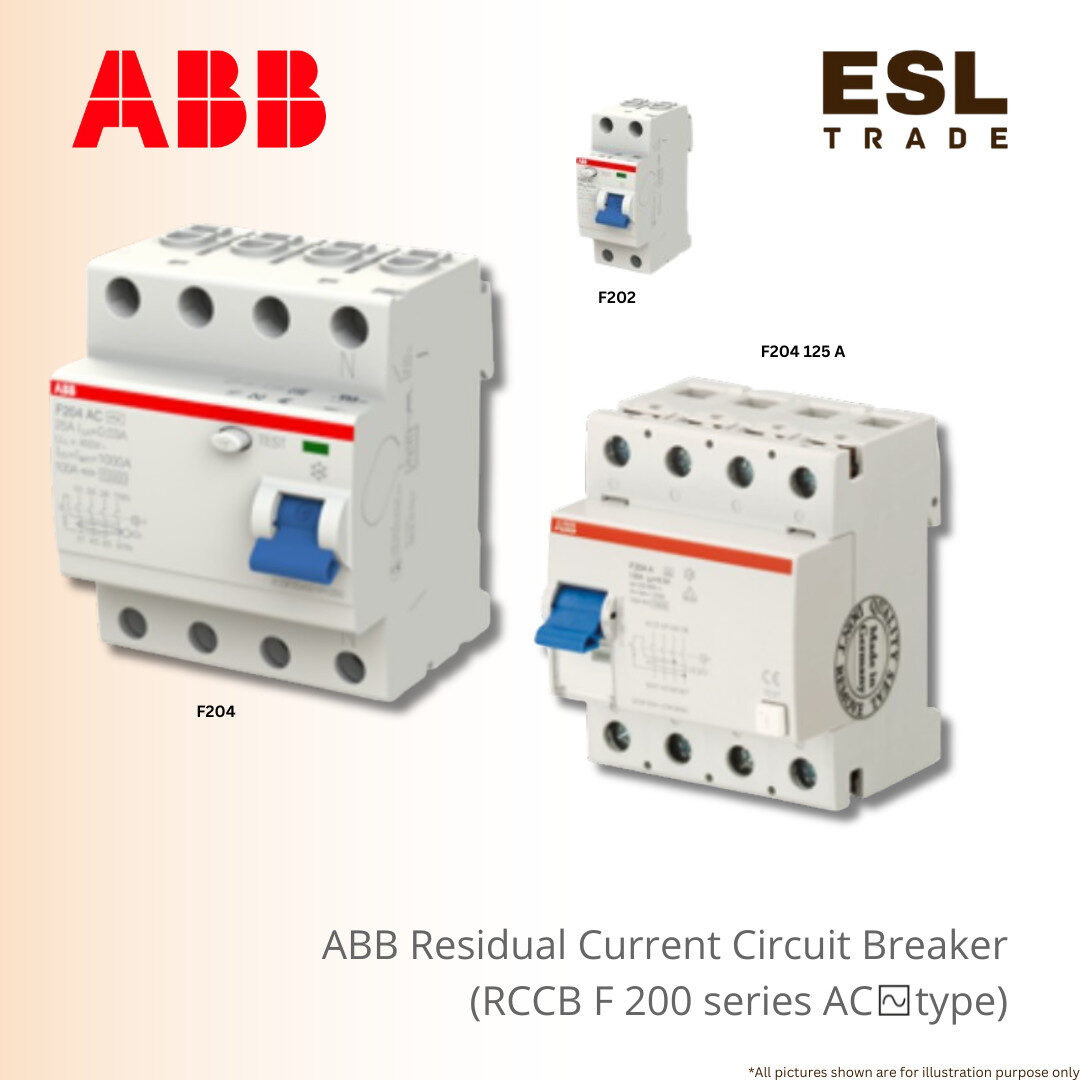

• Poles: Available as 2-pole (F202) and 4-pole (F204) models.
• Rated Current (In): The range spans up to 125A.
• Sensitivity (IΔn): Options include 10mA, 30mA, 100mA, 300mA, and 500mA.

The F200 series ensures protection against indirect contacts and, when rated at 30mA, provides additional protection against direct contacts. It is fully certified to IEC/EN 61008-1 standards, making it the reliable choice for all residential, commercial, and industrial electrical systems.
