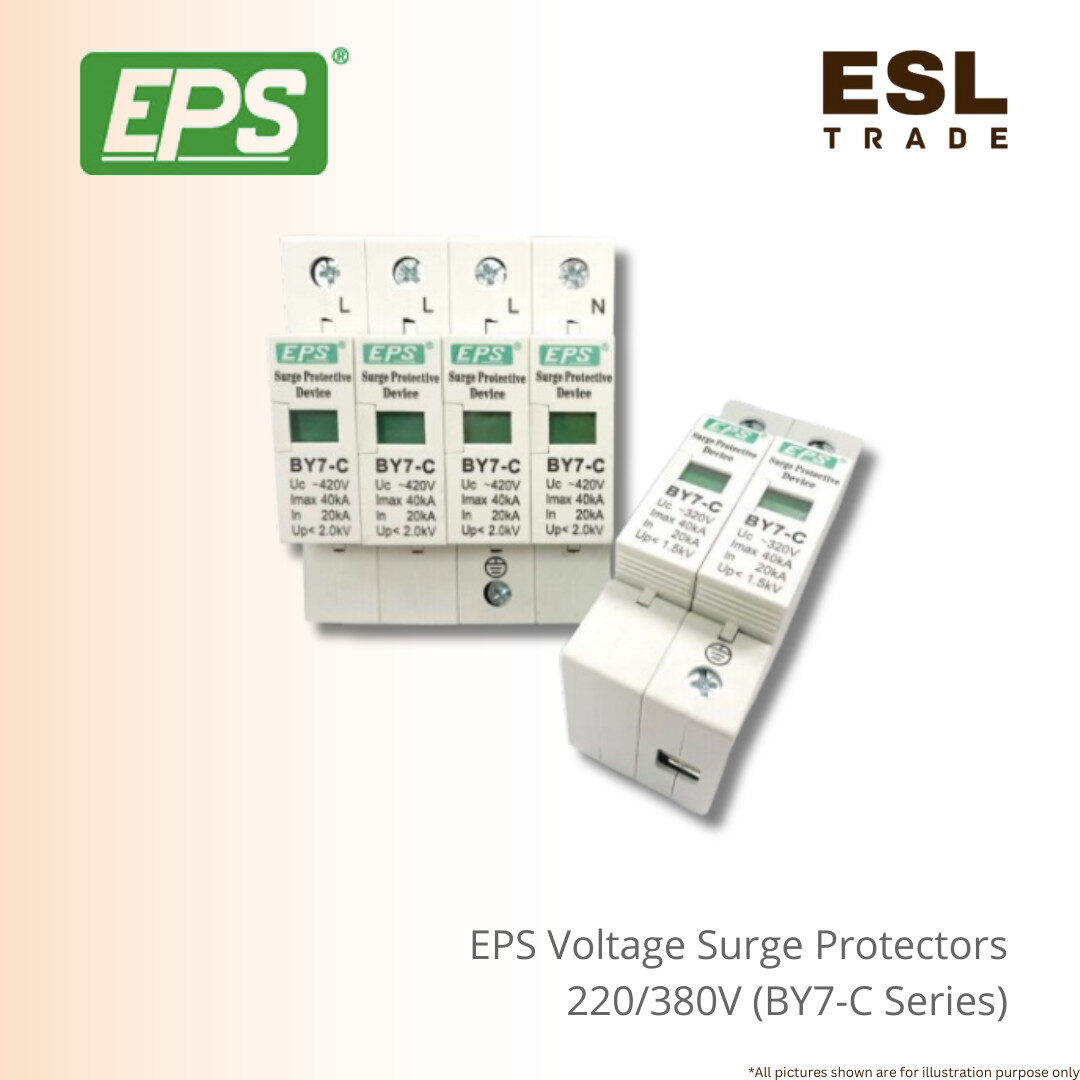

EPS Voltage Surge Protectors Device 60KA 220/380V BY7-C Series Low-Voltage Lighting & Overvoltage Protection
Ensure the Long-Term Safety of Your Electrical Installations with the BY7-B/BY7-C Series Type 2 Surge Protective Device (SPD)
The Voltage surge protector device BY7-B/BY7-C Series represents a critical layer of defense for all low-voltage electrical systems, designed specifically to guard against the damaging effects of indirect lightning strikes and switching over voltages.
As a robust Type 2 Voltage Surge Protector Device (tested with an 8/20 µs current wave), this series is the ideal main protection system for low-voltage switchboards and branch distribution cabinets in commercial, industrial, and residential applications (220/380V nominal).
The high-performance BY7-B model offers superior capacity with a maximum discharge current (Imax) of up to 60kA and a nominal discharge current (In) of 30kA.
Both the BY7-B and BY7-C models boast an ultra-fast response time of less than 25 nanoseconds (<25ns), ensuring rapid diversion of transient energy to protect connected sensitive loads and electrical appliances.
Installation is simple and reliable via 35mm DIN rail mounting (EN 50022), and the device is housed for IP20 protection when installed in an enclosure.
The modular design features visual display indication (Green for functional, Red for failed) and includes an optional remote signal terminal for long-distance monitoring, allowing maintenance teams to easily monitor the protector’s operational status and ensure continuous defense against damaging surges.
Choose the BY7 Series to protect your critical equipment and minimize costly downtime.
Specification :
| Product Classification | BY7-C Series | BY7-B Series |
| Nominal Voltage | 220/380V | 220/380V |
| Maximum Continuous Operating Voltage | 385/420V | 385V |
| Frequency | 50/60Hz | 50/60Hz |
| Nominal discharge current of the upper part (8/20µS) In (kA) | 20 | 30/40 |
| Maximum discharge current of the upper part (8/20µS) Imax (kA) | 40 | 60/80 |
| Up protection level (kV) | <2.0 | <2.0 |
| Response time t(ns) | <25 | <25 |
| Terminal capacity : Rigid Conductor | 35mm³ | – |
| Terminal capacity : Flexible Conductor | 25mm³ | – |
| Installation | Snap on Mounting acc. to DIN EN 50022 | Snap on Mounting acc. to DIN EN 50022 |
| Operating Temperature Range | -40 °C to + 80 °C | -40 °C to + 80 °C |
| Degree of Protection | IP20 installed in Enclosure | IP20 installed in Enclosure |
