Description

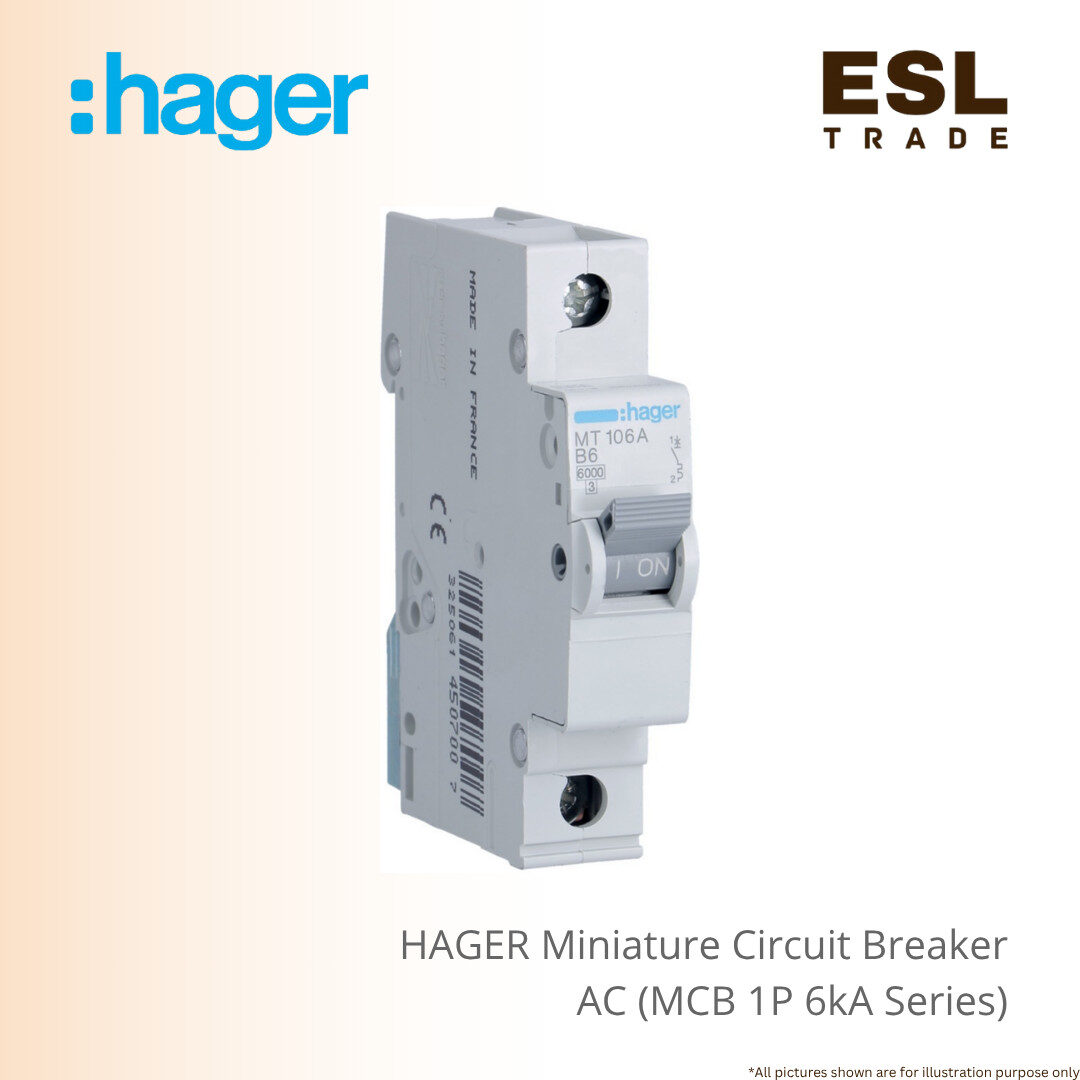

HAGER Miniature Circuit Breaker 1 Pole 6kA Excellent High Breaking Capacity for Overcurrent Protection
The HAGER 1-Pole 6kA Miniature Circuit Breaker is a robust and essential safety component engineered for superior electrical protection in demanding residential, commercial, and light industrial installations.
Meeting the stringent requirements of the IEC 60898-1 standard, this circuit breaker guarantees reliable defense against over currents and short-circuits.
The key feature is its high 6 kA breaking capacity, offering an enhanced safety margin over 4.5 kA models, which is crucial for systems with higher prospective fault currents.
This single-pole breaker provides effective isolation and protection on the live conductor.
It is available in popular -Curve (ideal for resistive loads like heating and lighting) and C-Curve (suitable for inductive loads like small motors and general appliances) versions.
Designed for installation efficiency, the HAGER 6 kA Miniature Circuit Breaker features a compact 1-module width and easily snaps onto a standard DIN rail.
The secure screw terminals can handle both rigid and flexible conductors up to 35 mm², ensuring a firm and long-lasting connection.
With an IP20 protection rating and a wide operating temperature range of -25ºC to 70ºC, this HAGER MCB ensures stable, dependable, and durable performance across various environmental conditions.
Product Features :
| Feature | Specification |
| Poles | 1-Pole (1P) |
| Breaking Capacity | 6 kA (According to IEC 60898-1) |
| Tripping Curve | B-Curve (C-Curve also available) |
| Rated Current (Example) | 6 A (Available up to 63A) |
| Rated Voltage | 230/400 V AC |
| Frequency | 50-60 Hz |
| Number of Modules | 1 |
| Connection Type | Screw terminal, Biconnect (Bottom) |
| Conductor Cross-Section | 1 – 35mm² (Rigid) / 1 – 25 mm² (Flexible) |
| IP Protection | IP20 |
| Operating Temperature | -25 to 70ºC |
