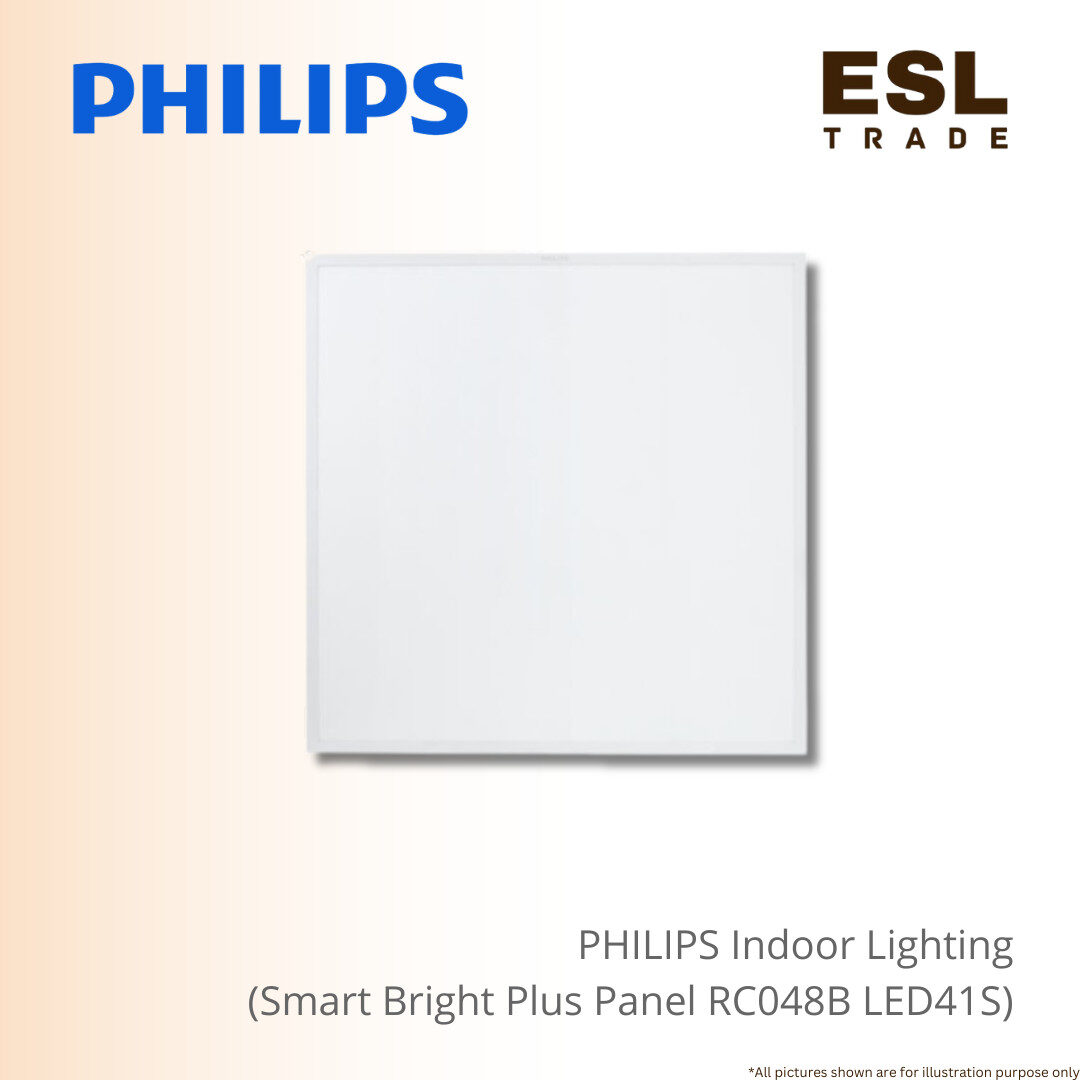

PHILIPS Panel Light SmartBright Plus Panel RC048B+ LED41S/840 PSU W603L603 Series Excellent High Efficacy Commercial Fixture
The Philips SmartBright Plus LED Panel Light RC048B+ Series is an outstanding choice for professional commercial and office environments seeking powerful yet highly efficient illumination.
This panel light series delivers a substantial 4100 lumens of light output while consuming only 34W of power, achieving a remarkable Luminous Efficacy of 120 lm/W.
This superior efficiency translates into significant energy savings and a reduced operational cost over the long, reliable 3-year warranty period.
Engineered for excellent light quality, the panel features a 4000K Neutral White color temperature (840) and a high CRI of 80, ensuring natural and comfortable light that is ideal for sustained visual tasks.
The wide 120-degree beam angle ensures uniform distribution, eliminating dark spots across the ceiling plane, especially in spaces where the W603L603 size (approx. 600x600mm) is commonly used.
Operating between 220 to 240V with a high Power Factor (≥ 0.9), this fixture minimizes line loss and supports stability. Installation is simplified with a 2-pole push-in connector.
Choose the Philips SmartBright Plus Panel for a premium, high-performance, High Efficacy LED Panel that maintains reliability and visual comfort in modern commercial spaces.
Product Features :
- General Information :
| Field | Value |
| Number of gear units | 1 unit |
| Gear | – |
| Driver included | Yes |
| Light source engine type | LED |
| Value ladder | Value |
| Warranty period | 3 years |
- Light Technical :
| Field | Value |
| Luminous Flux | 4,100 lm |
| Correlated Color Temperature (Nom) | 4000 K |
| Luminous Efficacy (rated) (Nom) | 120 lm/W |
| Color rendering index (CRI) | 80 |
| Beam angle of light source | 120 degree(s) |
| Light source color | 840 neutral white
|
- Operating and Electrical :
| Field | Value |
| Input Voltage | 220 to 240 V |
| Line Frequency | 50 or 60 Hz |
| Inrush current | 22 A |
| Inrush time | 0.25 ms |
| Power Consumption | 34 W |
| Power Factor (Fraction) | 0.9 |
| Connection | Push-in connector 2-pole |
| Cable | – |
| Number of products on MCB of 16 A Type B | 9 |
| Suitable for random switching | Yes |
