Description

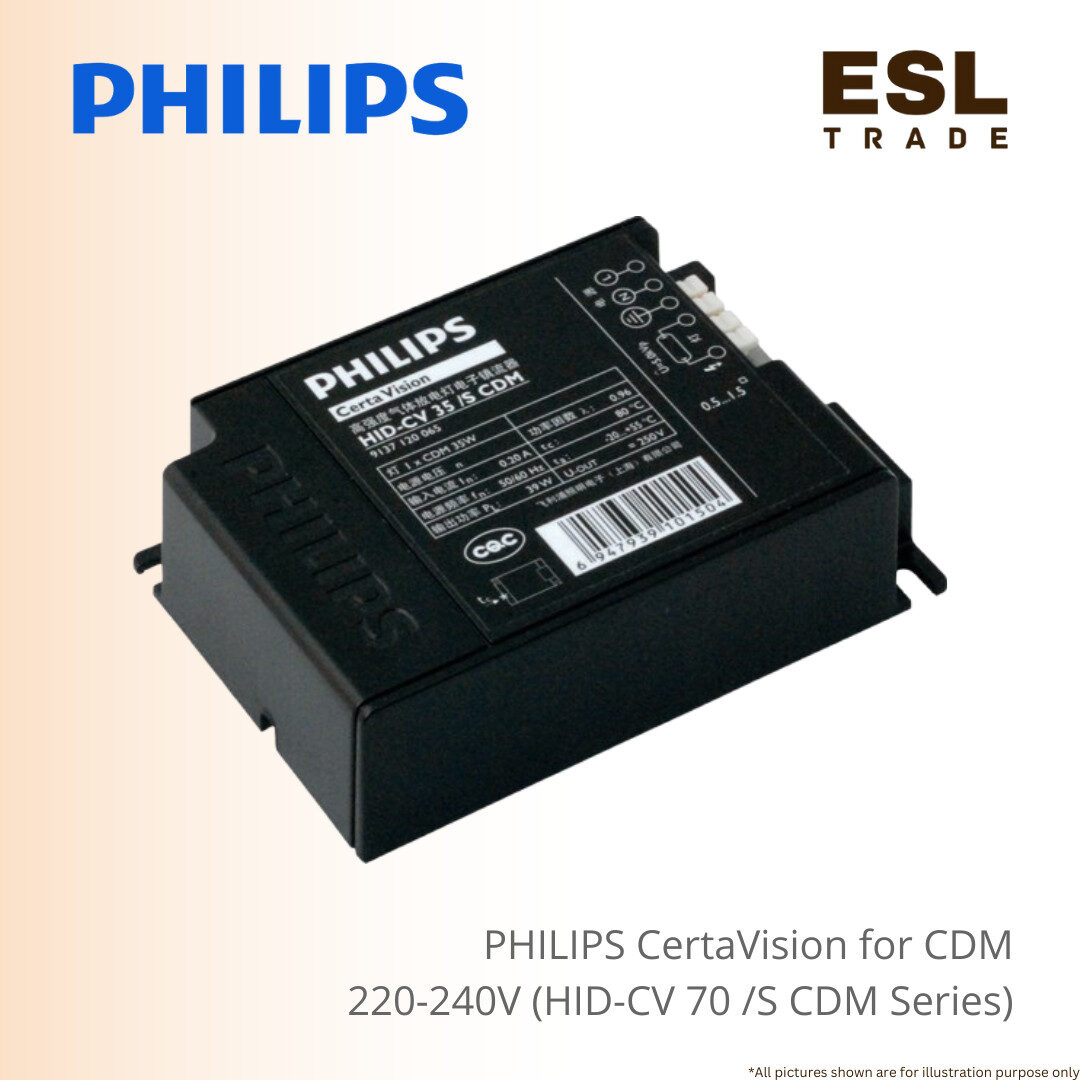

PHILIPS Ballast HID-CertaVision 70W CDM High-Performance, Reliable Electronic Ballast for Ceramic Metal Halide Lamps
The Philips HID-CertaVision 70W CDM is a high-performance electronic ballast specifically designed to drive 70W Ceramic Metal Halide (CDM) lamps.
This unit is engineered to ensure maximum reliability and a long system lifetime, preserving the exceptional color quality and sparkling light output characteristic of CDM technology.
This makes it an ideal choice for high-end retail, hospitality, and professional commercial lighting where light quality is paramount.
Operating on a standard 220 to 240 V, 50/60 Hz supply, the ballast maintains stable and consistent power delivery.
Its robust thermal management is evidenced by a T-Case Lifetime (Nominal) of 85°C and an Ambient temperature range of -20°C to 55°C, ensuring durability in demanding environments.
Installation is made simple and secure with Push connectors for wiring.
The compact design allows for easy integration into existing luminaires, and the ballast is CE marked, confirming compliance with European safety and performance directives.
Choosing the HID-CertaVision 70W CDM is an investment in professional-grade lighting that offers both performance and long-term cost-efficiency.
Product Features
- Input Voltage : 220 to 240 V
- Line Frequency : 50 to 60 Hz
- Input Frequency : 50 to 60 Hz
- Inrush Current Width : 0.33 ms
- Inrush Current Peak (Nom) : 33.0 A
- Number of Products on MCB (16A Type B) (Nom) : 20
- Cable Length From Device to Lamp : 2m
- Connector Type : Push

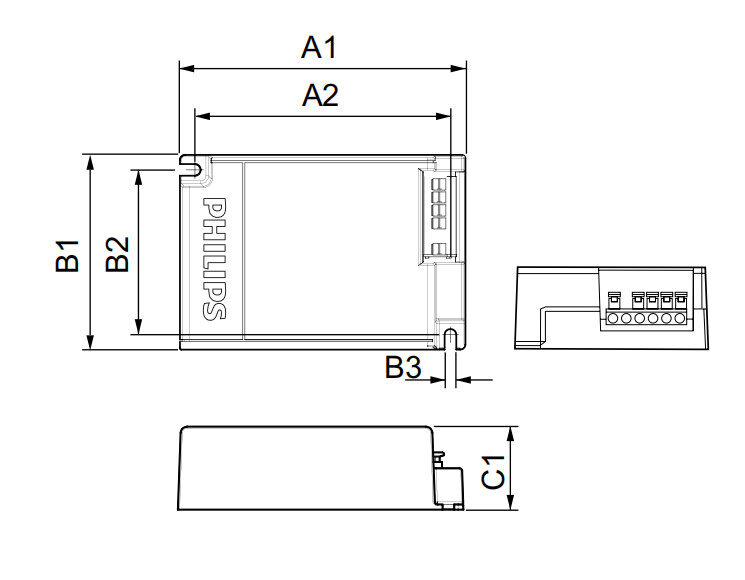

Dimension :
