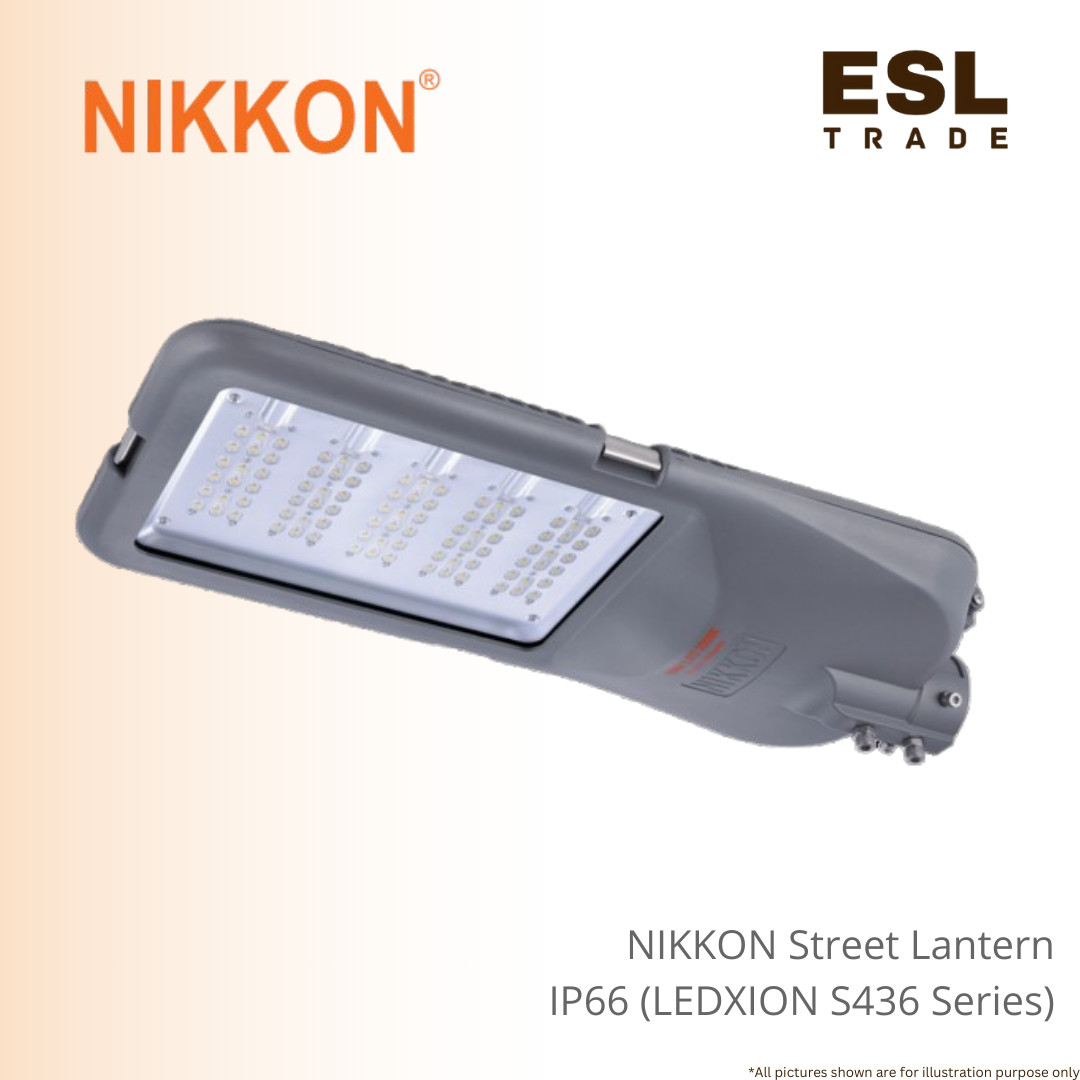

NIKKON LEDXION S436 Industrial LED Street Lantern 150W to 190W High-Lumen Excellent Roadway Light with ILCS® Smart Control and IP66 Waterproofing

Description

NIKKON LEDXION S436 Industrial LED Street Lantern 150W to 190W High-Lumen Excellent Roadway Light with ILCS® Smart Control and IP66 Waterproofing

The NIKKON LEDXION S436 STREET LANTERN is a premier lighting solution engineered for high-intensity municipal and industrial applications.

This Street Lantern designed to meet the rigorous demands of modern infrastructure, this series offers powerful performance with wattage options of 150W, 170W, and 190W, delivering an impressive typical luminous flux reaching up to 26,500 lumens.

This Street Lantern ensures exceptional visibility and safety for high-speed expressways, residential areas, and municipal roadways.

Durability is at the heart of the S436 design, featuring a housing made of non-corrosive die-cast aluminium finished in a professional Dark Gray (RAL7012) powder coating.

The optical system is protected by 95% transparency tempered glass, providing maximum light transmission while maintaining a robust IK08 impact protection rating and IP66 ingress protection against dust and water.

For enhanced electrical stability, the unit is equipped with 10KV/20KA surge protection and operates reliably in temperatures ranging from -30°C to +45°C.

Technically advanced, the S436 utilizes a Ceramic (Alumina Substrate) PCB with Silver (Ag) conductors and WAGO 2060 Series SMD connectors for superior thermal management and electrical connectivity.

It also supports the Intelligent Light Control System (ILCS®), allowing for smart city integration and automated energy management.

With an incredible L70 service life of 100,000 hours, this lantern offers a future-proof, low-maintenance solution for large-scale outdoor lighting projects

Product Features :

• High-Power Output: Available in three robust power configurations: 150W (70 LEDs), 170W (80 LEDs), and 190W (90 LEDs).

• Massive Lumens: Delivers a typical luminous flux ranging from 20,700lm to 26,500lm (tested at 5000K CCT).

• Smart Control Integration: Features the ILCS® (Intelligent Light Control System) for advanced smart city monitoring and control.

• Advanced Thermal PCB: Utilizes a Ceramic (Alumina Substrate) material with Silver (Ag) traces for exceptional heat dissipation.

• Extreme Longevity: Rated for a service life of 100,000 hours (L70) at 25°C, reducing maintenance costs.

• Ruggedized Build: Constructed from non-corrosive die-cast aluminium with a 95% transparency tempered glass cover.

• Environmental Protection: Rated IP66 for dust and water resistance and IK08 for high impact resistance.

• Electrical Safety: Integrated 10KV/20KA surge protection and Class 1 electrical safety classification.

• Optional Dimming: Programmable LED drivers with Time Control, DALI, or 1-10V dimming are available upon request.

• Easy Installation: Standard Ø48-60mm side entry mounting for common street light poles.

• Quality Connectors: Uses WAGO 2060 Series SMD connectors for secure internal electrical connections.

• Broad Applications: Specifically designed for expressway lighting, municipal roads, and residential areas.

Dimension :

Photometric :
