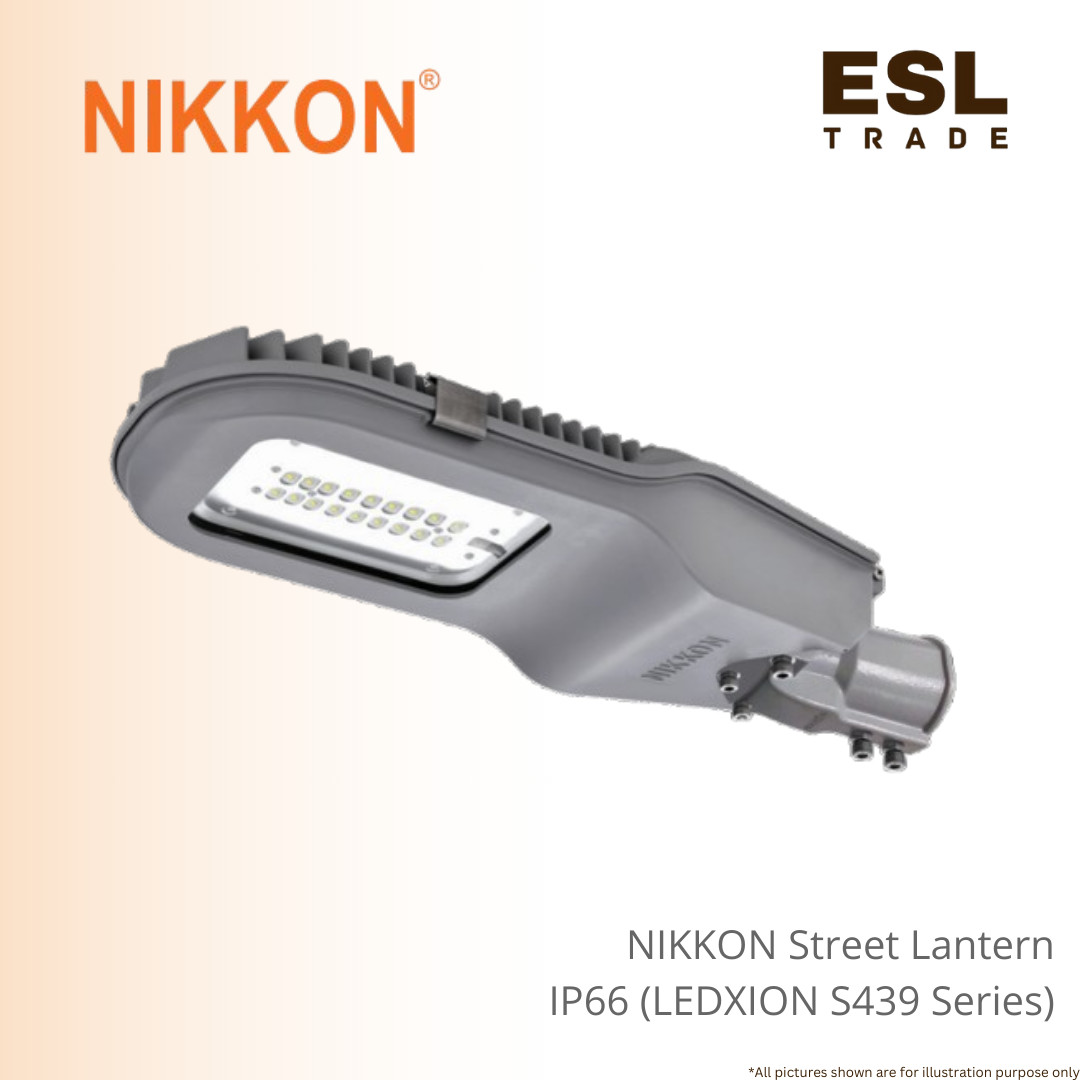

NIKKON LEDXION S439 Industrial LED Street Lantern 30W, 40W & 60W IP66 Excellent Outdoor Roadway Lighting with ILCS® Smart Control

Description

NIKKON LEDXION S439 Industrial LED Street Lantern 30W, 40W & 60W IP66 Excellent Outdoor Roadway Lighting with ILCS® Smart Control

The NIKKON LEDXION S439 STREET LANTERN is a high-performance, professional-grade lighting solution specifically engineered for residential areas, parks, and municipal roadways.

This street lantern series offers three power configurations 30W, 40W, and 60W delivering a typical luminous flux of up to 8,200 lumens.

This street lantern designed for maximum durability and thermal efficiency, the lantern features a non-corrosive die-cast aluminium housing finished in a sophisticated Dark Gray (Akzo Nobel RAL7012) powder coating.

The street lanternS439 series is distinguished by its technical excellence, utilizing a Ceramic (Alumina Substrate) PCB with Silver (Ag) conductors and WAGO 2060 Series SMD connectors for superior electrical reliability and heat dissipation.

It provides exceptional visibility through a 95% transparency tempered glass cover and offers multiple color temperature options, including 3000K Warm White, 4000K Neutral White, and 5000K Cool White, all maintaining a CRI >70.

A key advantage is the integrated Intelligent Light Control System (ILCS®), which allows for advanced energy management and smart city integration.

For enhanced protection, the unit is fully IP66-rated for dust and water resistance and IK08-rated for impact protection.

It is further reinforced by 10KV/20KA surge protection, ensuring stable performance across temperatures from -30°C to +45°C.

This makes the street lantern NIKKON S439 a sustainable, low-maintenance choice for modern urban infrastructure

Product Features :

• Power Options: Available in 30W, 40W, and 60W configurations to suit different localized lighting needs.

• Intelligent Management: Features the Intelligent Light Control System (ILCS®) for advanced monitoring and energy saving.

• High-Quality Materials: Constructed from non-corrosive die-cast aluminium with a 95% transparency tempered glass optical cover.

• Superior Thermal Design: Utilizes a Ceramic (Alumina Substrate) PCB with Silver Conductor (Ag) traces for optimal heat management.

• Exceptional Longevity: Rated for a service life of 100,000 hours (L70) at 25°C.

• Extreme Protection: Fully rated IP66 for ingress protection and IK08 for high impact resistance.

• Advanced Electrical Safety: Integrated 10KV/20KA surge protection and belongs to Electrical Safety Class 1.

• Wide Temperature Range: Reliable operation in environments ranging from -30°C to +45°C.

• Installation Flexibility: Standard Ø42-60mm side entry mounting; post-top spigot available upon request.

• Smart Upgrades: Supports optional 1-10V dimming and Mini Photocell sensors.

• Reliable Connectivity: Features WAGO 2060 Series SMD connectors for secure internal wiring.

• Broad Application: Ideal for Pathways, Parks, Car Parks, Foot Paths, Road Lightings, and Residential Areas

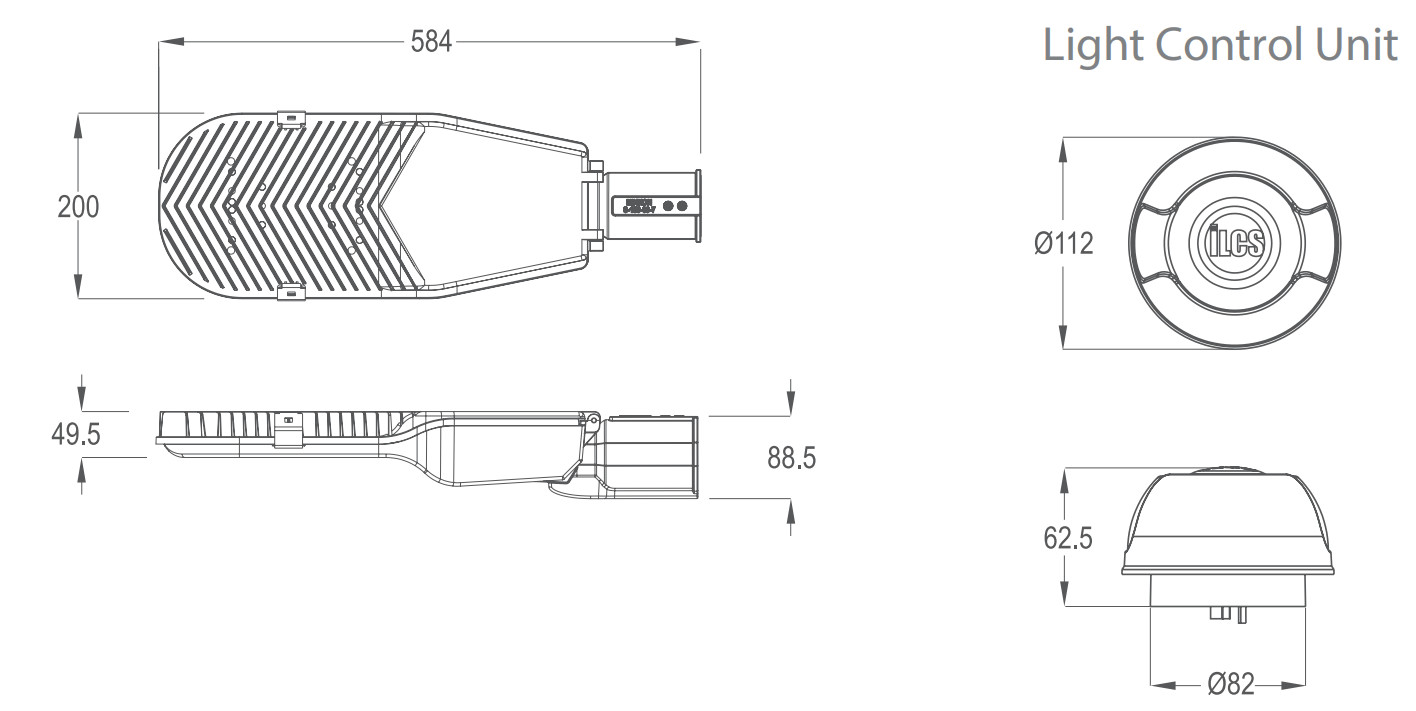

Dimension :

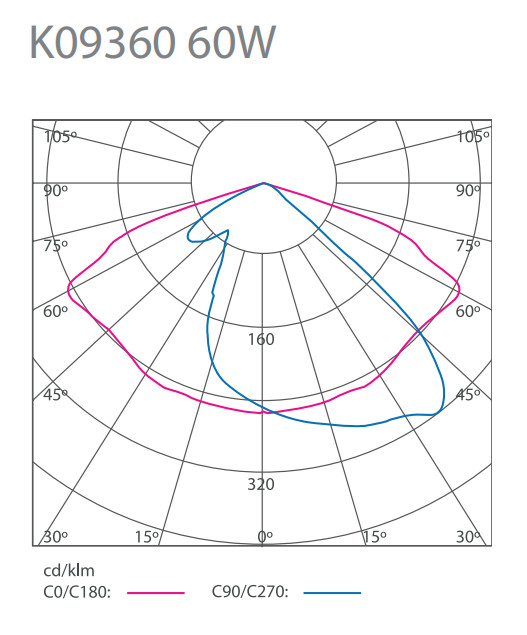

Photometric
