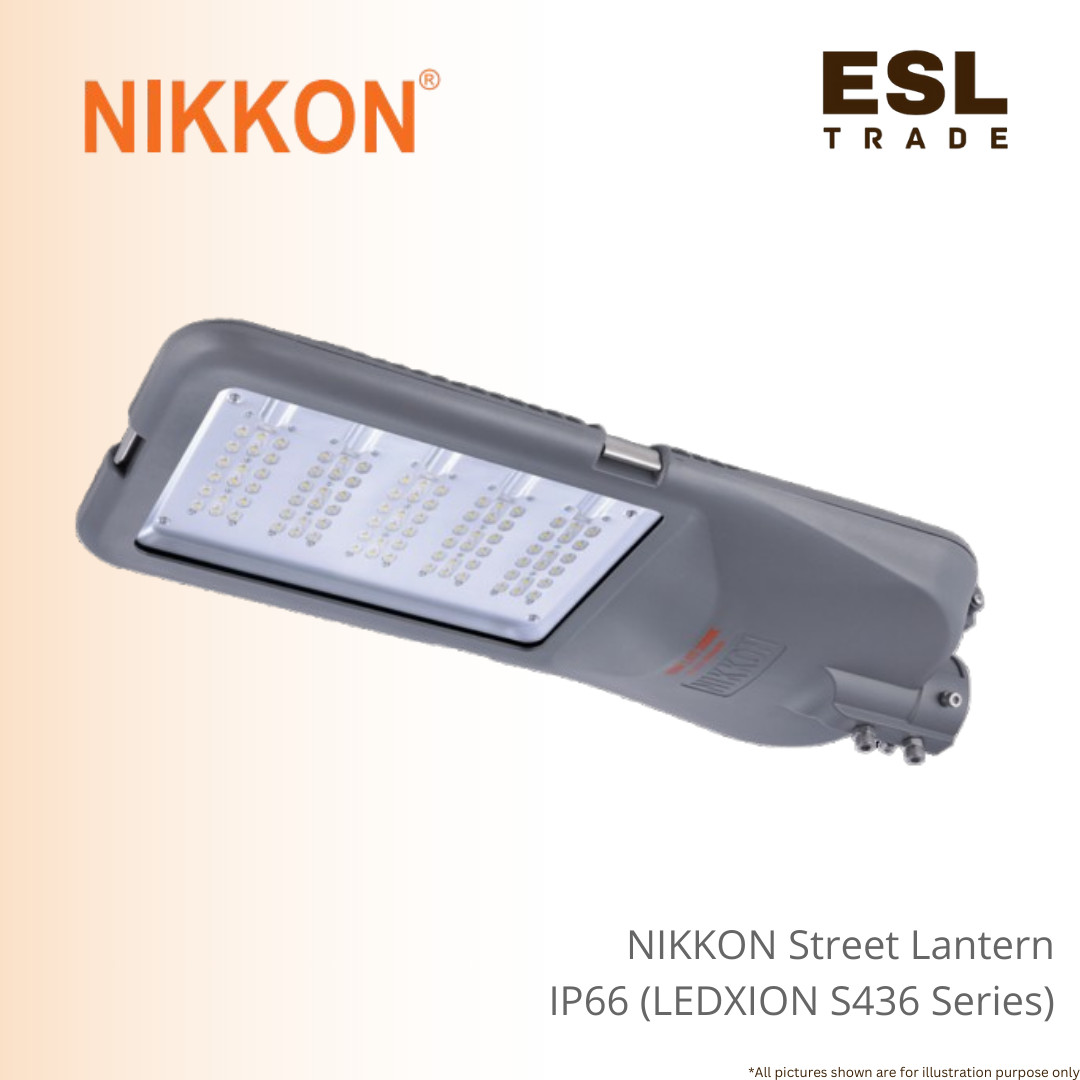

NIKKON LEDXION S436 EA Industrial LED Street Lantern 125W & 150W Professional Roadway Lighting with Excellent ILCS Smart Control & IP66 Waterproof

Description

NIKKON LEDXION S436 EA Industrial LED Street Lantern 125W & 150W Professional Roadway Lighting with Excellent ILCS Smart Control & IP66 Waterproof

The NIKKON LEDXION S436 EA STREET LANTERN is a high-performance, professional-grade lighting solution specifically engineered for demanding municipal and expressway environments.

This Street Lantern series offers heavy-duty power configurations, including 125W and 150W models, delivering a massive typical luminous flux of up to 20,600 lumens to ensure maximum visibility and safety on major roadways.

This Street Lantern designed for superior thermal efficiency and long-term electrical reliability, the lantern features a Ceramic (Alumina Substrate) PCB with a Silver Conductor (Ag) and uses high-quality WAGO 2060 Series SMD connectors.

Durability is a core pillar of the S436 EA design.

The Street Lantern fitting is constructed from non-corrosive die-cast aluminium and finished in a professional Dark Gray (Akzo Nobel RAL7012) powder coating.

It is fully protected against the elements with an IP66 ingress protection rating and is built to withstand significant physical stress with an IK08 impact protection rating.

The optical system utilizes 95% transparency tempered glass to ensure high-efficiency light transmission while safeguarding the internal LED modules.

A standout feature is its integration with the Intelligent Light Control System (ILCS®), which enables smart city capabilities and advanced energy management.

With an exceptional L70 service life of 100,000 hours at 25°C and integrated 10KV/20KA surge protection, the LEDXION S436 EA provides a sustainable, low-maintenance solution for municipal expressways, residential areas, and facade lighting

Product Features :

• High-Power Performance: Available in heavy-duty 125W (60 LEDs) and 150W (72 LEDs) models.

• Intelligent Light Control System (ILCS®): Integrated smart management for advanced monitoring and energy saving.

• Exceptional System Efficacy: Delivers up to 20,600 lumens of typical luminous flux (based on 5000K CCT).

• Advanced Thermal Module: Features a Ceramic (Alumina Substrate) PCB with a Silver Conductor (Ag) for superior heat dissipation.

• Long-Life Reliability: Rated for a service life of 100,000 hours (L70) at 25°C.

• Rugged Construction: Built from non-corrosive die-cast aluminium with a 95% transparency tempered glass cover.

• Extreme Weather Protection: Rated IP66 for full resistance against dust and high-pressure water.

• High Impact Resistance: Rated IK08 to withstand external physical impacts.

• Robust Surge Protection: Integrated 10KV/20KA surge protection to safeguard electronics.

• Flexible Optics: Optional Type I, Type II, Type III, or Type IV lenses available to optimize roadway light distribution.

• Smart Control Upgrades: Supports optional Time Control, DALI, or 1-10V dimming, as well as Mini or NEMA Photocells.

• Certified Quality: Fully compliant with LM80, LM79, CE, and RoHS standards.

• Versatile Application: Ideal for municipal expressways, residential areas, and facade lighting.

Dimension :

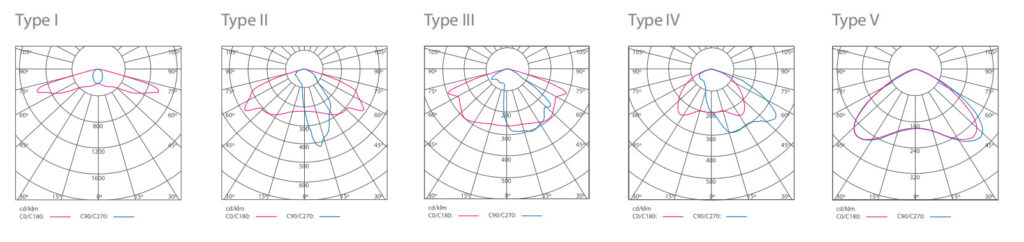

Photometric :
