NIKKON TRIMAX Industrial LED Smart Street Light 75W to 250W High-Efficiency and Excellent for Roadway Lighting with ILCS® Smart City Control, IP Rating IP66

Description

NIKKON TRIMAX Industrial LED Smart Street Light 75W to 250W High-Efficiency and Excellent for Roadway Lighting with ILCS® Smart City Control, IP Rating IP66

The NIKKON TRIMAX LED SMART STREET LIGHT is a revolutionary lighting solution designed as the ultimate infrastructure hub for modern smart cities.

This Street Light is a high-performance series offers an extensive power range from 75W to 250W, delivering an exceptional system efficacy of approximately 140 lm/W and a maximum output of up to 35,580 lumens.

This Street Light is Built for longevity and resilience, the luminaire features a marine-grade high corrosive resistant die-cast aluminium housing finished with a durable polyester epoxy powder coating.

At its core is the Intelligent Light Control System (ILCS®), which transforms standard street lights into a smart network.

This Street Light system allows municipalities to remotely monitor, dim, and schedule luminaires, resulting in significant energy savings and optimized maintenance.

The TRIMAX is more than just a light; it serves as a telecommunication hub capable of integrating unlimited technologies via a modular approach, including public WiFi, surveillance cameras, environmental sensors, and occupancy detection.

For technical reliability, each node is equipped with a GPS receiver, astronomic clock, and embedded photocell for autonomous operation even if the network is isolated.

The luminaire is rated IP66 for dust and water resistance and IK08 for impact protection, further reinforced by 10kV/20kA surge protection.

With optical versatility featuring three distribution types and 94% lens efficiency, the TRIMAX is the professional choice for expressways, municipal roads, and high-security areas

Product Features :

• Intelligent Management: Features the ILCS® (Intelligent Light Control System) for remote monitoring, data management, and automated dimming via computer or smartphone.

• IoT Modular Approach: Acts as a telecommunication hub that can incorporate WiFi, audio announcements, fire alarms, and environmental data sensors.

• Integrated Surveillance: Supports an IP PTZ Camera (2 MP, 1080p Full HD) with a 50m IR range for enhanced urban safety and security.

• Exceptional Efficiency: Achieves a system efficacy of approximately 140 lm/W using high-quality lenses with >94% efficacy.

• Power Versatility: Available in multiple wattages: 75W, 100W, 120W, 150W, 180W, 200W, 240W, and 250W.

• Marine-Grade Construction: Housing made of non-corrosive die-cast aluminium (LM6) with outdoor polyester epoxy powder coating.

• Advanced Thermal Design: Utilizes an aerodynamic heat fin design and a dust-trap-free layout for superior heat dissipation.

• Rugged Protection: Rated IP66 for ingress protection and IK08 for impact resistance.

• Robust Surge Safety: Equipped with a 10kV/20kA surge protection device (SPD) to safeguard against electrical fluctuations.

• Autonomous Operation: Includes an embedded GPS receiver, astronomic clock, and photocell for standalone functionality during network maintenance.

• Flexible Installation: Features a unique spigot mounting for Ø60mm or Ø76mm poles with 0°–10° tilting adjustment.

• Weatherproof Sealing: Uses pure silicon material gaskets to provide durable protection in harsh outdoor environments.

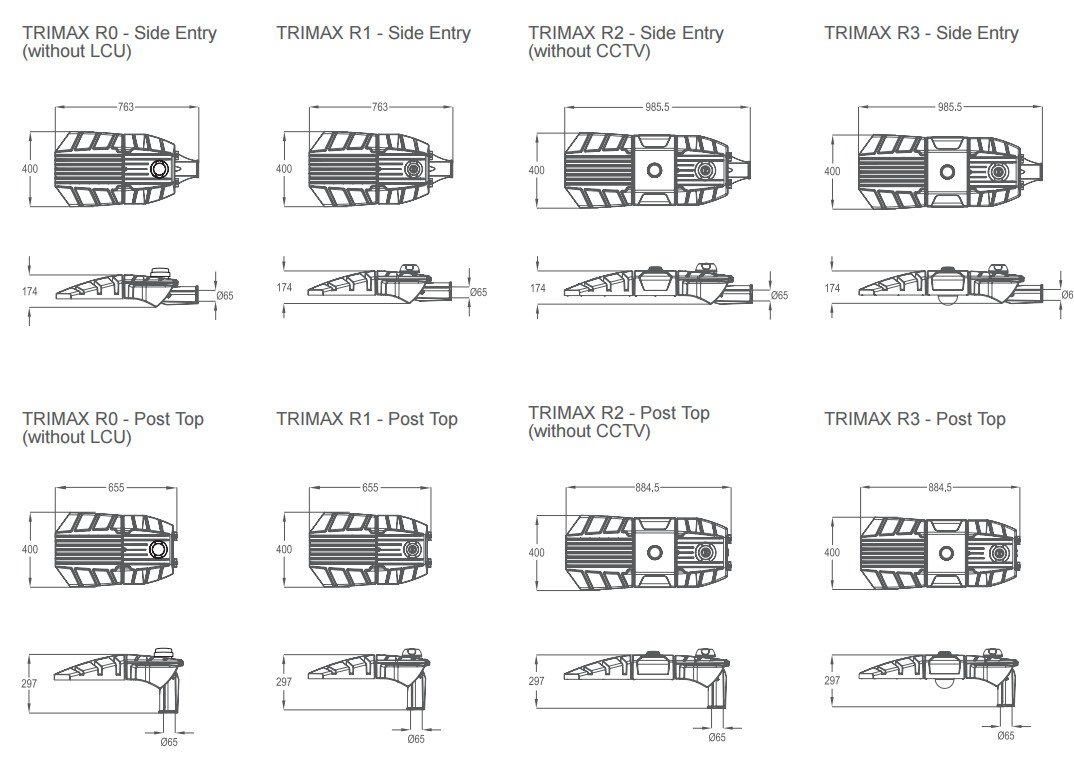

Dimension :

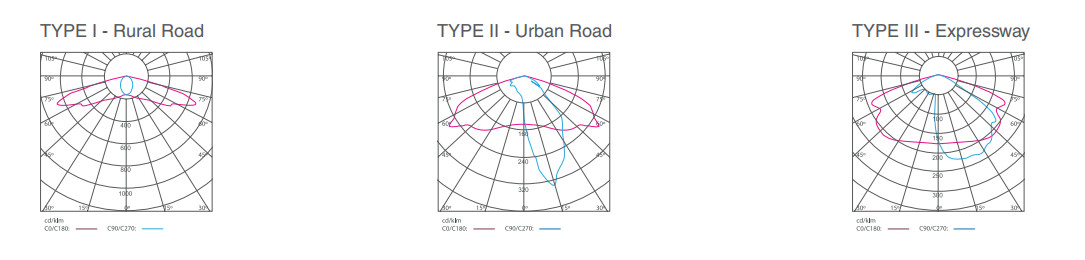

Photometric :
