NIKKON VUPA A1 LED Area Light 60W-150W IP66 Waterproof Outdoor Luminaire with Adjustable Spigot, IK08 Impact Protection, and NEMA 7-Pin Excellent for Parking Lots and Pathways

Description

NIKKON VUPA A1 LED Area Light 60W-150W IP66 Waterproof Outdoor Luminaire with Adjustable Spigot, IK08 Impact Protection, and NEMA 7-Pin Excellent for Parking Lots and Pathways

The NIKKON VUPA A1 LED Area Light is a high-performance, energy-efficient lighting solution designed for modern urban and commercial outdoor environments.

Engineered for maximum durability, the fixture is constructed from non-corrosive cast aluminium with a sleek black finish and features a tempered glass optical cover.

With an IP66 ingress protection rating and IK08 impact resistance, this luminaire is built to withstand harsh weather conditions and physical stress while maintaining peak performance.

Equipped with advanced 3030 LED chips, the VUPA A1 offers versatile wattage options ranging from 60W to 150W, delivering up to 19,800 lumens.

It provides exceptional light quality with a Color Rendering Index (CRI) of RA >70 and a choice of 3000K Warm White or 4000K Neutral White color temperatures.

The Type III optic ensures precise light distribution (135° x 90°), making it ideal for wide-area coverage such as parking lots, causeways, and residential access ways.

A standout feature is its NEMA 7-pin ready configuration, allowing for seamless integration with smart city controls and photocells.

Installation is highly flexible, supporting Ø60mm post-top or side-entry mounting with an adjustable spigot (0° to 15°) to ensure the perfect light angle.

Backed by a 50,000-hour lifespan (@ 25°C) and 6KV surge protection, the NIKKON VUPA A1 is a future-proof choice for enhancing safety and visibility in community spaces, footpaths, and parking areas

Product Features :

• High-Efficiency Lighting: Delivers up to 19,800 lumens using advanced 3030 LED chips for superior brightness.

• Smart City Ready: Features a NEMA 7-pin ready connection for easy integration with smart controllers.

• Rugged Construction: Built with a non-corrosive cast aluminium fitting and tempered glass optical cover.

• Maximum Protection: Boasts an IP66 waterproof rating and IK08 impact protection for reliable outdoor use.

• Adjustable Mounting: Equipped with an adjustable spigot (0° – 15°) for both Ø60mm post-top and side-entry installations.

• Wide Light Distribution: Uses Type III (135° x 90°) optics for optimal coverage of large areas.

• High Reliability: Includes 6KV surge protection and a metal core PCB for enhanced heat management.

• Long Lifespan: Rated for 50,000 hours (L70) of operation at 25°C.

• Versatile CCT Options: Available in 3000K (Warm White) and 4000K (Neutral White).

• Certified Quality: Compliant with international standards including CE, RoHS, LM80, and UL.

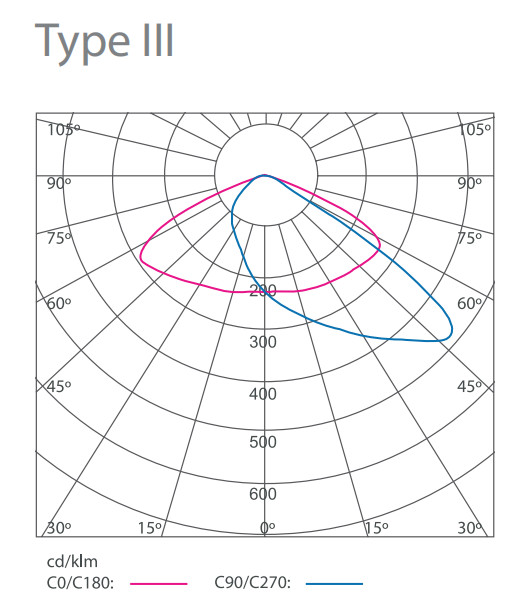

Photometric :

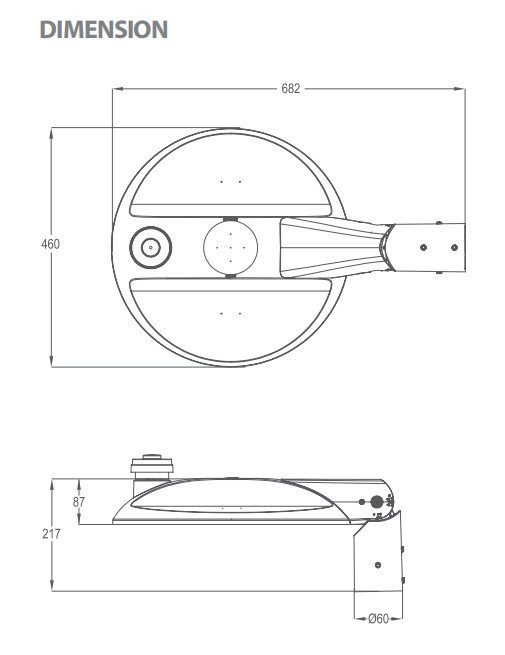

Dimension :
