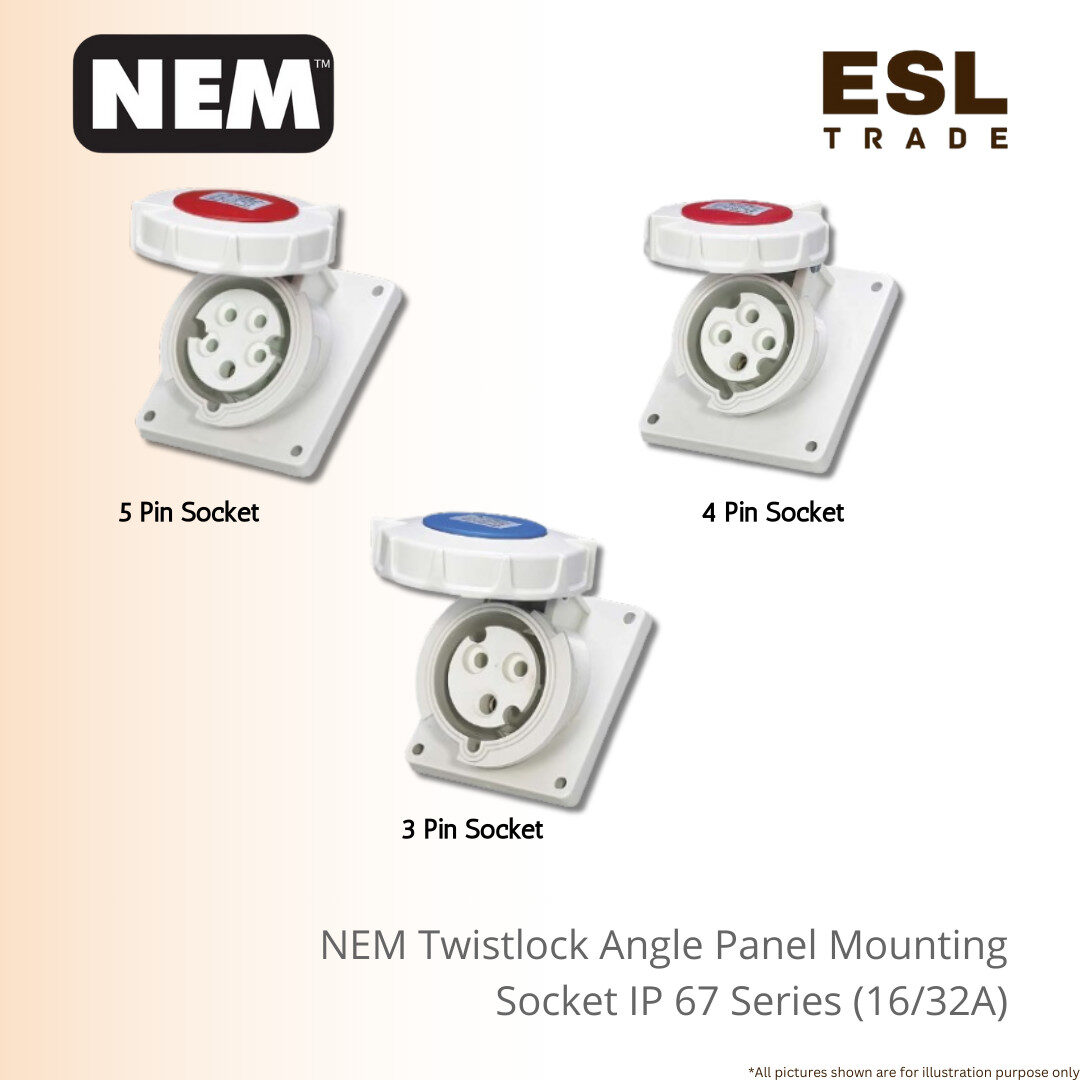

NEM Twistlock Angle Panel Mounting Socket 16A/32A – Excellent Heavy Duty Industrial Socket
The NEM Twistlock Angle Panel Mounting Socket is engineered to provide a secure and reliable electrical connection in the most challenging industrial and outdoor settings.
With its IP67 waterproof rating, this professional-grade socket offers unrivaled protection against water and dust ingress, making it ideal for use in wet or dirty environments.
The robust twistlock mechanism provides a durable and safe connection that won’t accidentally dislodge, ensuring continuous power supply and enhanced safety for both equipment and personnel.
Available in 3-pin, 4-pin, and 5-pin configurations with rated currents of 16A and 32A, this versatile socket series meets a wide range of power requirements.
Its angled design allows for flexible installation on panels, while its construction is designed to withstand heavy-duty use. The NEM Twistlock Angle Panel Mounting Socket is an essential component for machinery, control panels, and any application where a reliable, waterproof, and secure power connection is non-negotiable.
Product Specification:
- Product Type: 3 Pin Socket
| Model | Voltage (V) | Protection Degree | Earth Contact Position | Rated Current (A) | Pole | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | f (mm) | Cable Nominal Cross-Section Area (mm²) |
| AJ3131 | 220–240V | IP67 | 6h | 16 | 3 | 64 | 75 | 52 | 60 | 50 | 60 | 1–2.5 |
- Product Type: 4 Pin Socket
| Model | Voltage (V) | Protection Degree | Earth Contact Position | Rated Current (A) | Pole | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | f (mm) | Cable Nominal Cross-Section Area (mm²) |
| AJ3142 | 380–415V | IP67 | 6h | 16 | 4 | 93 | 101 | 77 | 85 | 73 | 86 | 1–2.5 |
| AJ3241 | 380–415V | IP67 | 6h | 32 | 4 | 93 | 101 | 77 | 85 | 73 | 86 | 2.5–6 |
- Product Type: 5 Pin Socket
| Model | Voltage (V) | Protection Degree | Earth Contact Position | Rated Current (A) | Pole | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | f (mm) | Cable Nominal Cross-Section Area (mm²) |
| AJ3152 | 220–380V | IP67 | 6h | 16 | 5 | 93 | 101 | 77 | 85 | 73 | 86 | 1–2.5 |
| AJ3251 | 240–415V | IP67 | 6h | 32 | 5 | 93 | 101 | 77 | 85 | 73 | 86 | 2.5–6 |
