Description
NEM Twistlock IP Rating IP67 Coupler GEN 1 Reliable Industrial Power Socket
The NEM Twistlock IP67 Coupler GEN 1 is engineered to provide a secure and reliable electrical connection in the most challenging industrial and outdoor settings.
With its IP67 waterproof rating, this professional-grade coupler offers unrivaled protection against water and dust ingress, making it ideal for use in wet or dirty environments.
The robust twistlock mechanism provides a durable and safe connection that won’t accidentally dislodge, ensuring continuous power supply and enhanced safety for both equipment and personnel.

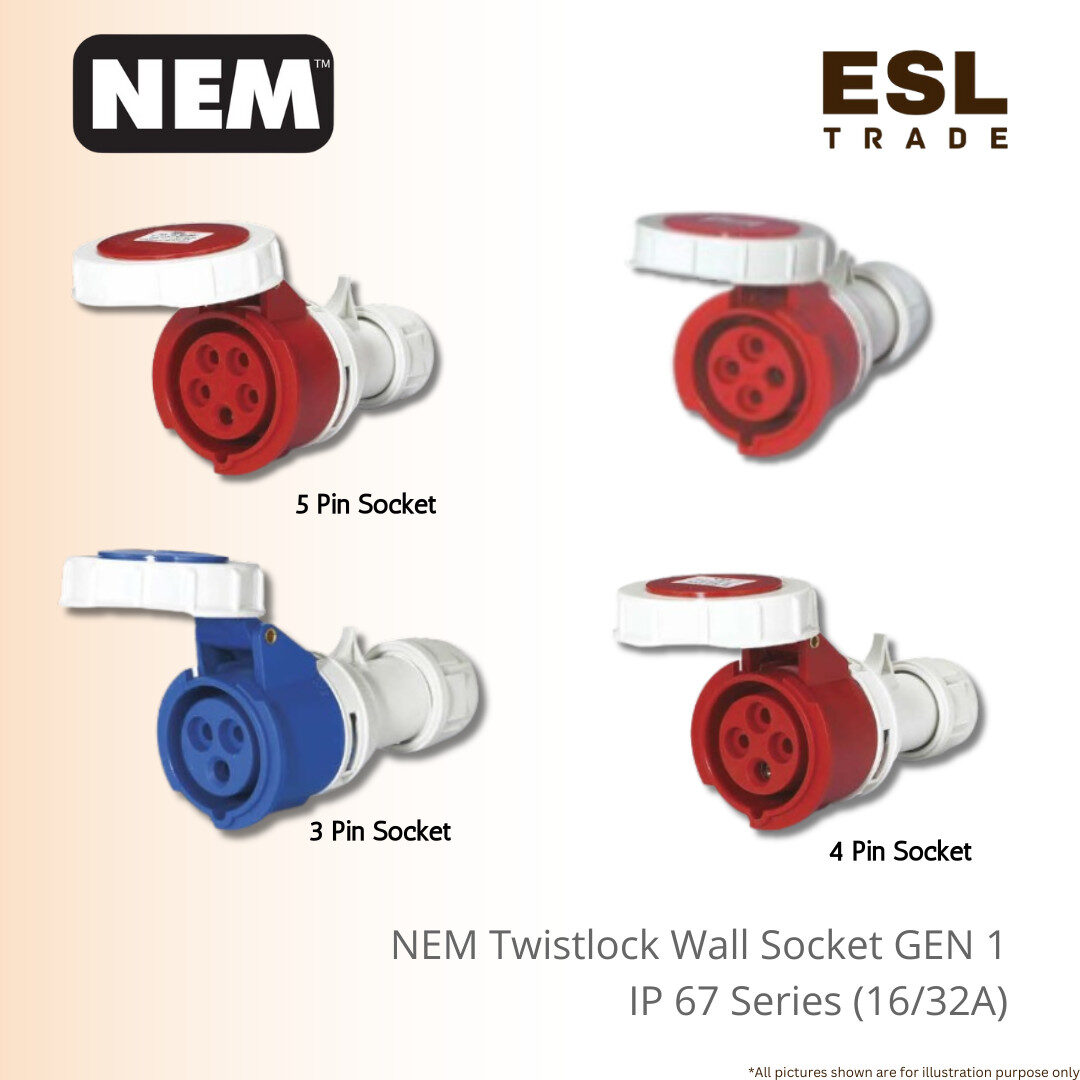

Available in 3-pin (220-240V), 4-pin (380-415V), and 5-pin (240-415V) configurations with rated currents of 16A and 32A, this versatile socket series meets a wide range of power requirements.
Its construction is designed to withstand heavy-duty use, with a high-quality housing and precise dimensions that ensure a perfect fit.
The NEM Twistlock IP67 Coupler GEN 1 is an essential component for machinery, construction sites, marinas, and any application where a reliable, waterproof, and secure power connection is non-negotiable.
Specification :
- Product Type : 3 Pin Socket

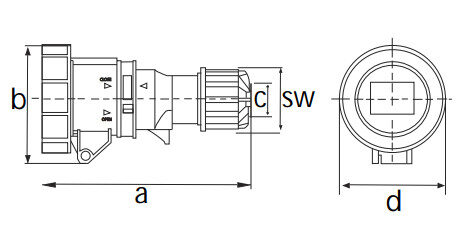

| Model | Voltage (V) | Protection Degree | Earth Contact Position | Rated Current (A) | Pole | a (mm) | b (mm) | c (mm) | d (mm) | sw (mm) | Cable Nominal Cross-Section Area (mm²) |
| TC2132 | 220–240 | IP67 | 6h | 16 | 2 | 141 | 78 | 6–15 | 71 | 44 | 1–2.5 |
| TC2232 | 220–240 | IP67 | 6h | 32 | 2 | 172 | 97 | 10–20 | 93 | 54 | 2.5–6 |
- Product Type : 4 Pin Socket
| Model | Voltage (V) | Protection Degree | Earth Contact Position | Rated Current (A) | Pole | a (mm) | b (mm) | c (mm) | d (mm) | sw (mm) | Cable Nominal Cross-Section Area (mm²) |

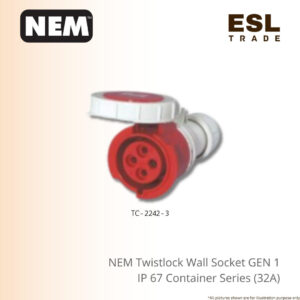

| TC2142 | 380–415 | IP67 | 6h | 16 | 3 | 146 | 85 | 6–15 | 80 | 44 | 1–2.5 |
| TC2242 | 380–415 | IP67 | 6h | 32 | 3 | 172 | 97 | 10–20 | 93 | 54 | 2.5–6 |
- Product Type : 5 Pin Socket
| Model | Voltage (V) | Protection Degree | Earth Contact Position | Rated Current (A) | Pole | a (mm) | b (mm) | c (mm) | d (mm) | sw (mm) | Cable Nominal Cross-Section Area (mm²) |
| TC2152 | 380–415 | IP67 | 6h | 16 | 4 | 155 | 93 | 6–15 | 85 | 44 | 1–2.5 |
| TC2252 | 240–415 | IP67 | 6h | 32 | 4 | 181 | 104 | 10–20 | 100 | 54 | 2.5–6 |
