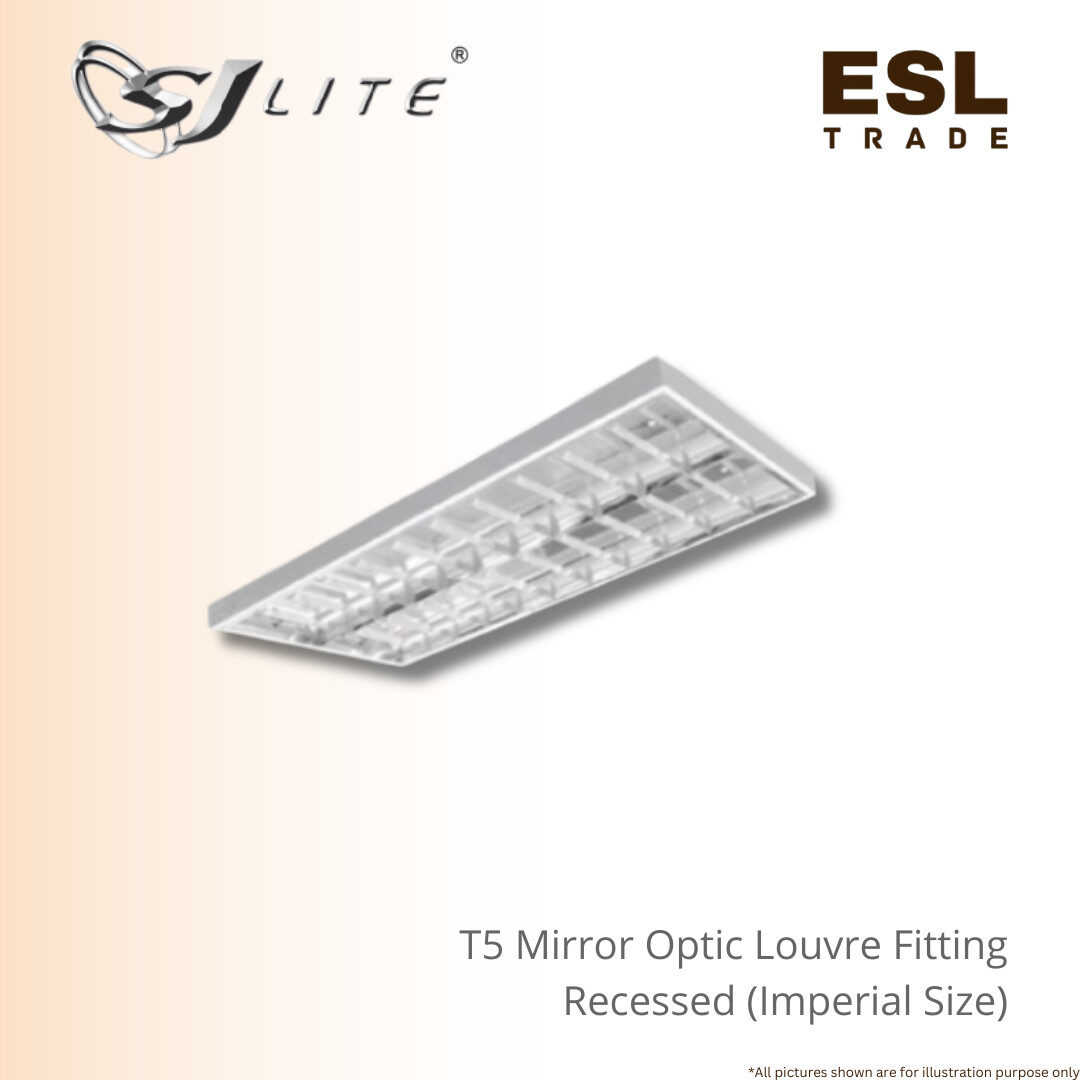

SJLITE T5 Mirror Optic Louvre Fitting (Recessed) SRM Series (Imperial Size) c/w TL5 Tube

Description

T5 Mirror Optic Louvre Fitting | Recessed T-Bar Ceiling Light

Looking for an energy-efficient lighting solution for your office or supermarket? The SJLITE T5 Mirror Optic Louvre Fitting is a recessed light designed for easy installation in imperial exposed T-bar ceilings. This high-gloss white luminaire features an anodized aluminum mirror optic louvre with a Christmas profile for excellent light distribution and reduced glare. Our T5 fittings are built with a heavy gauge sheet steel body and include an electronic ballast for a power factor of 0.95. They are compatible with T5 fluorescent lamps in various wattages (14W, 28W) and are available in multiple lamp configurations.

Designed for recess imperial exposed T-bar ceiling mounting with single parabolic mirror optic louvre with christmas profile cross blades. Louvres reflection by means of slide lock set and can be lowered and hang from either side. Mainly used for general lighting in offices, supermarkets and complexes.

What is a T5 light fixture?

A T5 light fixture is a type of fluorescent light fixture that uses T5 lamps, which are known for their high efficiency and slim profile. They are commonly used in commercial and industrial settings for general lighting.

What is a mirror optic louvre?

A mirror optic louvre is a grid-like structure within a light fixture that is highly reflective. It is designed to control and direct light, minimizing glare and creating a more comfortable lighting environment.

Technical Data

Body: Made of heavy gauge sheet steel.
Louvers: Anodised aluminium in either specular, semi specular or matt with profile cross blades.
Paintwork: Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.
Light Source: Fluorescent T5 lamp of 14W, 28W.
Electrical Data: 240V, 50Hz, Power factor 0,95.
Wire: HR 105° C.
Ballast: Electronic Ballast.
Lampholder: Moulded from Polycarbonate Material.
Optional components: Fused terminal block/Emergency packs.

Model Number: SRM 214 (1×2)
Number of Lamp: 2X14W
Dimension: (L) 600mm x (W) 302mm x (H) 55mm

Model Number: SRM 214
Number of Lamp: 2X14W
Dimension: (L) 600mm x (W) 600mm x (H) 55mm

Model Number: SRM 314
Number of Lamp: 3X14W
Dimension: (L) 600mm x (W) 600mm x (H) 55mm

Model Number: SRM 414
Number of Lamp: 4X14W
Dimension: (L) 600mm x (W) 600mm x (H) 55mm

Model Number: SRM 128
Number of Lamp: 1X28W
Dimension: (L) 1210mm x (W) 302mm x (H) 55 mm

Model Number: SRM 228
Number of Lamp: 2X28W
Dimension: (L) 1210mm x (W) 600mm x (H) 55mm

Model Number: SRM 228 (1×4)
Number of Lamp: 2X28W
Dimension: (L) 1210mm x (W) 302mm x (H) 55mm

Model Number: SRM 328
Number of Lamp: 3X28W
Dimension: (L) 1210mm x (W) 600mm x (H) 55mm

Model Number: SRM 428
Number of Lamp: 4X28W
Dimension: (L) 1210mm x (W) 600mm x (H) 55mm
