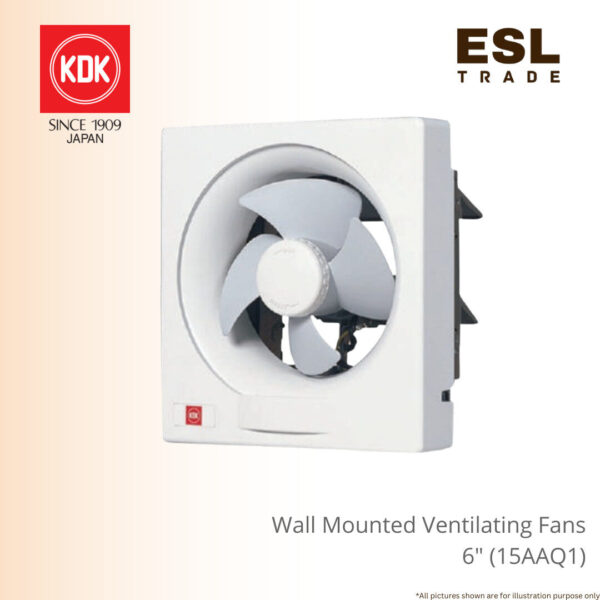

KDK 15AAQ1 6″ Wall-Mounted Ventilating Fan – Superb High Performance

Description

KDK 15AAQ1 6″ Wall-Mounted Ventilating Fan – Superb High Performance

The KDK 15AAQ1 is a high-performance, 6-inch wall-mounted ventilating fan designed to provide superior air circulation in residential spaces like bathrooms, toilets, and kitchens.

Its efficient condenser motor ensures durability and a powerful exhaust capacity (170 CFM). The fan is specifically engineered with an advanced blade design to minimize noise, operating at a whisper-quiet 31 dB.

With a low power consumption of just 15W, it is an energy-efficient solution for maintaining a fresh and odor-free environment.

The fan is equipped with a thermal safety fuse for enhanced protection and comes with all necessary accessories for simple and easy installation. Its sleek and compact design includes a front louver for safety and a pipe-hood that helps prevent rain penetration and moisture damage, keeping your walls clean.

SPECIFICATION

• Model: 15AAQ1
• Dimension: 6″/15cm
• RPM (W): 1480
• CFM: 170
• Motor (W): 15
• Motor Type : Condenser
• Motor Rating: 220–240V, 50Hz
• Noise Level (dB): 31
• Net Weight (kg): 1.4

• Detail Dimension (mm)
  • A : Ø150
  • B : 240
  • C : 195
  • D : 254
  • E : 170
  • F : 75
  • G : 55
  • H : 54
  • I : 52
  • J : –
  • K : –
