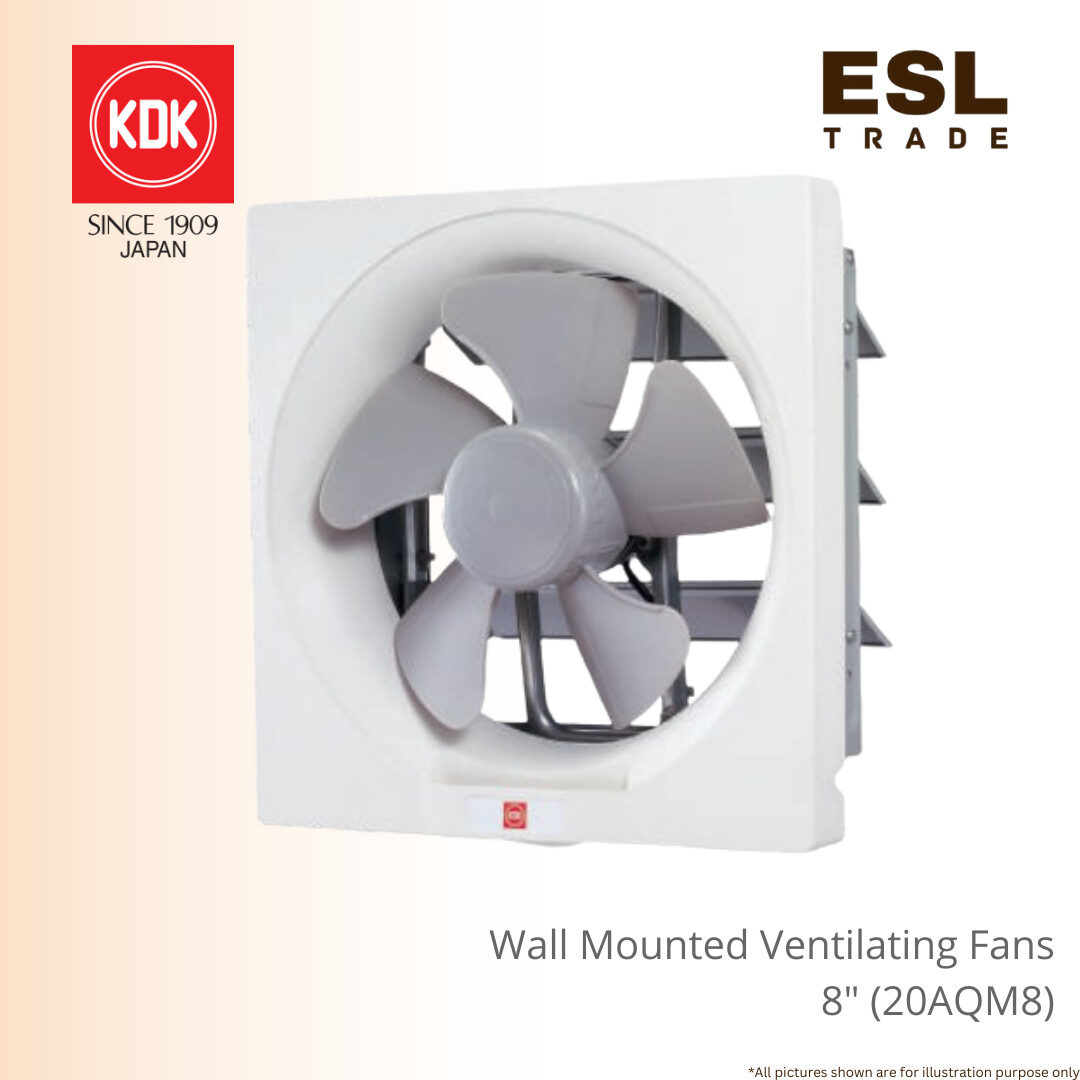

KDK 20AQM8 8″ Wall-Mounted Ventilating Fan – Superb High Performance

Description

KDK 20AQM8 8″ Wall-Mounted Ventilating Fan – Superb High Performance

The KDK 20AQM8 is a superb high-performance, 8-inch wall-mounted ventilating fan designed for powerful air circulation in larger residential spaces like kitchens, living rooms, and large bathrooms.

Its robust 4-pole condenser motor ensures durability and an impressive exhaust capacity of 318 CFM, quickly eliminating moisture, smoke, and odors. The fan is engineered to maintain a low noise level of just 37 dB, providing a powerful yet quiet ventilation solution.

With an energy-efficient design and a power consumption of 14.9-18.3W, it’s an economical choice for maintaining a fresh atmosphere. The fan includes a thermal safety fuse for enhanced protection and comes with all necessary accessories for straightforward installation. Its sleek, compact design features a front louver for safety and a pipe-hood to prevent rain penetration, keeping your walls clean and dry

SPECIFICATION

• Model: 20AQM8
• Dimension: 8″/20 cm
• RPM (W): 1109–1301
• CFM: 318
• Motor (W): 14.9–18.3
• Motor HP : 0.02
• Motor Type : 4 Pole Condenser
• Motor Rating: 220–240V, 50Hz
• Noise Level (dB): 37
• Net Weight (kg): 2.3

• Detail Dimension (mm)
  • A : Ø200
  • B : 300
  • C : 310
  • D : 160
  • E : 150
  • F : 260
  • G : 240
  • H : 83
  • I : 45
  • J : 68
  • K : 140
