Description

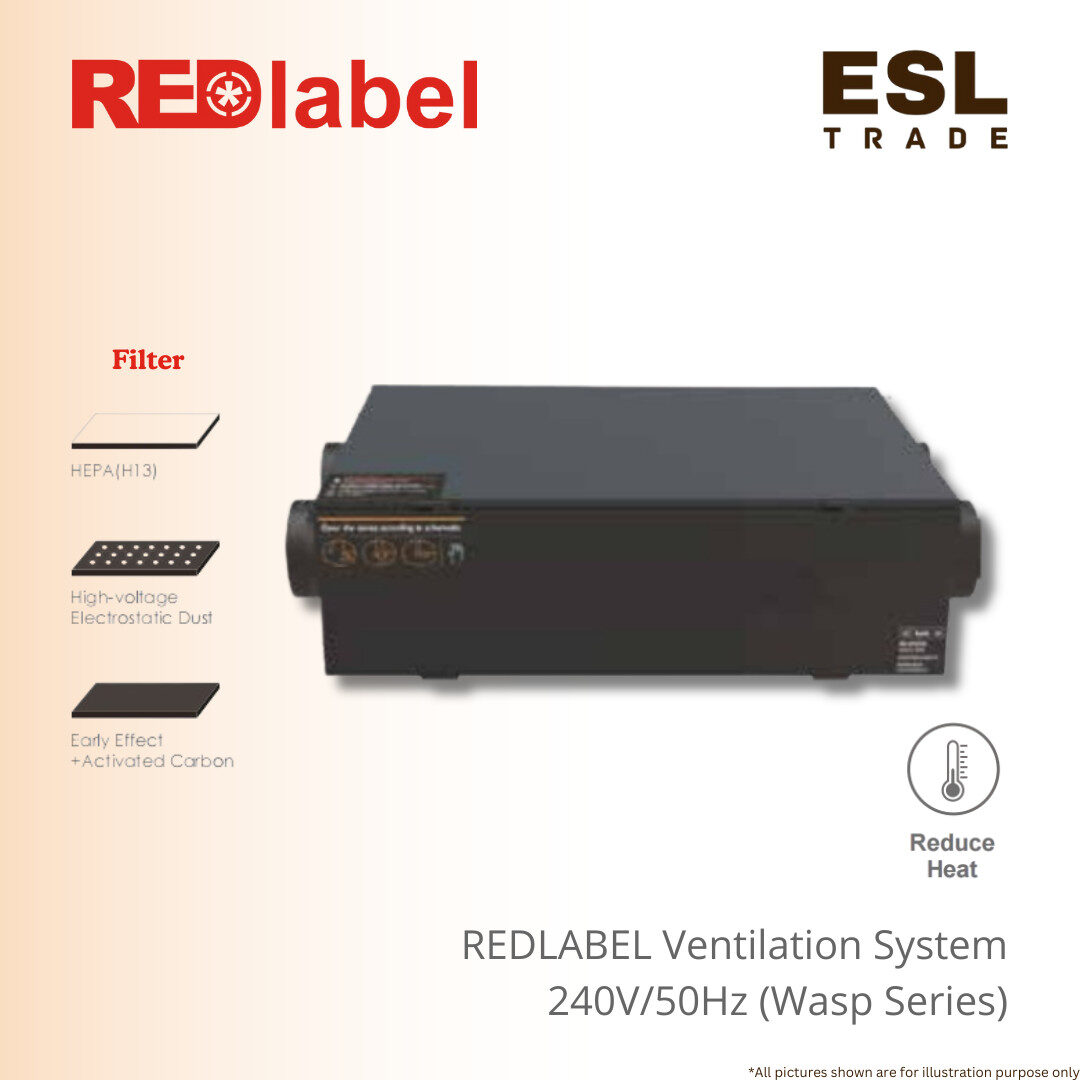

REDLABEL Ventilation System 220-240V/50Hz Wasp Series – Heavy Duty High-Airflow Duct Fan
The REDLABEL Wasp Series Ventilation System is a professional-grade solution engineered for high-volume air exchange in commercial, industrial, and large-scale residential applications.
This heavy-duty duct fan is designed to provide powerful performance, with the Wasp 500 model delivering 500 m³/h and the Wasp 1000 model offering a massive 1000 m³/h airflow.
Despite its high output, the Wasp Series maintains relatively quiet operation, with noise levels of 30 dB(A) and 36 dB(A), respectively, ensuring that high-performance doesn’t compromise the working environment.
The system generates high air pressure (up to 170 Pa), making it highly efficient for long or complex duct runs. Operating on 220–240V, the REDLABEL Wasp Ventilation System is built for durability and long-term reliability in challenging conditions, making it the definitive choice for professionals seeking an industrial-strength fan for large-area air purification and temperature control.
Specification :
| Parameter | Wasp 500 | Wasp 1000 |
| Voltage | 220–240V / 50Hz | 220–240V / 50Hz |
| Air Flow (m³/h) | 500 | 1000 |
| Power (W) | 120–128 | 260–266 |
| Air Pressure (Pa) | 160 | 170 |
| Noise (dB(A)) | 30 | 36 |
| Size (W × D × H mm) | 845 × 260 × 1110 | 809 × 342 × 1143 |
| Output Size (Ømm) | 200 | 200 |
| Weight (kg) | 45 | 52 |

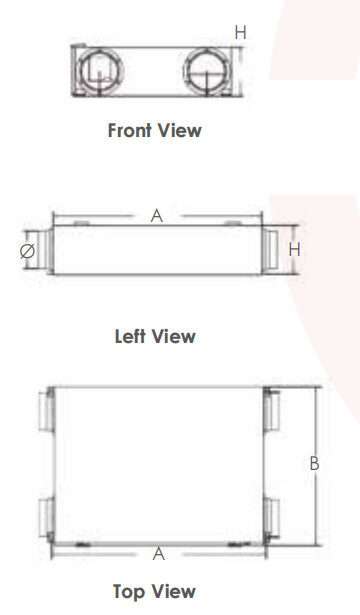

Dimension :
